LN109-PRMQS (1994)

Toyota Hilux

Production Aug 1994 - Aug 1997
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )SSR,SSRX

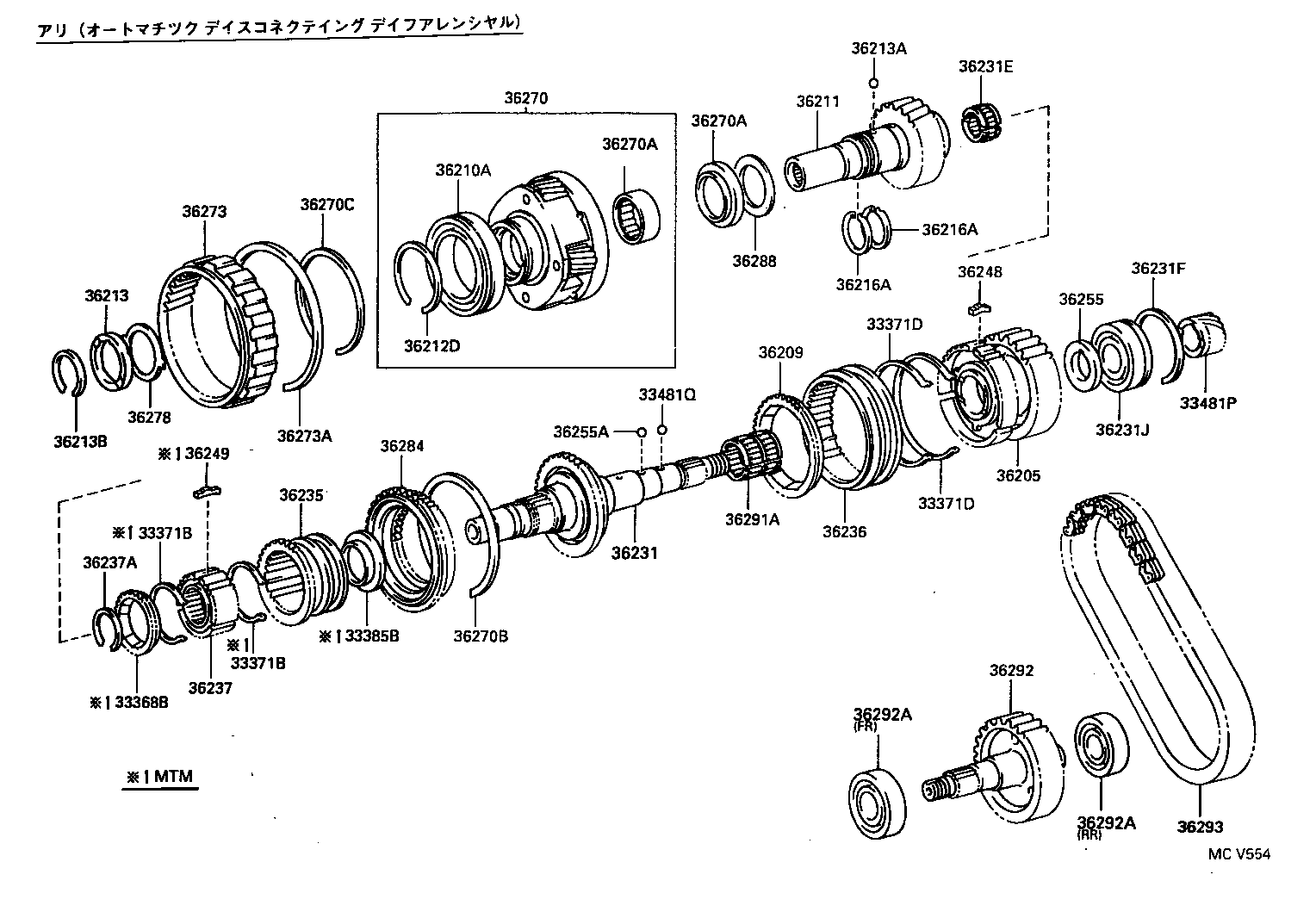

Click highlighted areas on diagram

diagram 33368B 33371B 33371B 33371D 33371D 33385B 33481P 33481Q 36205 36209 36210A 36211 36212D 36213 36213A 36213B 36216A 36216A 36231 36231E 36231F 36231J 36235 36236 36237 36237A 36248 36249 36255 36255A 36270 36270A 36270A 36270B 36270C 36273 36273A 36278 36284 36288 36291A 36292 36292A 36292A 36293
Part # Description Qty Price
36205 - SPROCKET SUB-ASSY, TRANSFER DRIVE
36205-35090

LN108..SSRX;LN107,109,112,YN107..SSR,SSRX

 1
36209 - RING SET, TRANSFER SYNCHRONIZER
36209-35020

LN108..SSRX;LN107,109,112,YN107..SSR,SSRX

 1
36211 - SHAFT, TRANSFER INPUT
36201-35070

LN107,109,YN107..SSR,SSRX

 1
36213 - STOPPER, TRANSFER INPUT GEAR
36213-35020

LN107,108,109,112,YN107..SSR,SSRX

 1
36213A - BALL (FOR TRANSFER INPUT GEAR STOPPER)
90360-05012

LN107,108,109,112,YN107..SSR,SSRX

 1
36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1
36216-35011

LN107,108,109,112,YN107..SSR,SSRX

 2
36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1
36216-35011

LN107,108,109,112,YN107..SSR,SSRX

 2
36231 - SHAFT, TRANSFER OUTPUT, REAR
36202-35040

LN108,109,112..SSRX

 1
36236 - SLEEVE, FRONT DRIVE CLUTCH
36236-35050

LN108..SSRX;LN107,109,112,YN107..SSR,SSRX

 1
36237 - HUB, TRANSFER CLUTCH
36237-35030

VZN130..5F;KZN130,LN108,109,112

 1
36248 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1
36248-35030

LN108..SSRX;LN107,109,112,YN107..SSR,SSRX

 3
36249 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2
36249-35030

LN107,109,YN107..SSR,SSRX

 3
36255A - BALL (FOR TRANSFER OUTPUT SHAFT SPACER)
90360-05012

LN108,109,112

 1
36270 - GEAR ASSY, TRANSFER LOW PLANETARY
36270-28030

VZN130..5F;KZN130,LN107,108,109,112,YN107..SSR,SSRX

 1
36270-35900

LN107,108,109,112,YN107..SSR,SSRX

 1
36278 - WASHER, MANUAL TRANSFER PLANETARY CARRIER
36278-35010

LN107,108,109,112,YN107..SSR,SSRX

厚さ=0.95−1.05

 1
36284 - PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
36284-35021

LN107,108,109,112,YN107..SSR,SSRX

 1
36293 - CHAIN, TRANSFER FRONT DRIVE
36293-35031

LN107,108,109,112,YN107..SSR,SSRX

 1
