LN109-PRMQS (1994)

Toyota Hilux

Production Aug 1994 - Aug 1997
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )SSR,SSRX

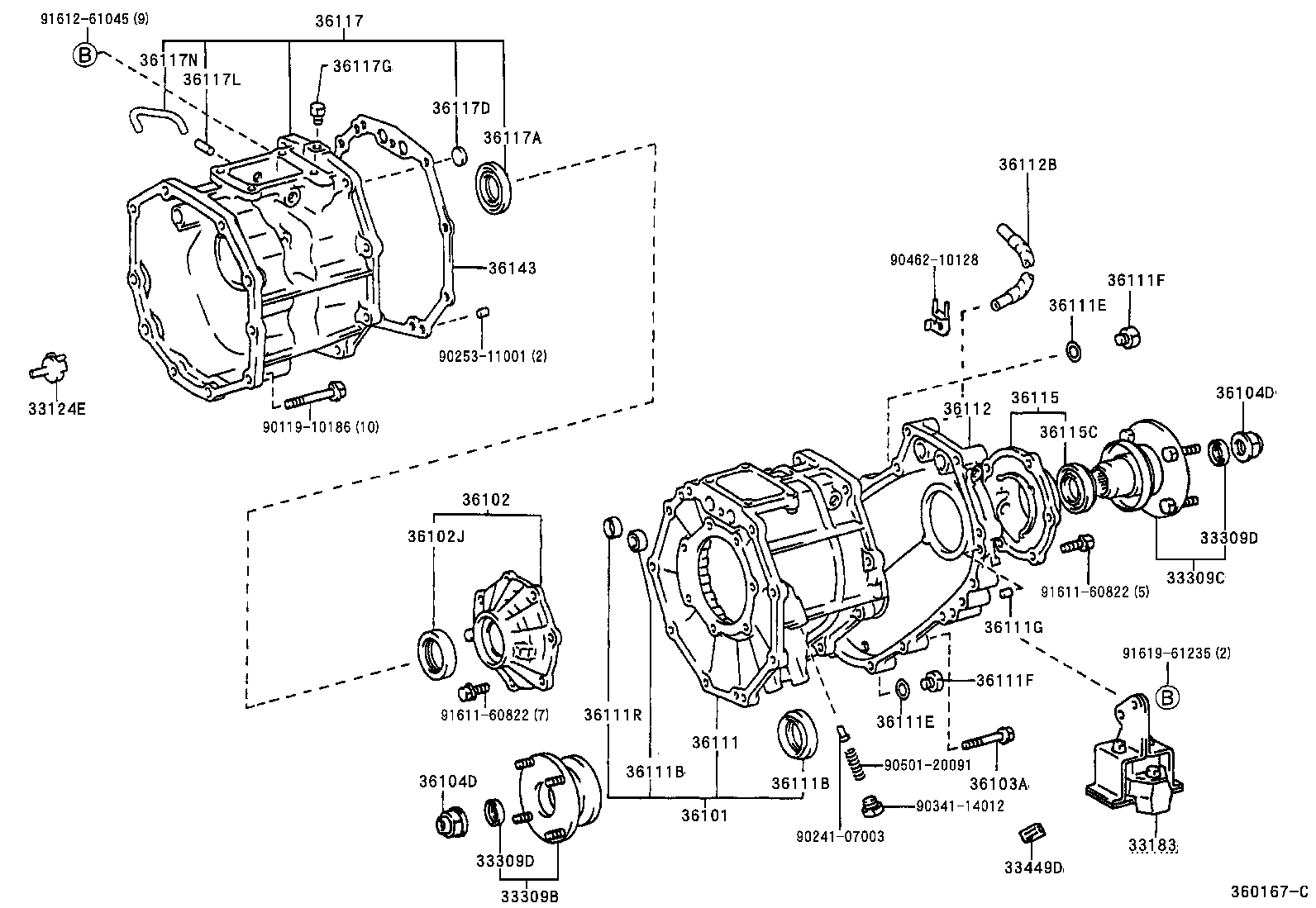

Click highlighted areas on diagram

diagram 33124E 33183 33309B 33309C 33309D 33309D 33449D 36101 36102 36102J 36103A 36104D 36104D 36111 36111B 36111B 36111E 36111E 36111F 36111F 36111G 36111R 36112 36112B 36115 36115C 36117 36117A 36117D 36117G 36117L 36117N 36143 9011910186 9024107003 9025311001 9034114012 9046210128 9050120091 9161160822 9161160822 9161261045 9161961235
Part # Description Qty Price
33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35100

LN108,109,112

 1
33449D - MAGNET (FOR TRANSFER CASE)
33449-32020

LN107,108,109,112,YN107..SSR,SSRX

 1
36101 - CASE SUB-ASSY, TRANSFER
36101-35130

LN109,112;LN107,108,YN107..SSR

 1
36102 - COVER SUB-ASSY, TRANSFER CASE
36102-35050

LN107,108,109,112,YN107..SSR,SSRX

 1
36102-35012

VZN130..5F;KZN130,LN107,108,109,112,YN107..SSR,SSRX

 1
36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER)
90311-40021

VZN130..5F;KZN130,LN107,108,109,112,YN107..SSR,SSRX

 1
36103A - BOLT (FOR TRANSFER CASE)
90119-08A28

LN107,108,109,112,YN107..SSR,SSRX

*8−1.25PX55−30

 12
36111 - CASE, TRANSFER
36111-35080

LN107,108,109,112,YN107..SSR,SSRX

 1
36111F - PLUG (FOR TRANSFER CASE)
90341-18057

VZN130,YN130..5F;KZN130,LN10#,112,13#,YN10#

DRAIN

 1
90341-18006

LN108..SSRX;LN107,109,112,YN107..SSR,SSRX

 3
36111F - PLUG (FOR TRANSFER CASE)
90341-18057

VZN130,YN130..5F;KZN130,LN10#,112,13#,YN10#

DRAIN

 1
90341-18006

LN108..SSRX;LN107,109,112,YN107..SSR,SSRX

 3
36111R - PLUG, TIGHT (FOR TRANSFER CASE)
90331-25005

LN107,108,109,112,YN107..SSR,SSRX

 1
36112 - CASE, TRANSFER, REAR
36112-35080

LN108..SSRX;LN107,109,112,YN107..SSR,SSRX

 1
36117 - ADAPTER, TRANSFER
36107-35091

LN10#,YN10#

 1
Common parts
90119-10186
90241-07003
90253-11001
90341-14012
90462-10128
90501-20091
91611-60822
91612-61045
91619-61235
