LN106-TRMSS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1997
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

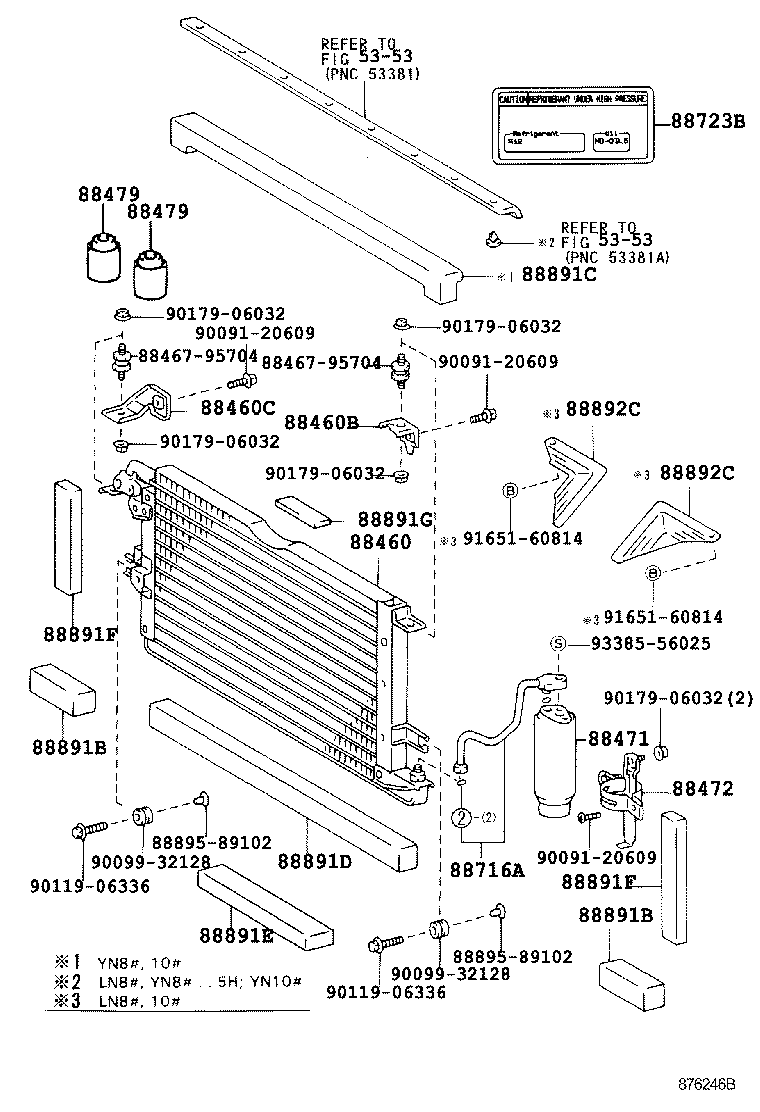

ILLUST NO. 1 OF 3(8809- )LN10#,112,8#,YN10#,8#

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ & ﾚｼ-ﾊﾞ

diagram 5353 5353 88460 88460B 88460C 8846795704 8846795704 88471 88472 88479 88479 88716A 88723B 88891B 88891B 88891C 88891D 88891E 88891F 88891F 88891G 88892C 88892C 8889589102 8889589102 9009120609 9009120609 9009120609 9009932128 9009932128 9011906336 9011906336 9017906032 9017906032 9017906032 9017906032 9017906032 9165160814 9165160814 9338556025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-35130

LN10#,8#,YN10#,8#

 1
88460-35150

LN106,107,109,8#,YN107,8#

 1
88460-89115

LN10#,8#,YN10#,8#

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-89120

LN10#,112,8#,YN10#,8#

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-89121

LN10#,112,8#,YN10#,8#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040

LN130..SSRX;LN10#,131,8#,VZN130,YN10#,8#

 1
88471-16040

LN10#,8#,YN10#,8#

 1
88471-20050

LN10#,112,8#,YN10#,8#

 1
88471-16040

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89110

LN10#,112,8#,YN10#,8#

 1
88472-89110

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

LN130..4FC;LN10#,8#,YN10#,8#

250G

 3
90986-02008

LN100,106,107,109,8#,YN10#,80,85..CBR,DSL

200G

 2
90986-02004

LN130..4FC..SSRX;LN10#,8#,YN10#,8#

250G

 3
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

LN130..4FC;LN10#,8#,YN10#,8#

250G

 3
90986-02008

LN100,106,107,109,8#,YN10#,80,85..CBR,DSL

200G

 2
90986-02004

LN130..4FC..SSRX;LN10#,8#,YN10#,8#

250G

 3
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-89163

LN10#,8#,YN10#,8#

 1
88716-35230

LN10#,112,8#,YN10#,8#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20010

LN10#,8#,YN10#,8#

 1
88723-20030

LN108,109,112,VZN130;KZN130,LN100,106,107,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

 1
88891B - PACKING B (FOR COOLER)
88578-89103

LN130..SSRX;LN10#,112,131,8#,YN10#,8#

 2
88578-89103

LN10#,13#,8#,YN10#,130,8#

 2
88891B - PACKING B (FOR COOLER)
88578-89103

LN130..SSRX;LN10#,112,131,8#,YN10#,8#

 2
88578-89103

LN10#,13#,8#,YN10#,130,8#

 2
88891C - PACKING C (FOR COOLER)
88578-89118

LN130..5F;LN10#,112,131,YN10#,130,8#

 1
88891D - PACKING D (FOR COOLER)
88578-89127

LN100,106,107,109,8#,YN10#,8#

 1
88891E - PACKING E (FOR COOLER)
88578-89120

LN10#

 1
88578-89122

LN100,106,107,108,112

 1
88891F - PACKING F (FOR COOLER)
88578-89123

LN100,106,107,109,8#,YN10#,8#

右側

 1
88578-89122

LN100,106,107,109,8#,YN10#,8#

左側

 1
88578-89122

LN106,107,109,8#,YN107,8#

 2
88891F - PACKING F (FOR COOLER)
88578-89123

LN100,106,107,109,8#,YN10#,8#

右側

 1
88578-89122

LN100,106,107,109,8#,YN10#,8#

左側

 1
88578-89122

LN106,107,109,8#,YN107,8#

 2
88891G - PACKING G (FOR COOLER)
88578-89107

LN85,YN130;LN10#,13#,80,YN10#,8#..MTM

 1
88578-89107

LN130..5F..SSRX;LN10#,112,131,8#,YN10#,8#

 1
88892C - PLATE, CONDENSER, NO.1
88892-89114

LN10#,8#

右側

 1
88892-89115

LN10#,8#

左側

 1
88892C - PLATE, CONDENSER, NO.1
88892-89114

LN10#,8#

右側

 1
88892-89115

LN10#,8#

左側

 1
Common parts
88467-95704
88895-89102
90091-20609
90099-32128
90119-06336
90179-06032
91651-60814
93385-56025
Linked diagrams
5353

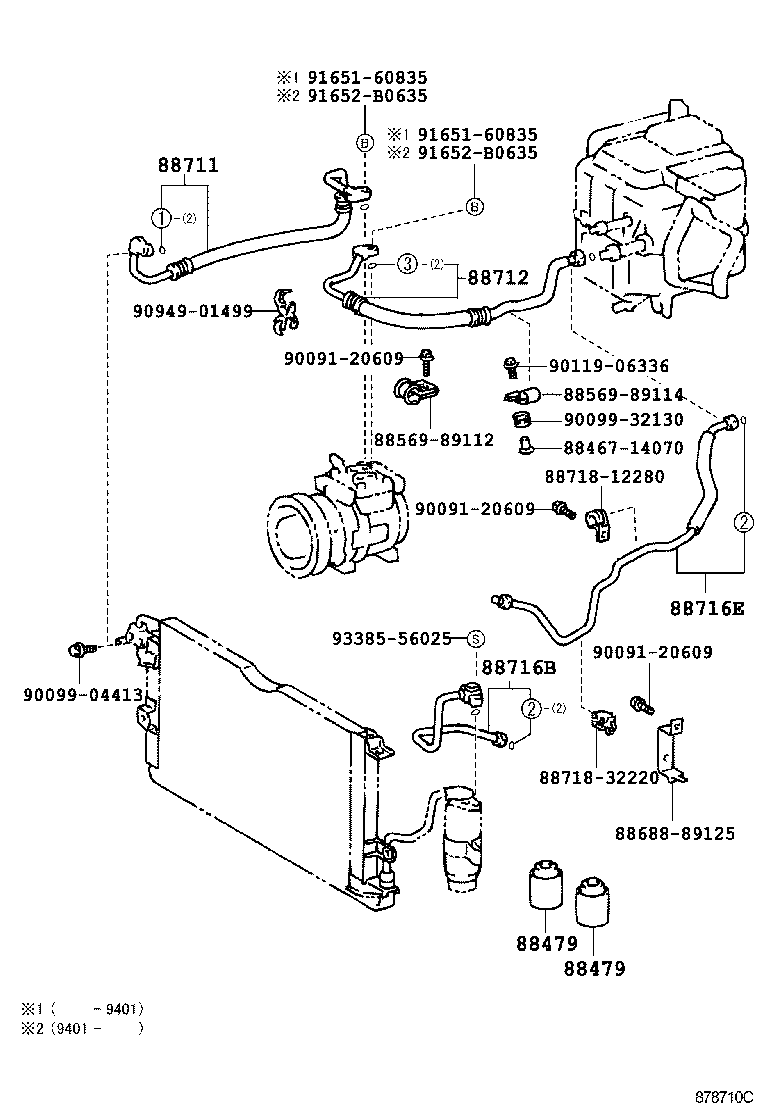

ILLUST NO. 2 OF 3(8809- )LN100,106,107,109,8#..MTM

Click highlighted areas on diagram

ﾎ-ｽ & ﾊﾟｲﾌﾟ

diagram 8846714070 88479 88479 8856989112 8856989114 8868889125 88711 88712 88716B 88716E 8871812280 8871832220 9009120609 9009120609 9009120609 9009904413 9009932130 9011906336 9094901499 9165160835 9165160835 91652B0635 91652B0635 9338556025
Part # Description Qty Price
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

LN130..4FC;LN10#,8#,YN10#,8#

250G

 3
90986-02008

LN100,106,107,109,8#,YN10#,80,85..CBR,DSL

200G

 2
90986-02004

LN130..4FC..SSRX;LN10#,8#,YN10#,8#

250G

 3
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

LN130..4FC;LN10#,8#,YN10#,8#

250G

 3
90986-02008

LN100,106,107,109,8#,YN10#,80,85..CBR,DSL

200G

 2
90986-02004

LN130..4FC..SSRX;LN10#,8#,YN10#,8#

250G

 3
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35100

LN10#,8#..MTM

 1
88711-89142

LN10#,8#..MTM

 1
88711-35320

LN100,106,107,109,8#..MTM

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35030

LN10#

 1
88712-89145

LN10#,8#

 1
88712-35180

LN10#,8#

 1
88712-35310

LN100,106,107,109,8#

 1
88712-35030

LN10#,8#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-89175

LN10#,13#,8#

 1
88716-35320

LN10#,112,8#

 1
88716-89175

LN10#,8#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89176

LN10#,8#

 1
88716-35310

LN10#,112,8#

 1
Common parts
88467-14070
88569-89112
88569-89114
88688-89125
88718-12280
88718-32220
90091-20609
90099-04413
90099-32130
90119-06336
90949-01499
91651-60835
91652-B0635
93385-56025

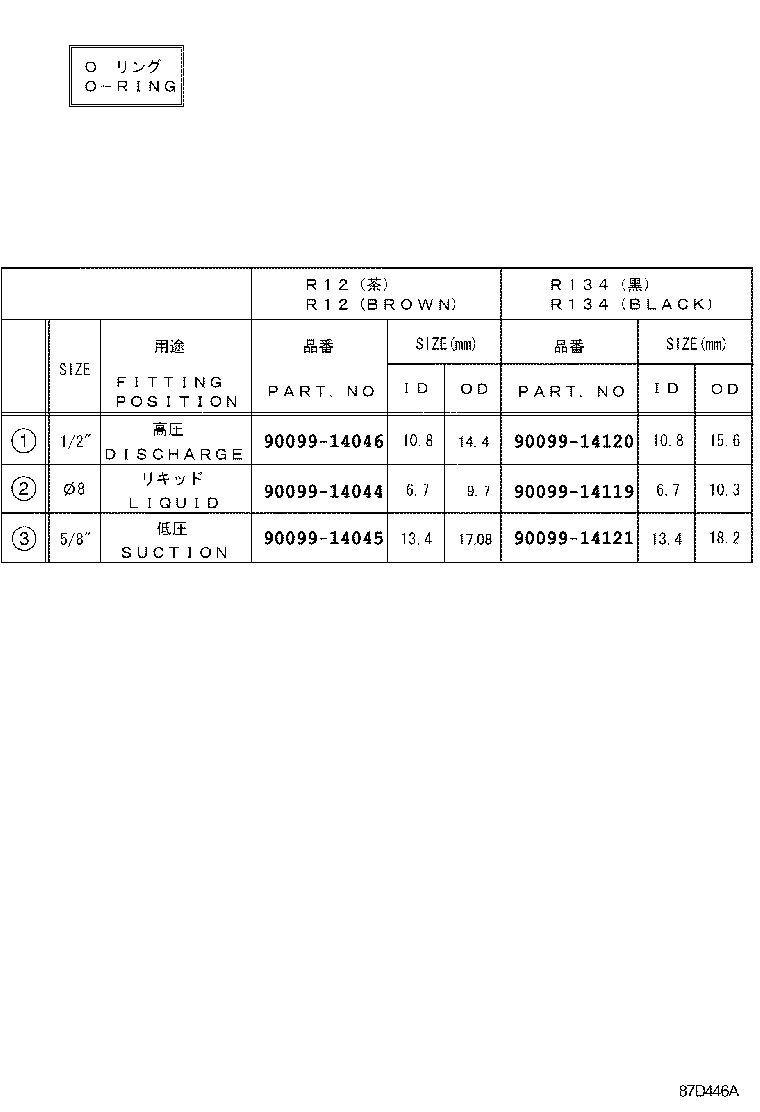

ILLUST NO. 3 OF 3(8809- )

Click highlighted areas on diagram

O ﾘﾝｸﾞ

diagram 9009914044 9009914045 9009914046 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14044
90099-14045
90099-14046
90099-14119
90099-14120
90099-14121
