LN106-TRMSS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1997
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

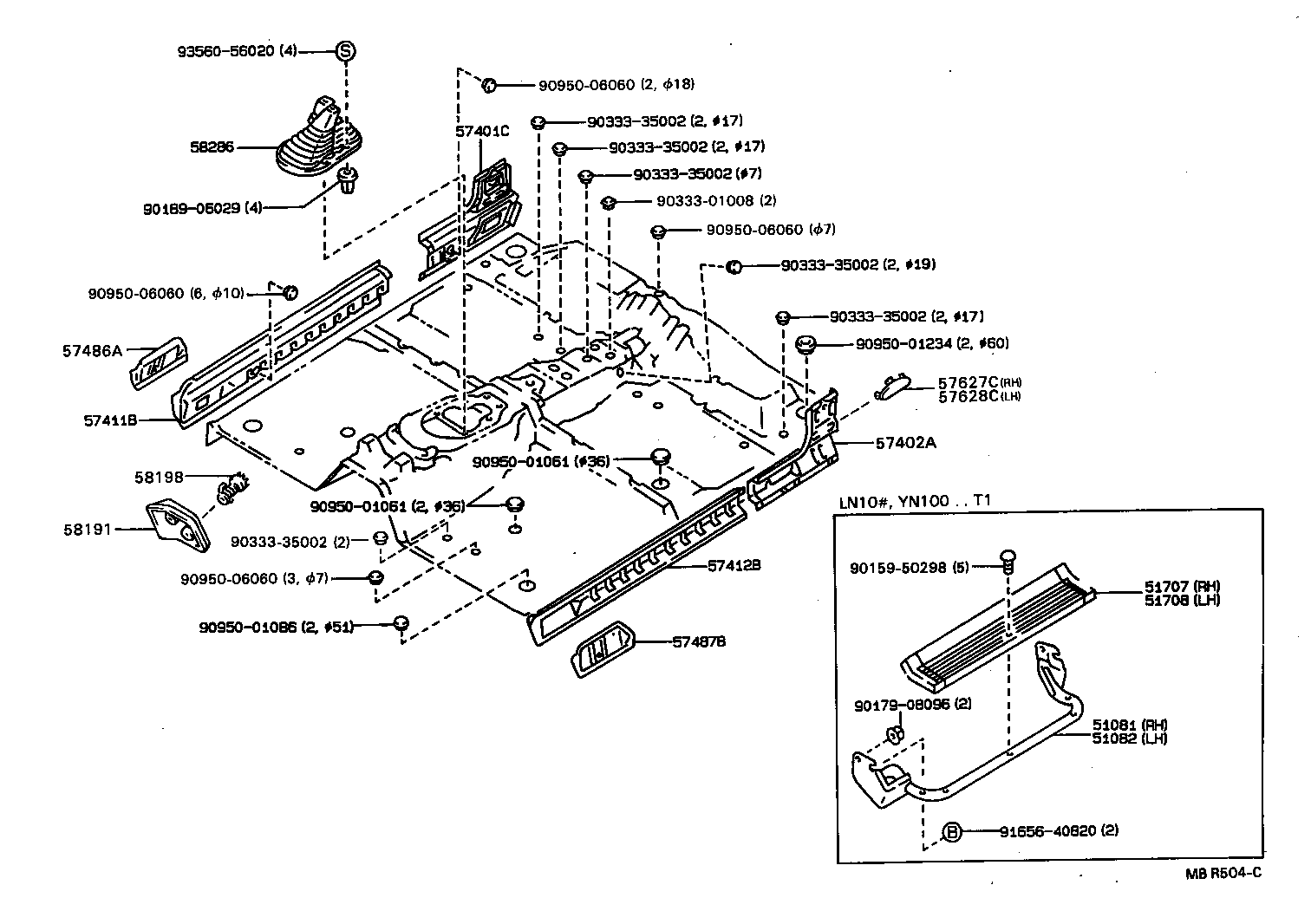

ILLUST NO. 1 OF 2(8809- )RCB

Click highlighted areas on diagram

diagram 51081 51082 51707 51708 57401C 57402A 57411B 57412B 57486A 57487B 57627C 57628C 58191 58198 58286 9015950298 9017908096 9018906029 9033301008 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9095001061 9095001061 9095001086 9095001234 9095006060 9095006060 9095006060 9095006060 9165640820 9356056020
Part # Description Qty Price
51081 - STAY SUB-ASSY, SIDE STEP, NO.1 RH
51081-89101

LN100,106,YN100..T1

 1
51082 - STAY SUB-ASSY, SIDE STEP, NO.1 LH
51082-89101

LN100,106,YN100..T1

 1
51707 - STEP SUB-ASSY, RH
51707-89104

LN10#,YN100..T1

 1
51083-35050

LN100,106,YN100

ｺｳｷ

 1
51083-35051

LN100,106,YN100

ｱﾙﾐ

 1
51770-35010

LN10#,YN100..T1

 1
51708 - STEP SUB-ASSY, LH
51770-35010

LN10#,YN100..T1

 1
51083-35051

LN100,106,YN100

ｱﾙﾐ

 1
51707-89104

LN10#,YN100..T1

 1
51083-35050

LN100,106,YN100

ｺｳｷ

 1
57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-89114

LN100,106,8#,YN100,8#..RCB

 1
57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-89114

LN100,106,8#,YN100,8#..RCB

 1
57411B - MEMBER, FLOOR SIDE, INNER RH
57411-35010

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
57411-89104

LN10#,13#,8#,YN10#,130,8#

 1
57412B - MEMBER, FLOOR SIDE, INNER LH
57412-89106

LN10#,13#,8#,YN10#,130,8#

 1
57412-35010

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57486-89104

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
57487B - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57487-89102

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
58191 - FOOTREST, FRONT FLOOR
58191-89103

LN10#,13#,85,YN10#,130,8#..SDX,SR,SSR

 1
58191-35010

KZN130,LN10#,112,13#,85,86,VZN130,YN10#,130,80,85,86..SDX,SR,SSR,SSRX

 1
58198 - CLIP, FOOTREST
58198-89102

KZN130,LN10#,112,13#,85,86,VZN130,YN10#,130,80,85,86..SDX,SR,SSR,SSRX

 2
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58280-89113

LN10#,YN10#

 1
58280-35040

KZN130,LN100,106,107,109,YN10#..5F

 1
Common parts
90159-50298
90179-08096
90189-06029
90333-01008
90333-35002
90950-01061
90950-01086
90950-01234
90950-06060
91656-40820
93560-56020

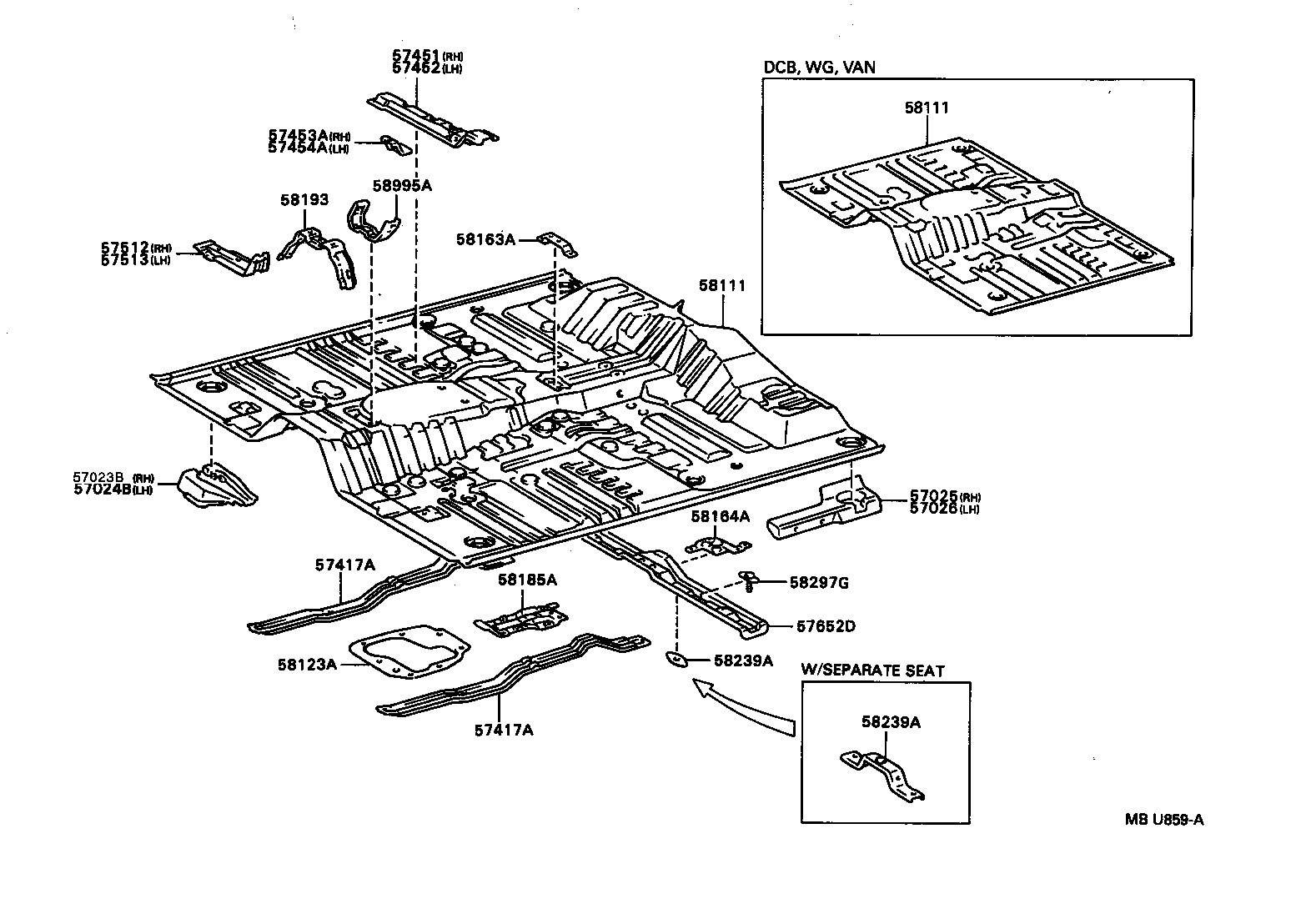

ILLUST NO. 2 OF 2(8912- )

Click highlighted areas on diagram

diagram 57023B 57024B 57025 57026 57417A 57417A 57451 57452 57453A 57454A 57512 57513 57652D 58111 58111 58123A 58163A 58164A 58185A 58193 58239A 58239A 58297G 58995A
Part # Description Qty Price
57023B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH
57023-89103

KZN130,LN10#,112,13#,VZN130,YN10#,130

 1
57024B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH
57024-89103

KZN130,LN10#,112,13#,VZN130,YN10#,130

 1
57025 - BRACKET SUB-ASSY, BODY MOUNTING, NO.3 RH
57025-89103

LN100,106,YN100..T1

 1
57026 - BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH
57026-89103

LN100,106,YN100..T1

 1
57417A - REINFORCEMENT, FRONT FLOOR UNDER
57417-89103

LN100,106,8#,YN100,8#..RCB

 2
57417A - REINFORCEMENT, FRONT FLOOR UNDER
57417-89103

LN100,106,8#,YN100,8#..RCB

 2
57451 - MEMBER, FRONT FLOOR CROSS
57451-89108

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
57452 - MEMBER, FRONT FLOOR CROSS, LH
57452-35010

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
57452-89105

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
57453A - REINFORCEMENT, FRONT FLOOR CROSS MEMBER, RH
57453-89101

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
57454A - REINFORCEMENT, FRONT FLOOR CROSS MEMBER, LH
57454-89101

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
57512 - REINFORCEMENT, FRONT FLOOR, RH
57512-89105

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
57513 - REINFORCEMENT, FRONT FLOOR, LH
57513-89104

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
57652D - MEMBER, REAR FLOOR CROSS, NO.1
57652-89119

LN100,106,YN100..T1..SR

 1
58111 - PAN, FRONT FLOOR
58111-89350

LN100,106,YN100..T1

 1
58111 - PAN, FRONT FLOOR
58111-89350

LN100,106,YN100..T1

 1
58163A - RETAINER, CONSOLE BOX MOUNTING, NO.1
58163-89101

LN85,YN86..4FC;VZN130,YN130..5F;KZN130,LN10#,112,13#,YN10#..SR,SSR,SSRX

 1
58163-89101

LN100,13#,85,YN100..4FC,5F;LN106,YN130..(RCB,WG)..5F..(SR,SSR)

 1
58164A - RETAINER, CONSOLE BOX MOUNTING
58164-89101

LN100,106,YN100..T1..SR

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58193-89102

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
58193-35010

KZN130,LN10#,112,8#,VZN130,YN10#,8#

 1
58239A - PLATE, BELT ANCHOR NUT
58239-89112

LN106..T1..SR;LN100,107,108,109,112,YN100,107

 1
58239A - PLATE, BELT ANCHOR NUT
58239-89112

LN106..T1..SR;LN100,107,108,109,112,YN100,107

 1
58297G - RETAINER, FLOOR CLAMP
58297-89108

LN10#,8#,YN100,8#..RCB

 1
58297-89108

KZN130,LN100,106,13#,8#,VZN130,YN100,8#..RCB,VAN,WG

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-89104

LN85,YN86..4FC;KZN130,LN10#,112,13#,VZN130,YN10#,130..SR,SSR,SSRX

 1
58995-89104

LN106..T1..SR;LN100,13#,85,YN100,130..4FC,5F

 1
