LN106-TRMSS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1997
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )MTM

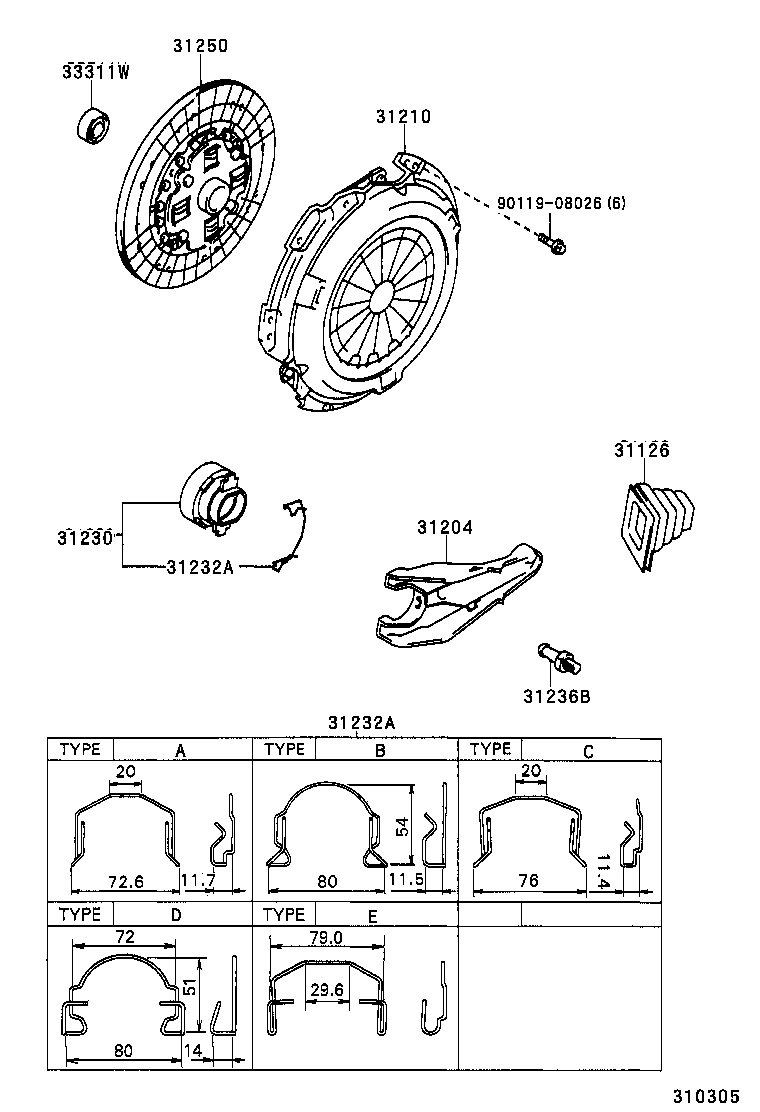

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 33311W 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

LN100,106,107,109,131,8#..MTM

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35050

LN100,106,107,109,131,8#..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-35121

LN10#,131

 1
31210-35120

LN10#,131

 1
31210-35180

LN10#,131

 1
31210-35181

LN100,106,107,109,131

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35060

LN10#,131

 1
31230-22090

LN100,106,107,109,13#..5F

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

LN10#,131,8#,VZN130,YN10#,130,8#..MTM

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31232-35030

LN100,106,107,109,13#,8#,VZN130..MTM

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31232-35040

LN100,106,107,109,13#,YN10#,8#..MTM

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

LN10#,131,8#,VZN130,YN10#,130,8#..MTM

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31232-35030

LN100,106,107,109,13#,8#,VZN130..MTM

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31232-35040

LN100,106,107,109,13#,YN10#,8#..MTM

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31236B - SUPPORT, RELEASE FORK
31236-30060

LN100,106,107,109,131,8#,YN10#,130,8#..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-25130

LN10#,131

 1
31250-35301

LN106,107,109

 1
31250-35300

LN100,106,107,109,13#..5F

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

KZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM

 1
Common parts
90119-08026
