LN106-TRMDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1997
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

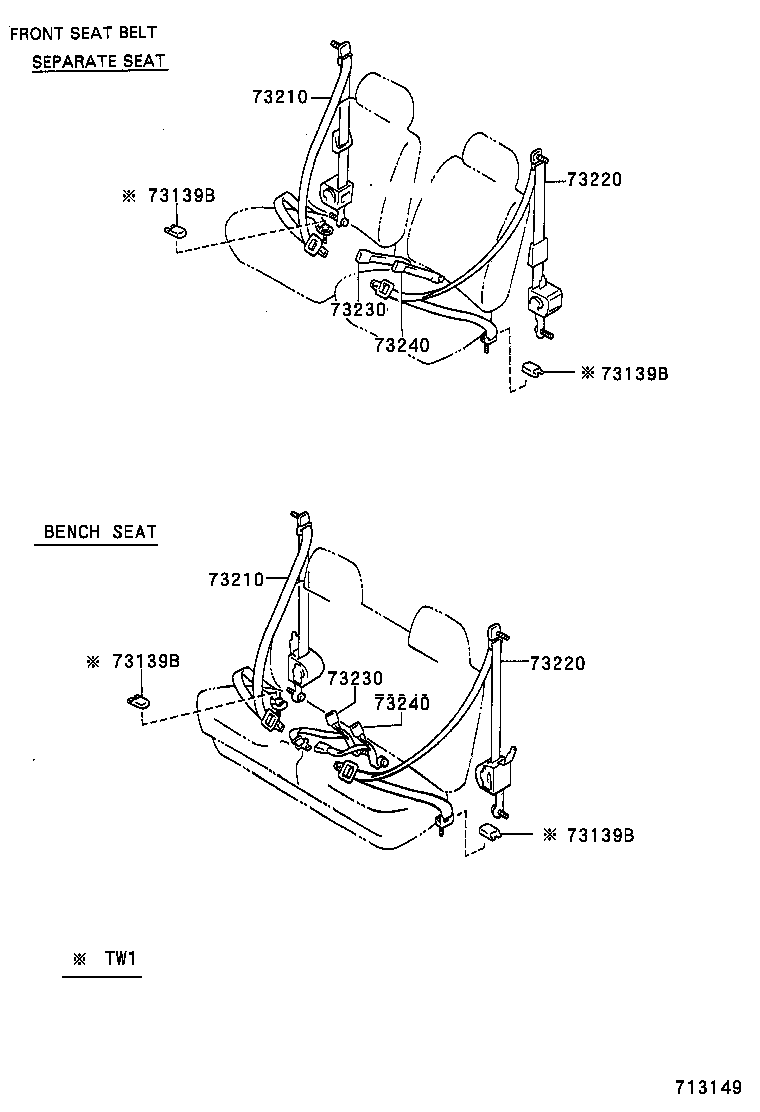

ILLUST NO. 1 OF 2(8809- )LN10#,112,8#,YN10#,8#

Click highlighted areas on diagram

diagram 73139B 73139B 73139B 73139B 73210 73210 73220 73220 73230 73230 73240 73240
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-8918404

LN10#,8#,YN100,8#..RCB

BLUE,TRIM8#

 1
73210-8918404

LN10#,8#,YN100,8#..RCB..(DLX,SDX,SR)

BLUE,TRIM8#

 1
73210-8918403

LN10#,8#,YN100,8#..RCB

GRAY,TRIM1#

 1
73210-35210B0

LN106,8#,YN8#..RCB

GRAY,TRIM1#

 1
73210-35060J1

LN100,106,8#,YN100,8#..RCB..(DLX,SDX,SR)

BLUE,TRIM8#

 1
73210-35060B1

LN100,106,8#,YN100,8#..RCB

GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-8918404

LN10#,8#,YN100,8#..RCB

BLUE,TRIM8#

 1
73210-8918404

LN10#,8#,YN100,8#..RCB..(DLX,SDX,SR)

BLUE,TRIM8#

 1
73210-8918403

LN10#,8#,YN100,8#..RCB

GRAY,TRIM1#

 1
73210-35210B0

LN106,8#,YN8#..RCB

GRAY,TRIM1#

 1
73210-35060J1

LN100,106,8#,YN100,8#..RCB..(DLX,SDX,SR)

BLUE,TRIM8#

 1
73210-35060B1

LN100,106,8#,YN100,8#..RCB

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-8918404

LN10#,8#,YN100,8#..RCB

BLUE,TRIM8#

 1
73210-8918403

LN10#,8#,YN100,8#..RCB

GRAY,TRIM1#

 1
73210-8918404

LN10#,8#,YN100,8#..RCB..(DLX,SDX,SR)

BLUE,TRIM8#

 1
73210-35060J1

LN100,106,8#,YN100,8#..RCB..(DLX,SDX,SR)

BLUE,TRIM8#

 1
73210-35060B1

LN100,106,8#,YN100,8#..RCB

GRAY,TRIM1#

 1
73210-35210B0

LN106,8#,YN8#..RCB

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-8918404

LN10#,8#,YN100,8#..RCB

BLUE,TRIM8#

 1
73210-8918403

LN10#,8#,YN100,8#..RCB

GRAY,TRIM1#

 1
73210-8918404

LN10#,8#,YN100,8#..RCB..(DLX,SDX,SR)

BLUE,TRIM8#

 1
73210-35060J1

LN100,106,8#,YN100,8#..RCB..(DLX,SDX,SR)

BLUE,TRIM8#

 1
73210-35060B1

LN100,106,8#,YN100,8#..RCB

GRAY,TRIM1#

 1
73210-35210B0

LN106,8#,YN8#..RCB

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-8916503

LN106,85..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
73230-8916504

LN106,85..(4FC,5F)..(DLX,SDX)

BLUE,TRIM8#

 1
73230-35150J1

LN106,85..(4FC,5F)..(DLX,SDX)

BLUE,TRIM8#

 1
73230-35150B1

LN106,85..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
73230-35280B0

LN106,85..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
73230-35280J0

LN106,85..(4FC,5F)..(DLX,SDX)

BLUE,TRIM8#

 1
73230-35420B0

LN106,YN86..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-8916503

LN106,85..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
73230-8916504

LN106,85..(4FC,5F)..(DLX,SDX)

BLUE,TRIM8#

 1
73230-35150J1

LN106,85..(4FC,5F)..(DLX,SDX)

BLUE,TRIM8#

 1
73230-35150B1

LN106,85..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
73230-35280B0

LN106,85..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
73230-35280J0

LN106,85..(4FC,5F)..(DLX,SDX)

BLUE,TRIM8#

 1
73230-35420B0

LN106,YN86..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-8915003

LN106,85..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
73240-35090B2

LN106,85..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
73240-35090J2

LN106,85..(4FC,5F)..(DLX,SDX)

BLUE,TRIM8#

 1
73240-35250J0

LN106,85..(4FC,5F)..(DLX,SDX)

BLUE,TRIM8#

 1
73240-8915004

LN106,85..(4FC,5F)..(DLX,SDX)

BLUE,TRIM8#

 1
73240-35250B0

LN106,85..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
73240-35300B0

LN106,YN86..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-8915003

LN106,85..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
73240-35090B2

LN106,85..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
73240-35090J2

LN106,85..(4FC,5F)..(DLX,SDX)

BLUE,TRIM8#

 1
73240-35250J0

LN106,85..(4FC,5F)..(DLX,SDX)

BLUE,TRIM8#

 1
73240-8915004

LN106,85..(4FC,5F)..(DLX,SDX)

BLUE,TRIM8#

 1
73240-35250B0

LN106,85..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
73240-35300B0

LN106,YN86..(4FC,5F)..(DLX,SDX)

GRAY,TRIM1#

 1
