LN106-TRMDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1997
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )

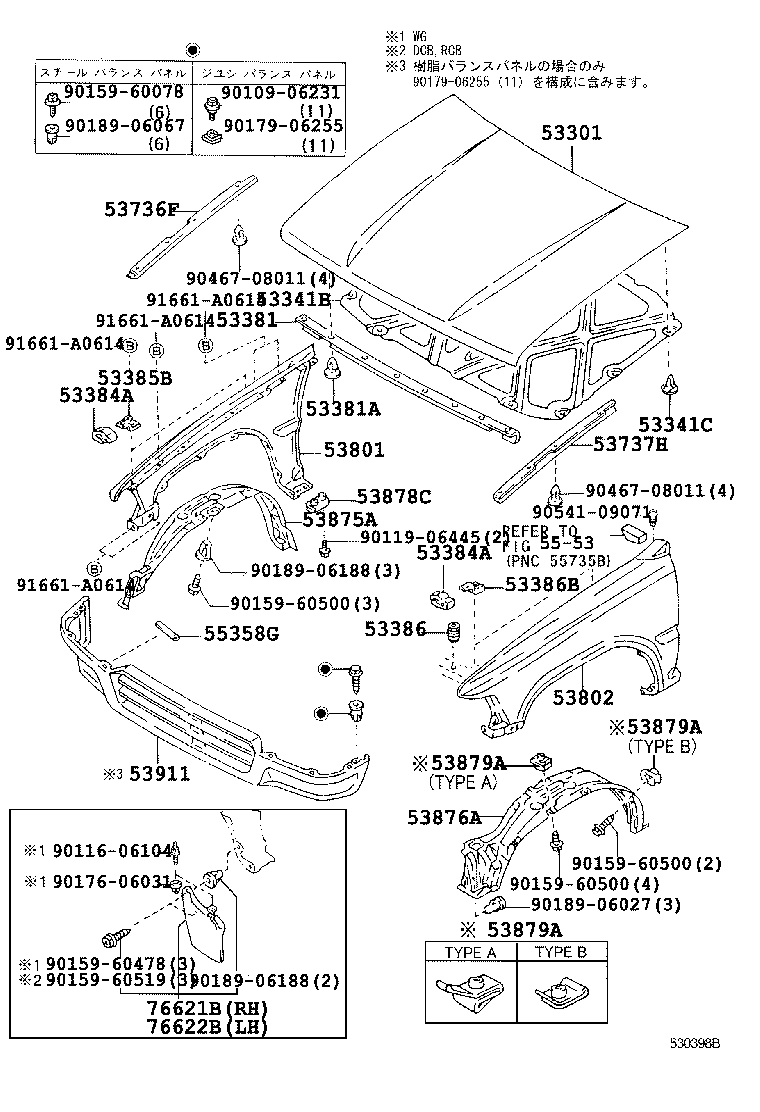

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53384A 53384A 53385B 53386 53386B 53736F 53737H 53801 53802 53875A 53876A 53878C 53879A 53879A 53879A 53911 55358G 5553 76621B 76622B 9010906231 9011606104 9011906445 9015960078 9015960478 9015960500 9015960500 9015960500 9015960519 9017606031 9017906255 9018906027 9018906067 9018906188 9018906188 9046708011 9046708011 9054109071 91661A0614 91661A0614 91661A0614 91661A0614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-89124

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
53341B - INSULATOR, HOOD
53341-89107

KZN130,LN10#,112,13#,8#,VZN130

 1
53341-89106

LN10#,13#,8#..DSL,TD

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-0900401

LN106..DLX

BLACK,033 ,8E2

 13
90467-0900401

LN106..DLX

BLACK,045 ,8E2

 13
90467-0900401

LN106,8#..DLX

BLACK,045 ,179 ,8E2

 13
90467-0900401

LN106,8#..DLX

BLACK,045 ,196

 13
90467-0900401

LN106,8#..(T1,TW1)..DLX

BLACK,045 ,179

 13
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-89104

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

YN8#;KZN130,LN10#,112,13#,85,VZN130,YN10#..4FC,5F

 8
90467-08011

YN130..5F;LN10#,13#,85..4FC,5F

 8
53384A - BUMPER, FENDER TO HOOD
53384-89102

LN10#,8#,YN10#,8#

 4
53384-89103

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 4
53384A - BUMPER, FENDER TO HOOD
53384-89102

LN10#,8#,YN10#,8#

 4
53384-89103

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 4
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53386-20020

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
53386 - BUMPER, HOOD, REAR
53382-89102

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53385-20020

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
53736F - SEAL, FRONT FENDER APRON, RH
53736-89117

KZN130,LN10#,112,13#,85,VZN130..4FC,5F

 1
53737H - SEAL, FRONT FENDER APRON, LH
53737-89108

KZN130,LN10#,112,13#,85,VZN130..4FC,5F

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-89213

LN10#,YN10#

 1
53811-89215

LN10#,YN10#

ｱﾘ(ﾄﾞｱ ﾐﾗ-)

 1
53811-89215

LN100,106,107,108,YN10#

 1
53811-89213

LN100,106,107,108,YN10#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-89202

LN10#,YN10#

 1
53802-35100

LN100,106,107,108,YN10#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53812-89206

LN10#,YN10#

ｱﾘ(ﾄﾞｱ ﾐﾗ-)

 1
53802-35090

LN100,106,107,108,YN10#

 1
53875A - LINER, FRONT FENDER, RH
53875-89106

KZN130,LN10#,112,13#,VZN130,YN10#,130

 1
53876A - LINER, FRONT FENDER, LH
53876-89106

KZN130,LN10#,112,13#,VZN130,YN10#,130

 1
53878C - SPACER, FRONT FENDER
53878-89102

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
53879A - RETAINER, FRONT FENDER LINER
53879-22010

LN10#,YN10#

 4
53879-14020

LN10#,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

ﾀｲﾌﾟ A

 6
53879-22010

LN10#,13#,8#,VZN130,YN10#,130,8#

TYPE B,BLACK

 4
53879-22010

LN108;KZN130,LN100,106,107,13#,YN10#..DLX,SR,SSR

TYPE B

 4
53879-14020

LN108;KZN130,LN100,106,107,13#,YN10#..DLX,SR,SSR

TYPE A

 6
53879A - RETAINER, FRONT FENDER LINER
53879-22010

LN10#,YN10#

 4
53879-14020

LN10#,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

ﾀｲﾌﾟ A

 6
53879-22010

LN10#,13#,8#,VZN130,YN10#,130,8#

TYPE B,BLACK

 4
53879-22010

LN108;KZN130,LN100,106,107,13#,YN10#..DLX,SR,SSR

TYPE B

 4
53879-14020

LN108;KZN130,LN100,106,107,13#,YN10#..DLX,SR,SSR

TYPE A

 6
53879A - RETAINER, FRONT FENDER LINER
53879-22010

LN10#,YN10#

 4
53879-14020

LN10#,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

ﾀｲﾌﾟ A

 6
53879-22010

LN10#,13#,8#,VZN130,YN10#,130,8#

TYPE B,BLACK

 4
53879-22010

LN108;KZN130,LN100,106,107,13#,YN10#..DLX,SR,SSR

TYPE B

 4
53879-14020

LN108;KZN130,LN100,106,107,13#,YN10#..DLX,SR,SSR

TYPE A

 6
53911 - PANEL, FRONT VALANCE
53911-89116

LN106,85,YN105,85

塗装不要

 1
53911-35906

LN106,107,108,YN107

要塗装

 1
55358G - PROTECTOR, EDGE
55358-89101

LN106,85,YN105,85

 2
76621B - MUDGUARD, FRONT BODY, RH
76621-39155

LN10#,YN10#

 1
76621-39425

LN100,106,107,108,YN10#

 1
76622B - MUDGUARD, FRONT BODY, LH
76622-39155

LN10#,YN10#

 1
76622-39425

LN100,106,107,108,YN10#

 1
Common parts
90109-06231
90116-06104
90119-06445
90159-60078
90159-60478
90159-60500
90159-60519
90176-06031
90179-06255
90189-06027
90189-06067
90189-06188
90467-08011
90541-09071
91661-A0614
Linked diagrams
5553

(9108- )

Click highlighted areas on diagram

diagram 52112F 52112F 52113E 52113E 52133E 52134F 52135D 52136C 52147D 52148D 53847A 53848A 53851D 53851D 53852B 53852B 53853 53857B 53858B 53858C 53858C 53861 53862 53866B 53877B 53878D 53879A 53879A 53879C 53879C 53879C 53879C 61694E 9015960500 9017906144 9017906144 9017906144 9017906144 9018304052 9018306021 9026903062 9026903062 9026904037 9026904037 9033903014 9046709077 9046709077 9046709134 9054005028 9054005028 9356014014 9356834512 9356834512
Part # Description Qty Price
53879A - RETAINER, FRONT FENDER LINER
53879-22010

LN10#,YN10#

 4
53879-14020

LN10#,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

ﾀｲﾌﾟ A

 6
53879-22010

LN10#,13#,8#,VZN130,YN10#,130,8#

TYPE B,BLACK

 4
53879-22010

LN108;KZN130,LN100,106,107,13#,YN10#..DLX,SR,SSR

TYPE B

 4
53879-14020

LN108;KZN130,LN100,106,107,13#,YN10#..DLX,SR,SSR

TYPE A

 6
53879A - RETAINER, FRONT FENDER LINER
53879-22010

LN10#,YN10#

 4
53879-14020

LN10#,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

ﾀｲﾌﾟ A

 6
53879-22010

LN10#,13#,8#,VZN130,YN10#,130,8#

TYPE B,BLACK

 4
53879-22010

LN108;KZN130,LN100,106,107,13#,YN10#..DLX,SR,SSR

TYPE B

 4
53879-14020

LN108;KZN130,LN100,106,107,13#,YN10#..DLX,SR,SSR

TYPE A

 6
Common parts
90159-60500
90179-06144
90183-04052
90183-06021
90269-03062
90269-04037
90339-03014
90467-09077
90467-09134
90540-05028
93560-14014
93568-34512
