LN106-TRMDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1997
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )LN10#,112,YN10#

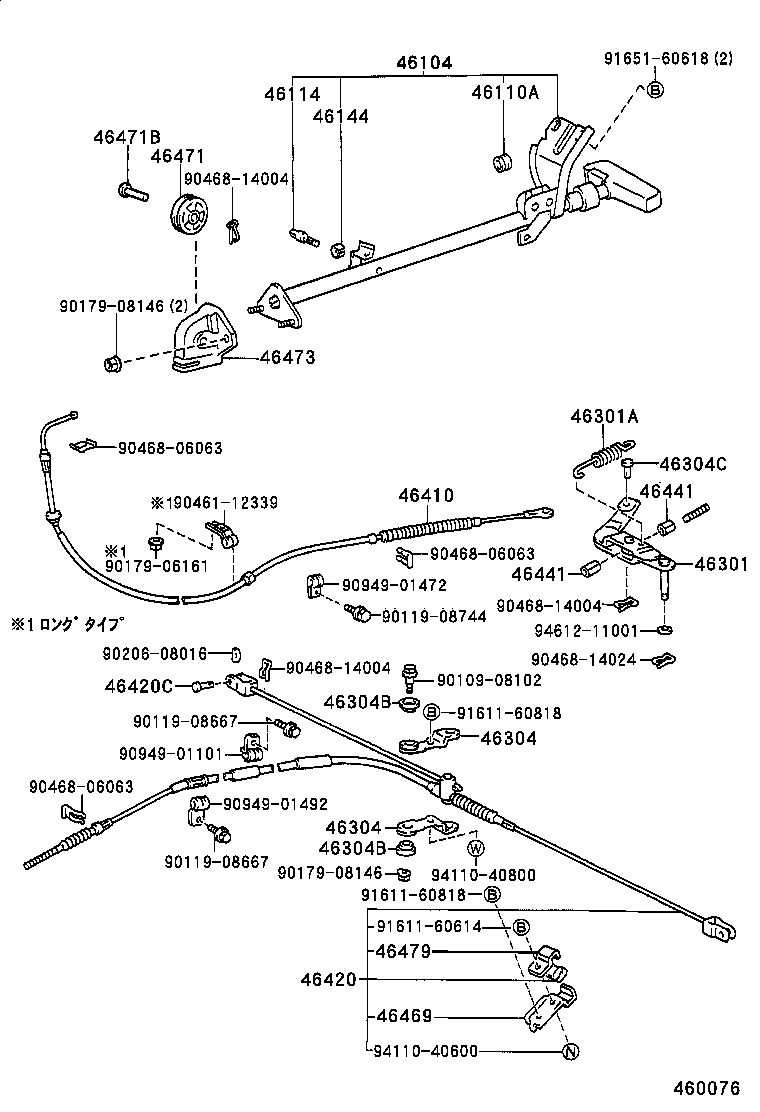

Click highlighted areas on diagram

diagram 46104 46110A 46114 46144 46301 46301A 46304 46304 46304B 46304B 46304C 46410 46420 46420C 46441 46441 46469 46471 46471B 46473 46479 9010908102 9011908667 9011908667 9011908744 9017906161 9017908146 9017908146 9020608016 9046112339 9046806063 9046806063 9046806063 9046814004 9046814004 9046814004 9046814024 9094901101 9094901472 9094901492 9161160614 9161160818 9161160818 9165160618 9411040600 9411040800 9461211001
Part # Description Qty Price
46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46110-35230

KZN130,LN10#,112,13#,8#,YN10#,130,8#

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-11195

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-30020

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-35190

LN100,106,YN100,105

 1
46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER)
90506-25003

LN10#,YN10#

 1
90507-20011

LN10#,YN10#

 1
90507-20011

LN100,106,YN100,105

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-35030

LN10#,112,YN10#

 2
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-35030

LN10#,112,YN10#

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

LN10#,112,YN10#

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

LN10#,112,YN10#

 2
46304C - PIN(FOR PARKING BRAKE EQUALIZER)
90240-08040

KZN130,LN10#,112,13#,VZN130,YN10#,130

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-35460

LN106

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-35490

LN100,106,YN100,105

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08059

LN10#,112,YN10#

 2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

KZN130,LN10#,112,13#,VZN130,YN10#,130

 2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

KZN130,LN10#,112,13#,VZN130,YN10#,130

 2
46469 - LEVER, CABLE GUIDE SUPPORT
46469-35020

LN10#,112,YN10#

 1
46471 - PULLEY, WIRE
46471-20010

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08070

KZN130,LN10#,112,13#,8#,YN10#,130,8#

 1
46473 - BRACKET, PULLEY
46473-35020

KZN130,LN10#,112,13#,8#,YN10#,130,8#

 1
46479 - LEVER, CABLE GUIDE SAPPORT, NO.2
46479-35010

LN10#,112,YN10#

 1
Common parts
90109-08102
90119-08667
90119-08744
90179-06161
90179-08146
90206-08016
90461-12339
90468-06063
90468-14004
90468-14024
90949-01101
90949-01472
90949-01492
91611-60614
91611-60818
91651-60618
94110-40600
94110-40800
94612-11001
