LN106-TRMDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1997
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108-9408)MTM ; (9408-9511)KZN130..5F

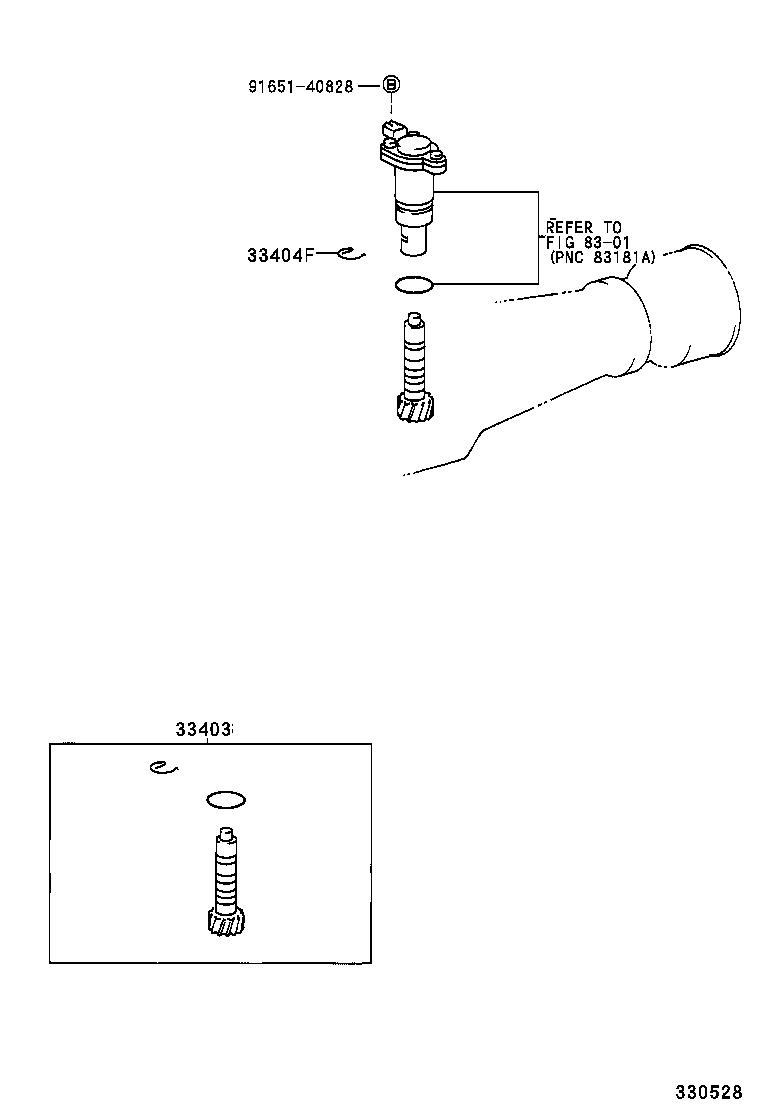

Click highlighted areas on diagram

diagram 33403 33404F 8301 9165140828
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-39135

LN10#,8#..(T1,TW1)..MTM

歯数=18,ﾏｰｸ 18:6

 1
33403-39295

LN10#,8#..(T1,TW1)..MTM

歯数=18,ﾏｰｸ 18:6

 1
33482-39135

LN106,107,8#

歯数=18,ﾏｰｸ 18:6

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

KZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM

 1
Common parts
91651-40828
Linked diagrams
8301

(8809-9108)MTM ; (9408- )LN106,107,109,8#,VZN130,YN107,8#..MTM

Click highlighted areas on diagram

diagram 33403 33404 33404A 33404A 33404E 33404F 33485 9161160814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-39135

LN10#,8#..(T1,TW1)..MTM

歯数=18,ﾏｰｸ 18:6

 1
33403-39295

LN10#,8#..(T1,TW1)..MTM

歯数=18,ﾏｰｸ 18:6

 1
33482-39135

LN106,107,8#

歯数=18,ﾏｰｸ 18:6

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-35010

LN10#,8#,YN10#,8#..MTM

 1
33404-35010

LN106,107,8#,YN107,8#..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

LN10#,8#,YN10#,8#..MTM

 1
90301-18018

LN106,107,8#,YN107,8#..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

LN10#,8#,YN10#,8#..MTM

 1
90301-18018

LN106,107,8#,YN107,8#..MTM

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

LN106,107,109,8#,VZN130,YN107,8#..MTM

 1
90310-09001

LN10#,13#,8#,VZN130,YN10#,130,8#..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

KZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

LN106,107,109,8#,VZN130,YN107,8#..MTM

 1
33485-30020

LN10#,13#,8#,VZN130,YN10#,130,8#..MTM

 1
Common parts
91611-60814
