LN100-TRMSS (1988)
Toyota Hilux
Production
Sep 1988
-
Aug 1994
Engine
3L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8904- )LN13#,YN130 ; (9008- )KZN130,LN10#,112,VZN130,YN107

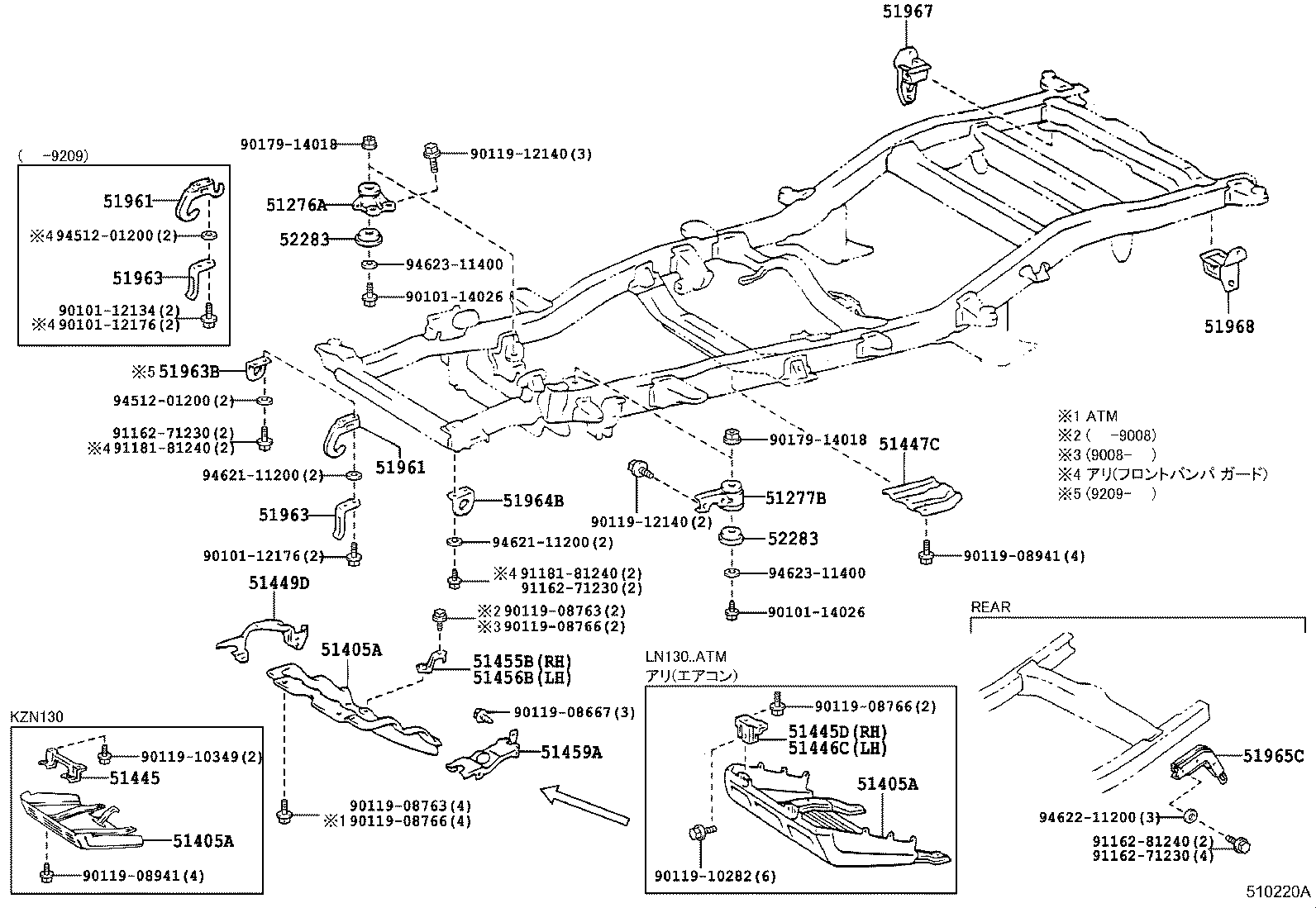

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1 | ||||
| 51441-35121 |
LN100,106,YN100,105 |
1 | ||
| 51441-35120 |
LN10#,YN10# |
1 | ||
| 51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1 | ||||
| 51441-35121 |
LN100,106,YN100,105 |
1 | ||
| 51441-35120 |
LN10#,YN10# |
1 | ||
| 51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1 | ||||
| 51441-35121 |
LN100,106,YN100,105 |
1 | ||
| 51441-35120 |
LN10#,YN10# |
1 | ||
| 51447C - PROTECTOR, TRANSFER CASE | ||||
| 51447-35020 |
YN107;LN10#,YN100,105..DLX,SR |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-35020 |
KZN130,LN10#,112,13#,VZN130,YN10# |
1 | ||
| 51961-35020 |
LN100,106,YN100,105 |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-35020 |
KZN130,LN10#,112,13#,VZN130,YN10# |
1 | ||
| 51961-35020 |
LN100,106,YN100,105 |
1 | ||
| 51963 - STOPPER, HOOK WIRE | ||||
| 51963-35080 |
YN130..4FC;LN10#,13#,YN10# |
1 | ||
| 51963-35080 |
KZN130,LN10#,112,13#,VZN130,YN10#,130 |
1 | ||
| 51963 - STOPPER, HOOK WIRE | ||||
| 51963-35080 |
YN130..4FC;LN10#,13#,YN10# |
1 | ||
| 51963-35080 |
KZN130,LN10#,112,13#,VZN130,YN10#,130 |
1 | ||
| Common parts | ||||
| 90101-12134 | ||||
| 90101-12176 | ||||
| 90101-14026 | ||||
| 90119-08667 | ||||
| 90119-08763 | ||||
| 90119-08766 | ||||
| 90119-08941 | ||||
| 90119-10282 | ||||
| 90119-10349 | ||||
| 90119-12140 | ||||
| 90179-14018 | ||||
| 91162-71230 | ||||
| 91162-81240 | ||||
| 91181-81240 | ||||
| 94512-01200 | ||||
| 94621-11200 | ||||
| 94622-11200 | ||||
| 94623-11400 | ||||
(8809- )LN100,106,YN100,105

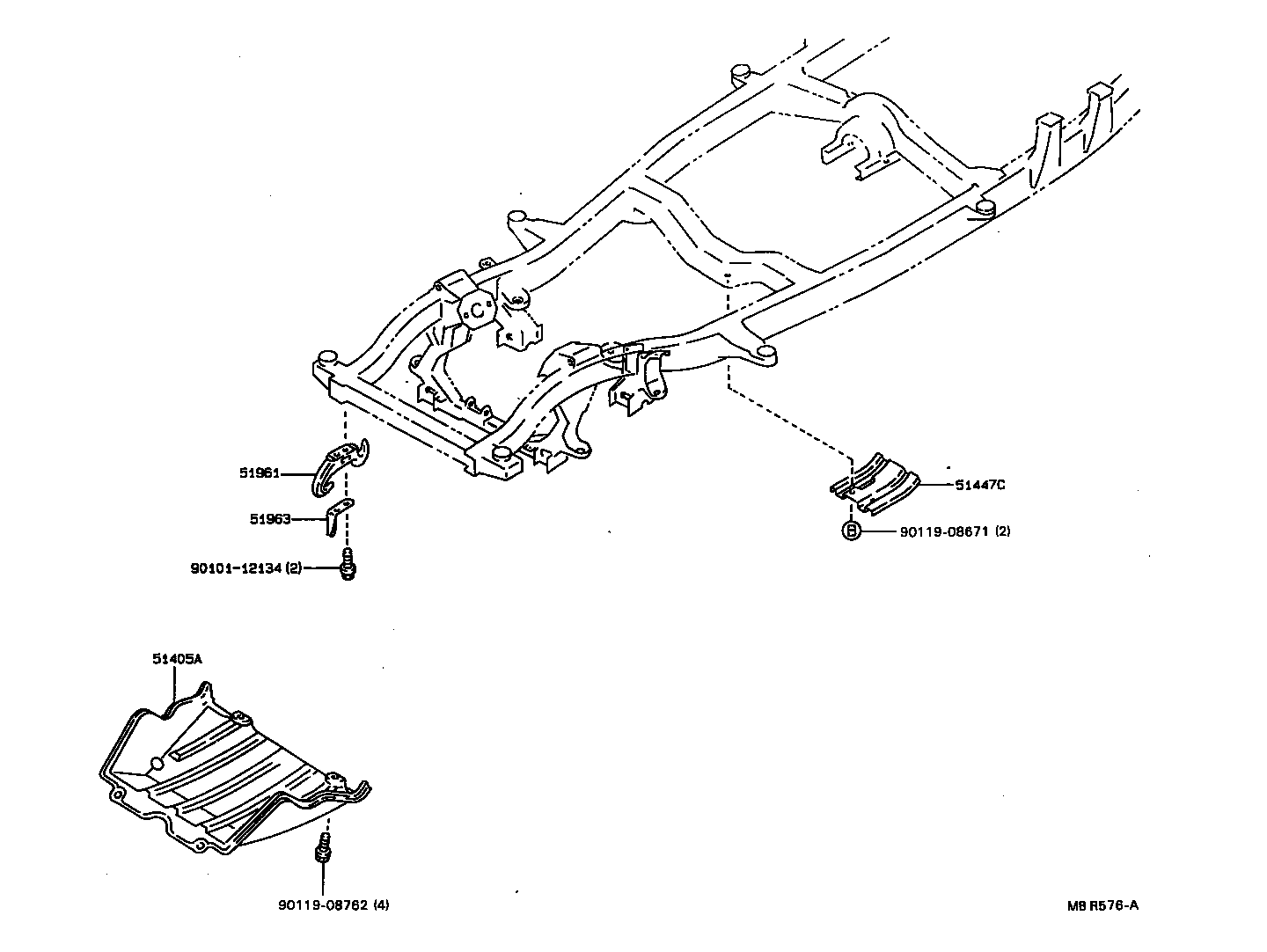

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1 | ||||
| 51441-35121 |
LN100,106,YN100,105 |
1 | ||
| 51441-35120 |
LN10#,YN10# |
1 | ||
| 51447C - PROTECTOR, TRANSFER CASE | ||||
| 51447-35020 |
YN107;LN10#,YN100,105..DLX,SR |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-35020 |
KZN130,LN10#,112,13#,VZN130,YN10# |
1 | ||
| 51961-35020 |
LN100,106,YN100,105 |
1 | ||
| 51963 - STOPPER, HOOK WIRE | ||||
| 51963-35080 |
YN130..4FC;LN10#,13#,YN10# |
1 | ||
| 51963-35080 |
KZN130,LN10#,112,13#,VZN130,YN10#,130 |
1 | ||
| Common parts | ||||
| 90101-12134 | ||||
| 90119-08671 | ||||
| 90119-08762 | ||||
