LN100-TRMSS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

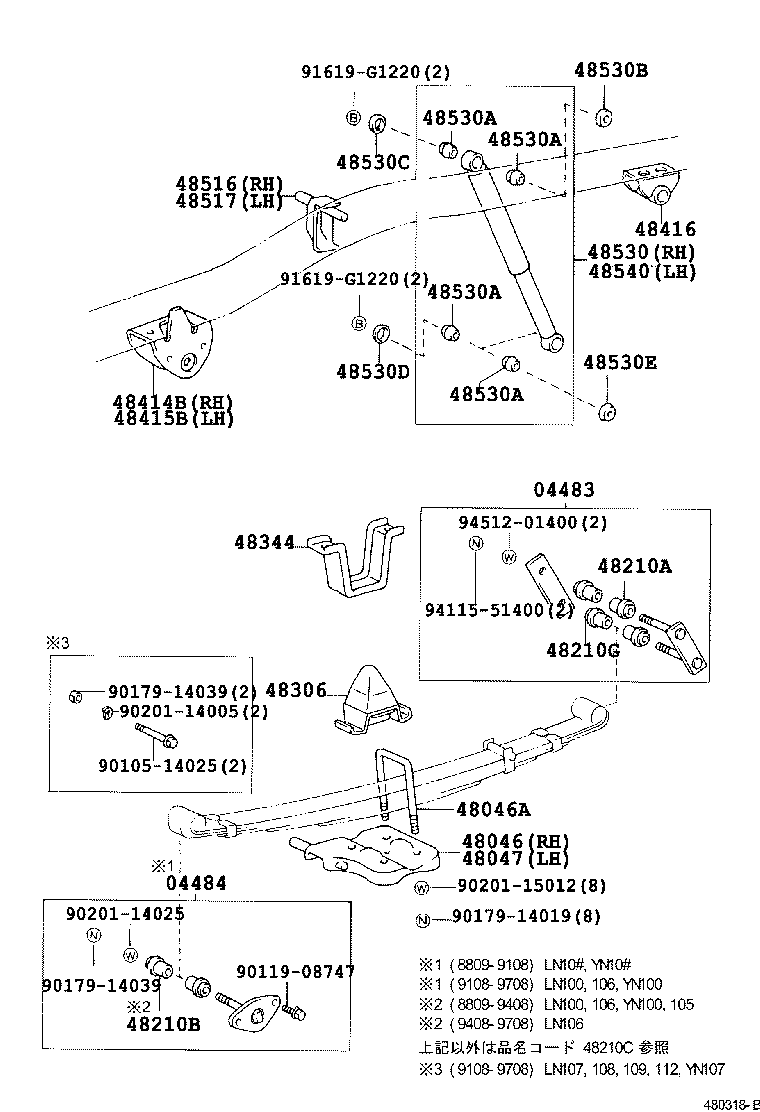

ILLUST NO. 1 OF 2(8809- )LN10#,112,YN10#

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48047 48210A 48210B 48210G 48306 48344 48414B 48415B 48416 48516 48517 48530 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48540 9010514025 9011908747 9017914019 9017914039 9017914039 9020114005 9020114025 9020115012 91619G1220 91619G1220 9411551400 9451201400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-35040

LN100,106,YN100,105

 2
04484 - PIN KIT, REAR SPRING
04482-35030

LN10#,8#,YN10#,8#

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-35170

LN10#,112,YN10#

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-14044

LN100,106,107,YN10#..DLX,SR

長さ=165

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-35170

LN10#,112,YN10#

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18046

LN100,106,YN100,105

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

LN100,106,8#,YN100,105,8#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

LN10#,112,8#,YN10#,8#

 4
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-35110

LN10#,112,YN10#

 2
48344 - STOPPER, BUMPER, REAR
48344-35020

LN10#,112,YN10#

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-35160

LN100,106,8#,YN100,105,8#..T1,TW1

 1
48415B - BRACKET, SPRING, NO.3 LH
48414-35160

LN100,106,8#,YN100,105,8#..T1,TW1

 1
48416 - BRACKET, SPRING, NO.4
48416-35051

LN100,106,YN100,105

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-35040

LN10#,112,YN10#

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48506-35010

LN10#,112,YN10#

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80059

LN10#,YN10#

ﾏｰｸ 48531−35490

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19002

LN10#,112,YN10#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19002

LN10#,112,YN10#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19002

LN10#,112,YN10#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19002

LN10#,112,YN10#

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03020

LN10#,112,YN10#

 2
90948-03015

LN10#,YN10#

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03011

LN10#,112,YN10#

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03011

LN10#,112,YN10#

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03020

LN10#,112,YN10#

 2
90948-03015

LN10#,YN10#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48541-39085

LN10#,YN10#

ﾏｰｸ 48541−35020

 1
Common parts
90105-14025
90119-08747
90179-14019
90179-14039
90201-14005
90201-14025
90201-15012
91619-G1220
94115-51400
94512-01400

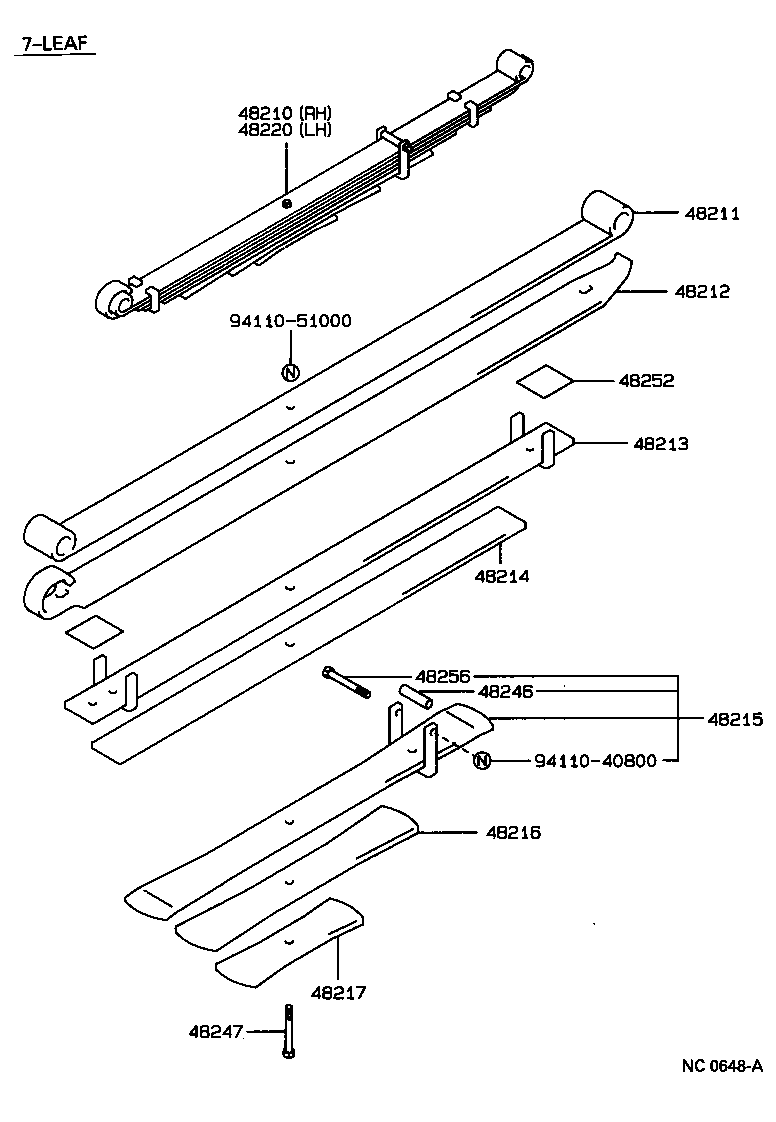

ILLUST NO. 2 OF 2(8809- )LN100,106,YN100,105

Click highlighted areas on diagram

diagram 48210 48211 48212 48213 48214 48215 48216 48217 48220 48246 48247 48252 48256 9411040800 9411051000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-35670

LN100,106,YN100,105

7枚ﾘｰﾌ

 1
48211 - LEAF, REAR SPRING, NO.1
48211-35670

LN100,106,YN100,105

 2
48212 - LEAF, REAR SPRING, NO.2
48212-35670

LN100,106,YN100,105

 2
48213 - LEAF, REAR SPRING, NO.3
48202-35670

LN100,106,YN100,105

 2
48214 - LEAF, REAR SPRING, NO.4
48214-35670

LN100,106,YN100,105

 2
48215 - LEAF, REAR SPRING, NO.5
48203-35670

LN100,106,YN100,105

 2
48216 - LEAF, REAR SPRING, NO.6
48216-35670

LN100,106,YN100,105

 2
48217 - LEAF, REAR SPRING, NO.7
48217-35670

LN100,106,YN100,105

 2
48220 - SPRING ASSY, REAR LH
48210-35670

LN100,106,YN100,105

7枚ﾘｰﾌ

 1
48246 - CASE, REAR SPRING CLIP BOLT
48146-60010

LN10#,YN10#

 2
48146-60070

LN100,106,YN100

 2
48247 - BOLT, REAR SPRING, CENTER
48247-36530

LN100,106,YN100,105

 2
48252 - SILENCER, REAR SPRING
48252-26070

LN10#,112,YN10#

 8
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-36570

LN10#,YN10#

 2
48256-35170

LN100,106,YN100

 2
Common parts
94110-40800
94110-51000
