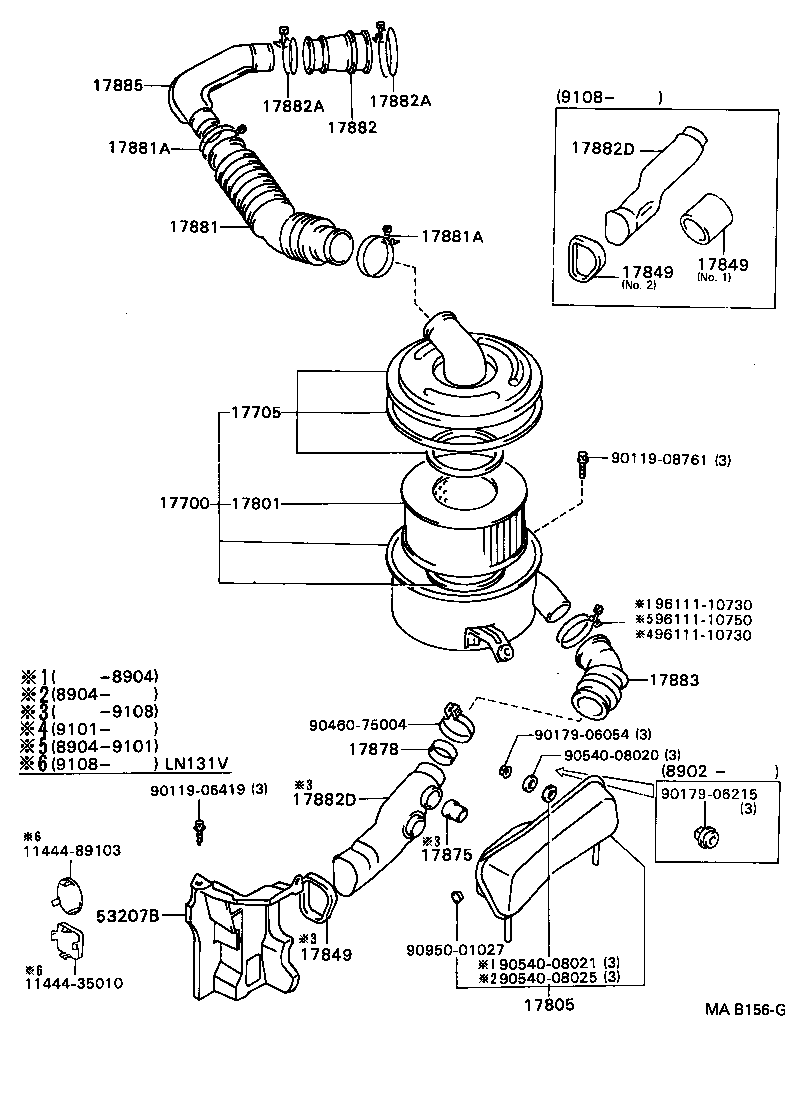

Toyota Hilux LN100 AIR CLEANER - JDM Part Detective

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-54480	2L,3L..LN10#,131,8#	09/1988 - 06/1990	1
17700-54621	2L,3L..LN100,106,107,109,8#	07/1994 - 12/2999	1
17700-54620	2L,3L..LN10#,131,8#	06/1990 - 07/1994	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-54250	2L,3L..LN100,106,107,109,131,8#	09/1988 - 12/2999	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54060	2LT#,2L,3L..LN10#,112,13#,8#	09/1988 - 12/2999	1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-89106	2L,3L..LN10#,131,8#	09/1988 - 08/1991	1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-89109	2L,3L..LN10#,131,8#	01/1989 - 08/1991	1
17849-35060	2L#,3L..LN10#,13#,8# NO.1	08/1991 - 08/1994	1
17849-89109	2L#,3L..LN10#,112,13#,8# NO.2	08/1991 - 12/2999	1
17849-89102	2L,3L..LN10#,8#	09/1988 - 01/1989	1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-89109	2L,3L..LN10#,131,8#	01/1989 - 08/1991	1
17849-35060	2L#,3L..LN10#,13#,8# NO.1	08/1991 - 08/1994	1
17849-89109	2L#,3L..LN10#,112,13#,8# NO.2	08/1991 - 12/2999	1
17849-89102	2L,3L..LN10#,8#	09/1988 - 01/1989	1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-89109	2L,3L..LN10#,131,8#	01/1989 - 08/1991	1
17849-35060	2L#,3L..LN10#,13#,8# NO.1	08/1991 - 08/1994	1
17849-89109	2L#,3L..LN10#,112,13#,8# NO.2	08/1991 - 12/2999	1
17849-89102	2L,3L..LN10#,8#	09/1988 - 01/1989	1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-89108	2LT#,2L,3L..LN10#,13#,8#	09/1988 - 08/1991	1
17878 - PIPE, INTAKE AIR CONNECTOR, NO.3
17878-89101	2LT#,2L,3L..LN10#,112,13#,8#	09/1988 - 12/2999	1
17881 - HOSE, AIR CLEANER, NO.1
17881-54350	2L,3L..LN100,106,107,109,131,8#	09/1988 - 12/2999	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670	2L,3L..LN100,106,107,109,131,8# AIR CLEANER SIDE	09/1988 - 12/2999	1
96111-10620	2L,3L..LN100,106,107,109,131,8# PIPE SIDE	09/1988 - 12/2999	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670	2L,3L..LN100,106,107,109,131,8# AIR CLEANER SIDE	09/1988 - 12/2999	1
96111-10620	2L,3L..LN100,106,107,109,131,8# PIPE SIDE	09/1988 - 12/2999	1
17882 - HOSE, AIR CLEANER, NO.2
17882-54340	2L,3L..LN100,106,107,109,131,8#	09/1988 - 12/2999	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10730	2L,3L..LN100,106,107,109,131,8# INTAKE MANIFOLD SIDE	09/1988 - 12/2999	1
96111-10620	2L,3L..LN100,106,107,109,131,8# PIPE SIDE	09/1988 - 12/2999	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10730	2L,3L..LN100,106,107,109,131,8# INTAKE MANIFOLD SIDE	09/1988 - 12/2999	1
96111-10620	2L,3L..LN100,106,107,109,131,8# PIPE SIDE	09/1988 - 12/2999	1
17882D - HOSE, COOL AIR INTAKE
17882-89122	2L,3L..LN10#,131,8#	09/1988 - 08/1991	1
17882-35090	2L#,3L..LN10#,13#,8#	08/1991 - 08/1994	1
17882D - HOSE, COOL AIR INTAKE
17882-89122	2L,3L..LN10#,131,8#	09/1988 - 08/1991	1
17882-35090	2L#,3L..LN10#,13#,8#	08/1991 - 08/1994	1
17883 - HOSE, AIR CLEANER, NO.3
17883-89107	2LT#,2L,3L..LN10#,112,13#,8#	09/1988 - 12/2999	1
17885 - PIPE, AIR CLEANER
17885-54180	2L,3L..LN100,106,107,109,131,8#	09/1988 - 12/2999	1
53207B - DUCT SUB-ASSY, COOL AIR
53207-89108	LN10#,131,8#	09/1988 - 08/1991	1
53207-89109	LN10#,131,8# ｶﾝﾚｲﾁﾀｲｻｸ	09/1988 - 08/1991	1
53207-89108	LN10#,112,8#	08/1991 - 12/2999	1
53207-89109	LN10#,112,8# ｶﾝﾚｲﾁｼﾖｳ	08/1991 - 12/2999	1
Common parts
11444-35010
11444-89103
90119-06419
90119-08761
90179-06054
90179-06215
90460-75004
90540-08020
90540-08021
90540-08025
90950-01027
96111-10730
96111-10750

LN100-TRMSS (1988)

(8809-9408)2L ; (8809- )3L
