KZN130W-GKPQT (1993)

Toyota Hilux

Production Aug 1993 - Nov 1995
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

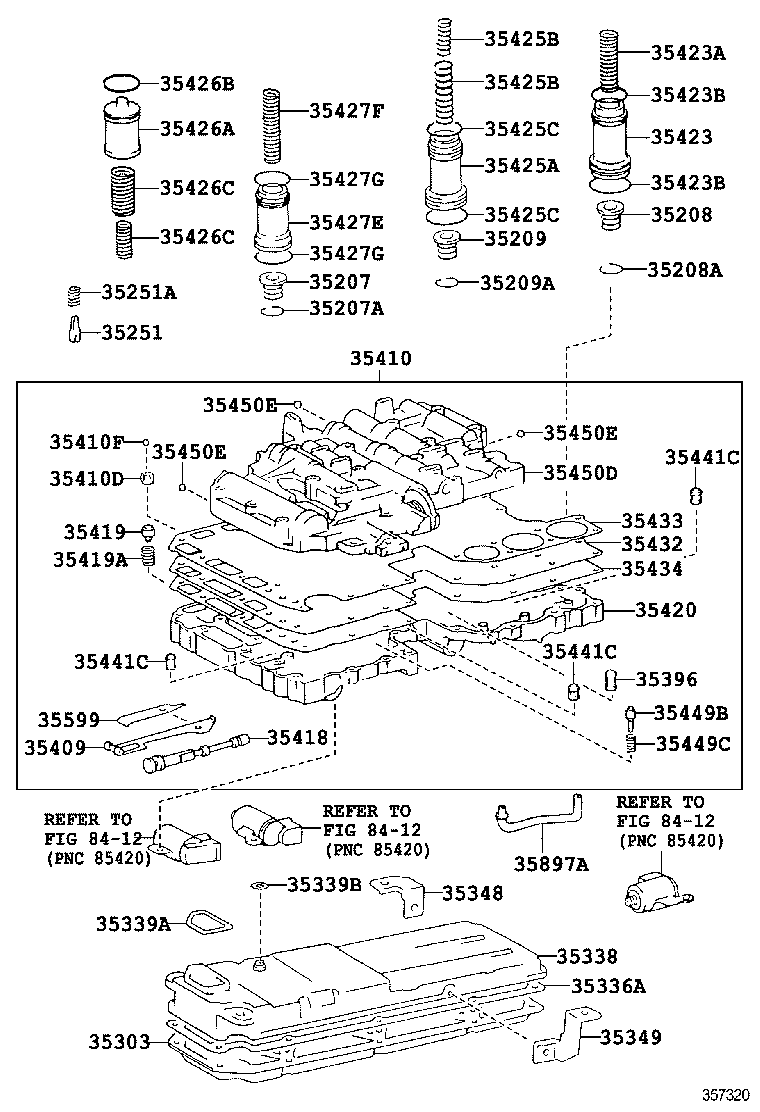

ILLUST NO. 1 OF 4(9308-9511)KZN130..4FC

Click highlighted areas on diagram

diagram 35207 35207A 35208 35208A 35209 35209A 35251 35251A 35303 35336A 35338 35339A 35339B 35348 35349 35396 35409 35410 35410D 35410F 35418 35419 35419A 35420 35423 35423A 35423B 35423B 35425A 35425B 35425B 35425C 35425C 35426A 35426B 35426C 35426C 35427E 35427F 35427G 35427G 35432 35433 35434 35441C 35441C 35441C 35449B 35449C 35450D 35450E 35450E 35450E 35599 35897A 8412 8412 8412
Part # Description Qty Price
35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR
35208-35010

KZN130..4FC

 1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-35300

KZN130..4FC

 1
35420 - BODY ASSY, LOWER VALVE
35420-35060

KZN130..4FC

 1
35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
90501-28011

KZN130..4FC

 1
35432 - PLATE, VALVE BODY, NO.1
35432-35130

KZN130..4FC

 1
35450D - BODY ASSY, UPPER VALVE
35450-60020

KZN130..4FC

 1
35450E - BALL (FOR UPPER VALVE BODY)
35495-22020

KZN130..4FC

外径=5.535,ﾗﾊﾞｰ

 6
35450E - BALL (FOR UPPER VALVE BODY)
35495-22020

KZN130..4FC

外径=5.535,ﾗﾊﾞｰ

 6
35450E - BALL (FOR UPPER VALVE BODY)
35495-22020

KZN130..4FC

外径=5.535,ﾗﾊﾞｰ

 6
Linked diagrams
8412
