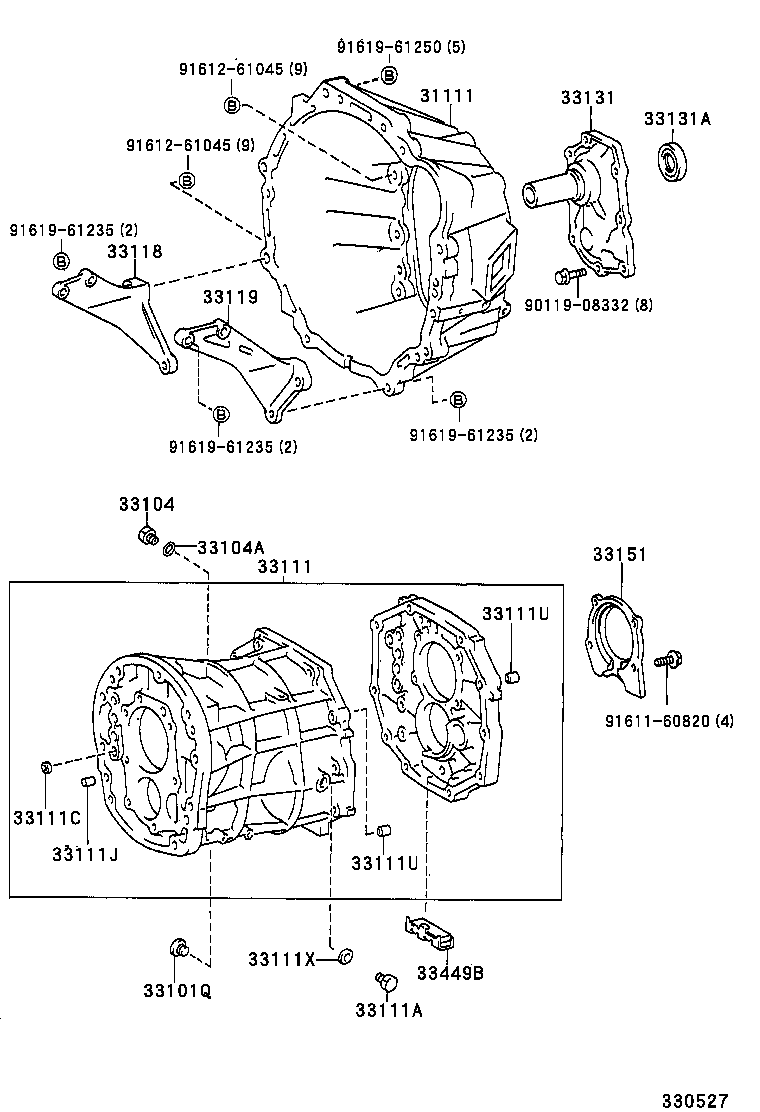

KZN130W-GKMQT (1993)
Toyota Hilux
(9308-9511)KZN130..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-30180 |
YN10#,130,8#..MTM |
1 | ||
| 31111-60270 |
KZN130..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
LN100,106,107,109,131,YN10#,130..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
KZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-35080 |
KZN130,VZN130..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
KZN130,LN109,13#,8#,VZN130,YN130,8#..MTM |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-41800 |
KZN130..5F 外径=18 |
3 | ||
| 90331-14004 |
KZN130,LN10#,13#,8#,VZN130,YN10#,130,8#..MTM 外径=14 |
4 | ||
| 96411-41800 |
KZN130,VZN130..5F 外径=18 |
3 | ||
| 90331-14004 |
KZN130,VZN130..5F 外径=14 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LN100,106,107,109,131,8#,YN10#,130,8#..MTM 長さ=16,外径=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
LN100,106,107,109,131,8#,YN10#,130,8#..MTM 長さ=14,外径=15 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
LN100,106,107,109,131,8#,YN10#,130,8#..MTM 長さ=14,外径=15 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
LN131;KZN130,LN107,109,130,8#,VZN130,YN130,8#..MTM..(DLX,SDX,SSR,SSRX,STD) |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-28010 |
YN10#,130,8#..MTM |
1 | ||
| 33118-60050 |
KZN130..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-60050 |
KZN130..5F |
1 | ||
| 33119-28010 |
YN10#,130,8#..MTM |
1 | ||
| 33119-25020 |
LN100,106,107,109,13#,8#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-26020 |
LN100,106,107,109,131,8#,YN10#,130,8#..MTM |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30010 |
LN10#,131,8#,YN10#,130,8#..MTM |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35030 |
LN100,106,107,109,131,8#,YN10#,130,8#..MTM |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35030 |
KZN130,VZN130..5F |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 91611-60820 | ||||
| 91612-61045 | ||||
| 91619-61235 | ||||
| 91619-61250 | ||||
