KZN130W-GKMQT (1993)

Toyota Hilux

Production Aug 1993 - Nov 1995
Engine 1KZTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9308-9511)1KZTE

Click highlighted areas on diagram

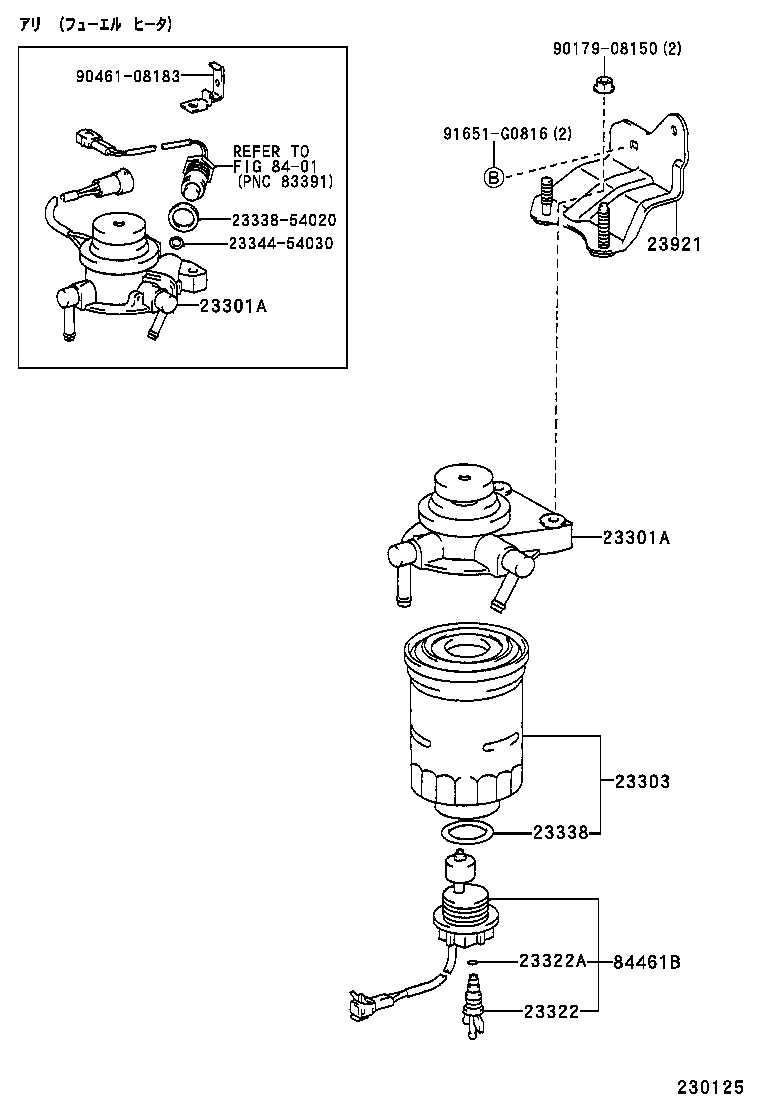

diagram 23301A 23301A 23303 23322 23322A 23338 2333854020 2334454030 23921 8401 84461B 9017908150 9046108183 91651G0816
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-67010

1KZTE..KZN130

 1
23301-67030

1KZTE..KZN130

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23301A - CAP ASSY, FUEL FILTER
23301-67010

1KZTE..KZN130

 1
23301-67030

1KZTE..KZN130

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

1KZTE..KZN130

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

1KZTE..KZN130

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1KZTE..KZN130

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1KZTE..KZN130

 1
23921 - SUPPORT, FUEL FILTER
23921-67010

1KZTE..KZN130

 1
84461B - SWITCH, LEVEL WARNING
84461-35060

LN10#,13#,8#

 1
84461-35060

KZN130

 1
Common parts
23338-54020
23344-54030
90179-08150
90461-08183
91651-G0816
Linked diagrams
8401
