KZN130W-GJPQT (1993)

Toyota Hilux

Production Aug 1993 - Nov 1995
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )KZN130

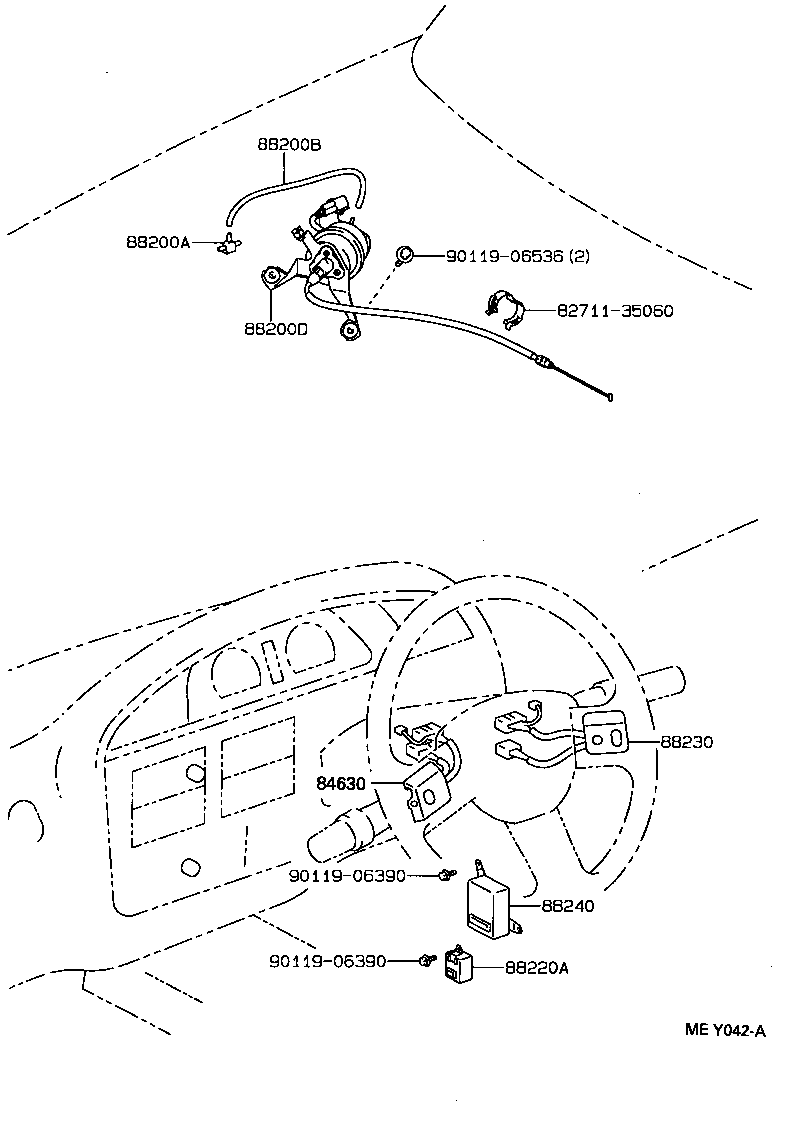

Click highlighted areas on diagram

diagram 8271135060 84630 88200A 88200B 88200D 88220A 88230 88240 9011906390 9011906390 9011906536
Part # Description Qty Price
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-35050B0

KZN130,VZN130..4FC..SSRX

MEDIUM GRAY,TRIM1#

 1
88200A - UNION OR WAY, CRUISE CONTROL VACUUM
90413-04005

KZN130..4FC..SSRX

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90999-92002

KZN130..4FC..SSRX

*H,L=150,ﾏｰｸ=#*

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-35240

KZN130..4FC..SSRX

 1
88220A - RELAY ASSY, SPEED CONTROL MAIN
88220-35010

KZN130,VZN130..4FC..SSRX

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-35030B0

KZN130,VZN130..4FC..SSRX

GRAY,TRIM1#

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-35210

KZN130..4FC..SSRX

 1
Common parts
82711-35060
90119-06390
90119-06536
