KZN130G-GKMGT (1993)

Toyota Hilux

Production Aug 1993 - Nov 1995
Engine 1KZTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9308-9511)1KZTE

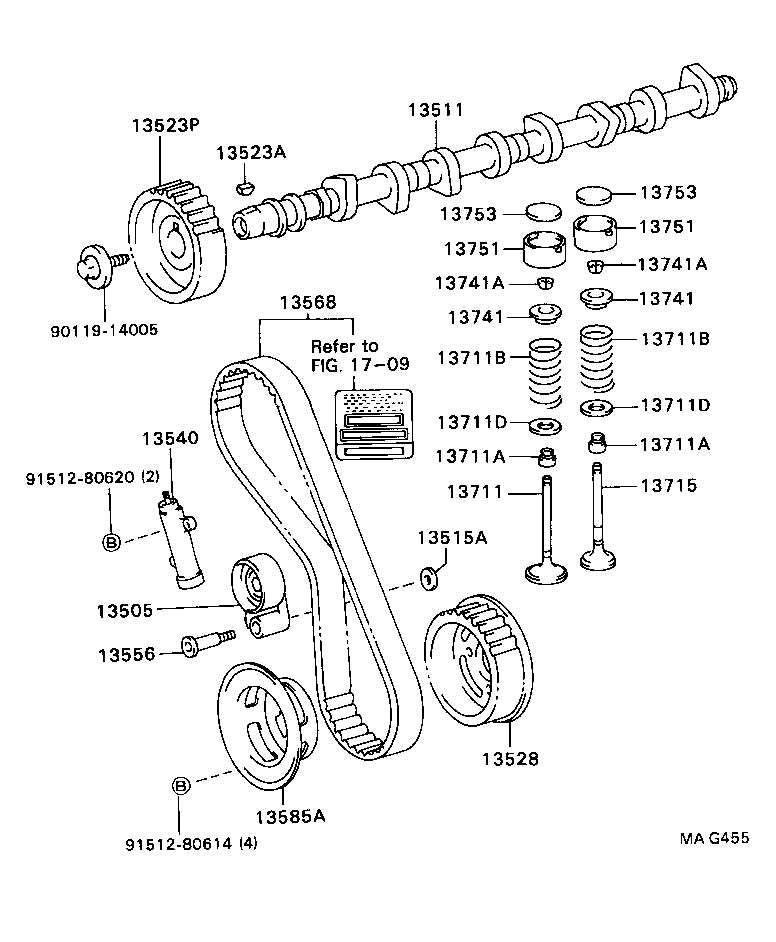

Click highlighted areas on diagram

diagram 13505 13511 13515A 13523A 13523P 13528 13540 13556 13568 13585A 13711 13711A 13711A 13711B 13711B 13711D 13711D 13715 13741 13741 13741A 13741A 13751 13751 13753 13753 1709 9011914005 9151280614 9151280620
Part # Description Qty Price
13505 - IDLER SUB-ASSY, TIMING BELT, NO.1
13505-67050

1KZTE..KZN130

 1
13511 - CAMSHAFT
13501-67010

1KZTE..KZN130

 1
13515A - WASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
90201-10124

1KZTE..KZN130

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
90280-05004

1KZTE..KZN130

 1
13523P - PULLEY, CAMSHAFT TIMING
13523-17010

1KZTE..KZN130

 1
13528 - GEAR, CAMSHAFT DRIVE
13528-67010

1KZTE..KZN130

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-67010

1KZTE..KZN130

 1
13556 - SHAFT, TIMING BELT IDLER
13556-67010

1KZTE..KZN130

 1
13568 - BELT, TIMING
13568-69085

1KZTE..KZN130

 1
13585A - FLANGE, CAMSHAFT TIMING PULLEY, NO.1
13585-67010

1KZTE..KZN130

 1
13711 - VALVE, INTAKE
13711-54020

1KZTE..KZN130

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02053

1KZTE..KZN130

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02053

1KZTE..KZN130

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90504-49001

1KZTE..KZN130

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90504-49001

1KZTE..KZN130

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-23003

1KZTE..KZN130

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-23003

1KZTE..KZN130

 8
13715 - VALVE, EXHAUST
13715-67020

1KZTE..KZN130

 4
13741 - RETAINER, VALVE SPRING
13741-54020

1KZTE..KZN130

 8
13741 - RETAINER, VALVE SPRING
13741-54020

1KZTE..KZN130

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03014

1KZTE..KZN130

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03014

1KZTE..KZN130

 16
13751 - LIFTER, VALVE
13751-54010

1KZTE..KZN130

 8
13751 - LIFTER, VALVE
13751-54010

1KZTE..KZN130

 8
13753 - SHIM, VALVE ADJUSTING
13753-54010

1KZTE..KZN130

厚さ=2.50,MARK=T01

 1
13753-54160

1KZTE..KZN130

厚さ=2.80,MARK=T16

 1
13753-54060

1KZTE..KZN130

厚さ=2.60,MARK=T06

 1
13753-54360

1KZTE..KZN130

厚さ=3.20,MARK=T36

 1
13753-54410

1KZTE..KZN130

厚さ=3.30,MARK=T41

 1
13753-54110

1KZTE..KZN130

厚さ=2.70,MARK=T11

 1
13753-54420

1KZTE..KZN130

厚さ=2.55,MARK=T42

 1
13753-54210

1KZTE..KZN130

厚さ=2.90,MARK=T21

 1
13753-54260

1KZTE..KZN130

厚さ=3.00,MARK=T26

 1
13753-54450

1KZTE..KZN130

厚さ=2.85,MARK=T45

 1
13753-54440

1KZTE..KZN130

厚さ=2.75,MARK=T44

 1
13753-54310

1KZTE..KZN130

厚さ=3.10,MARK=T31

 1
13753-54430

1KZTE..KZN130

厚さ=2.65,MARK=T43

 1
13753-54470

1KZTE..KZN130

厚さ=3.05,MARK=T47

 1
13753-54490

1KZTE..KZN130

厚さ=3.25,MARK=T49

 1
13753-54460

1KZTE..KZN130

厚さ=2.95,MARK=T46

 1
13753-54480

1KZTE..KZN130

厚さ=3.15,MARK=T48

 1
13753 - SHIM, VALVE ADJUSTING
13753-54010

1KZTE..KZN130

厚さ=2.50,MARK=T01

 1
13753-54160

1KZTE..KZN130

厚さ=2.80,MARK=T16

 1
13753-54060

1KZTE..KZN130

厚さ=2.60,MARK=T06

 1
13753-54360

1KZTE..KZN130

厚さ=3.20,MARK=T36

 1
13753-54410

1KZTE..KZN130

厚さ=3.30,MARK=T41

 1
13753-54110

1KZTE..KZN130

厚さ=2.70,MARK=T11

 1
13753-54420

1KZTE..KZN130

厚さ=2.55,MARK=T42

 1
13753-54210

1KZTE..KZN130

厚さ=2.90,MARK=T21

 1
13753-54260

1KZTE..KZN130

厚さ=3.00,MARK=T26

 1
13753-54450

1KZTE..KZN130

厚さ=2.85,MARK=T45

 1
13753-54440

1KZTE..KZN130

厚さ=2.75,MARK=T44

 1
13753-54310

1KZTE..KZN130

厚さ=3.10,MARK=T31

 1
13753-54430

1KZTE..KZN130

厚さ=2.65,MARK=T43

 1
13753-54470

1KZTE..KZN130

厚さ=3.05,MARK=T47

 1
13753-54490

1KZTE..KZN130

厚さ=3.25,MARK=T49

 1
13753-54460

1KZTE..KZN130

厚さ=2.95,MARK=T46

 1
13753-54480

1KZTE..KZN130

厚さ=3.15,MARK=T48

 1
Common parts
90119-14005
91512-80614
91512-80620
Linked diagrams
1709
