KZN130G-GJPGT (1993)
Toyota Hilux
(9308-9511)1KZTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-67010 |
1KZTE..KZN130 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-67050 |
1KZTE..KZN130 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1KZTE..KZN130 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1KZTE..KZN130 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-67010 |
1KZTE..KZN130 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1KZTE..KZN130 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1KZTE..KZN130 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-67010 |
1KZTE..KZN130 |
1 | ||
| 16278G - RING, O(FOR WATER BY-PASS NO.2 PIPE) | ||||
| 96761-24010 |
1KZTE..KZN130 |
1 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-67010 |
1KZTE..KZN130 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1KZTE..KZN130 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1KZTE..KZN130 |
2 | ||
| 16285B - UNION(FOR TURBO WATER HOSE NO.2) | ||||
| 90405-10044 |
1KZTE..KZN130 |
1 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16285-67010 |
1KZTE..KZN130 |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15022 |
1KZTE..KZN130 |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15022 |
1KZTE..KZN130 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-67010 |
1KZTE..KZN130 |
1 | ||
| 16321-67011 |
1KZTE..KZN130 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-67020 |
1KZTE..KZN130 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03097 |
1KZTE..KZN130 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-67020 |
1KZTE..KZN130 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-67010 |
1KZTE..KZN130 |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-67010 |
1KZTE..KZN130 |
1 | ||
| 16361 - FAN | ||||
| 16361-67020 |
1KZTE..KZN130 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-67020 |
1KZTE..KZN130 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-67010 |
1KZTE..KZN130 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-67071 |
1KZTE..KZN130..4FC |
1 | ||
| 16400-67070 |
1KZTE..KZN130..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
1KZTE..KZN130 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1KZTE..KZN130 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1KZTE..KZN130 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54240 |
1KZTE..KZN130 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1KZTE..KZN130 *H,L=220 |
1 | ||
| 90445-12043 |
1KZTE..KZN130 *H,L=360 |
1 | ||
| 90099-04428 |
1KZTE..KZN130 |
2 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1KZTE..KZN130 *H,L=220 |
1 | ||
| 90445-12043 |
1KZTE..KZN130 *H,L=360 |
1 | ||
| 90099-04428 |
1KZTE..KZN130 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1KZTE..KZN130 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1KZTE..KZN130 |
2 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-25025 |
1KZTE..KZN130 |
1 | ||
| 16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK) | ||||
| 16474-54240 |
1KZTE..KZN130 |
4 | ||
| 16470K - HOSE, NO.4(FOR RADIATOR RESERVE TANK) | ||||
| 88714-89105 |
1KZTE..KZN130 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16483-55020 |
1KZTE..KZN130 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54190 |
1KZTE..KZN130 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-71030 |
1KZTE..KZN130 |
1 | ||
| 16473 - SUPPORT(FOR RADIATOR RESERVE TANK) | ||||
| 16473-54240 |
1KZTE..KZN130 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-67050 |
1KZTE..KZN130 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-41006 |
1KZTE..KZN130 |
2 | ||
| 90467-41003 |
1KZTE..KZN130 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-41006 |
1KZTE..KZN130 |
2 | ||
| 90467-41003 |
1KZTE..KZN130 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-67050 |
1KZTE..KZN130 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41006 |
1KZTE..KZN130 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41006 |
1KZTE..KZN130 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-67030 |
1KZTE..KZN130 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-67020 |
1KZTE..KZN130 |
1 | ||
| Common parts | ||||
| 90099-04428 | ||||
| 90105-06220 | ||||
| 90116-06145 | ||||
| 90179-06080 | ||||
| 90179-06293 | ||||
| 90179-06298 | ||||
| 90461-08385 | ||||
| 90468-06073 | ||||
| 90541-11002 | ||||
| 91512-60610 | ||||
| 91512-60614 | ||||
| 91512-60820 | ||||
| 91512-60835 | ||||
| 91512-80610 | ||||
| 91643-80635 | ||||
| 91651-60814 | ||||
| 91651-G0614 | ||||
| 91666-60618 | ||||

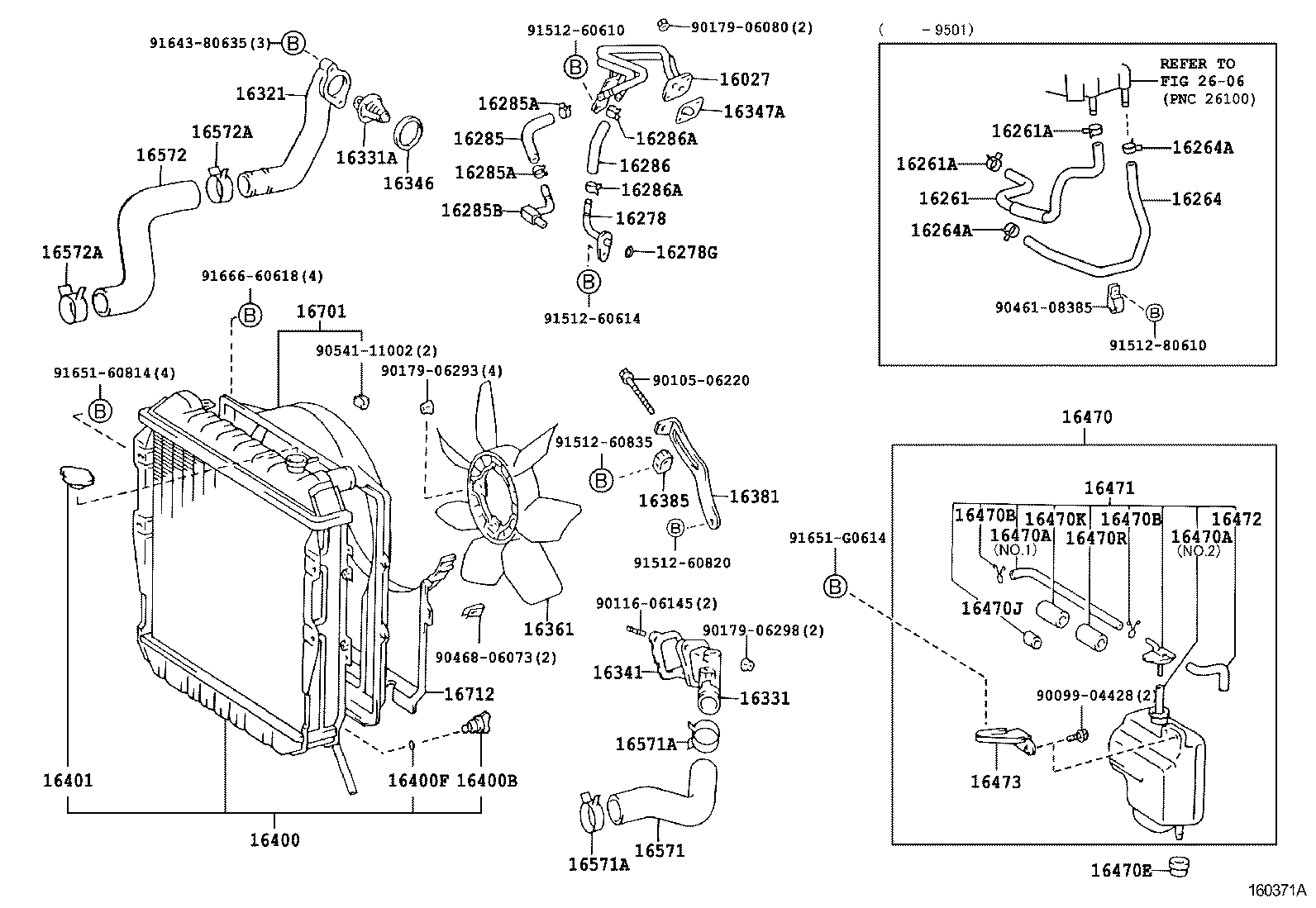

| Linked diagrams | ||||
| 2606 | ||||
