KZN130G-GJMGT (1993)
Toyota Hilux
Production
Aug 1993
-
Nov 1995
Engine
1KZTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9308-9511)1KZTE

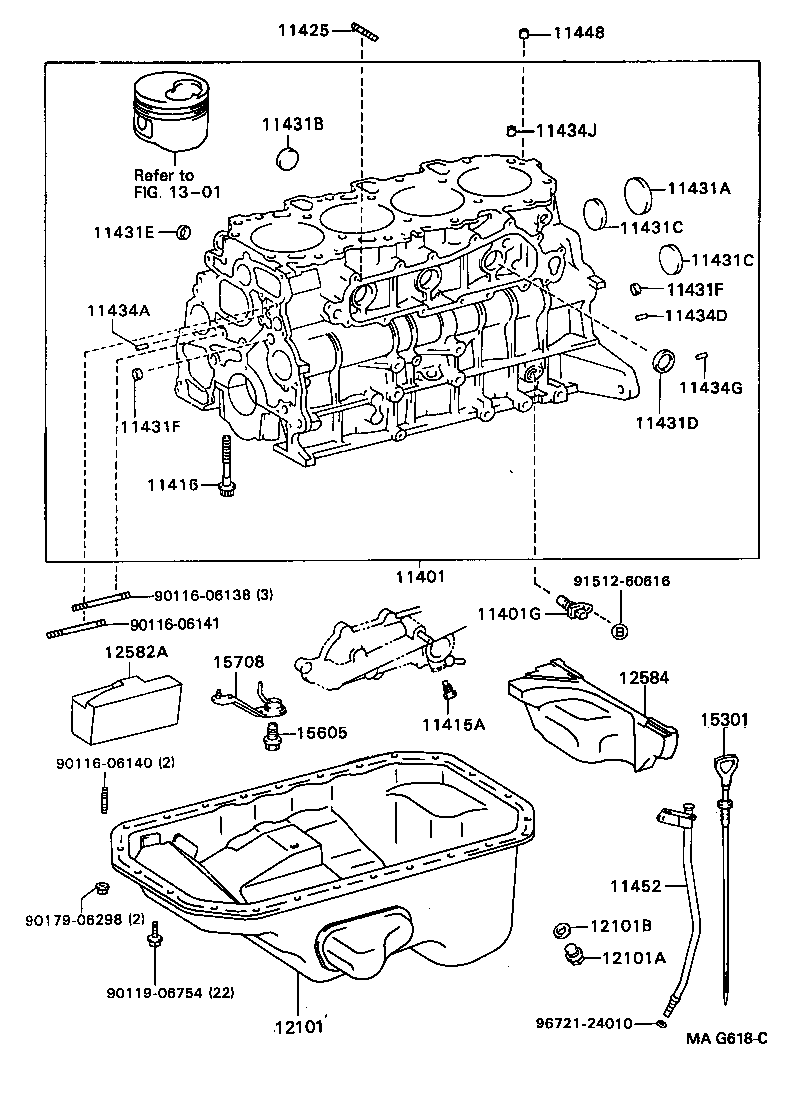

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-69546 |
1KZTE..KZN130 |
1 | ||
| 11401-69545 |
1KZTE..KZN130 |
1 | ||
| 11401G - SENSOR, CRANK POSITION | ||||
| 90919-05005 |
1KZTE..KZN130 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1KZTE..KZN130 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02113 |
1KZTE..KZN130 |
10 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-06141 |
1KZTE..KZN130 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-64500 |
1KZTE..KZN130 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-63500 |
1KZTE..KZN130 |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
1KZTE..KZN130 |
2 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
1KZTE..KZN130 |
2 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90331-35002 |
1KZTE..KZN130 |
3 | ||
| 90331-35004 |
1KZTE..KZN130 |
3 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-62000 |
1KZTE..KZN130 |
1 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 96411-61800 |
1KZTE..KZN130 |
2 | ||
| 96411-41800 |
1KZTE..KZN130 |
2 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 96411-61800 |
1KZTE..KZN130 |
2 | ||
| 96411-41800 |
1KZTE..KZN130 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
1KZTE..KZN130 長さ=18,外径=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
1KZTE..KZN130 長さ=11,外径=6 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
1KZTE..KZN130 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-15016 |
1KZTE..KZN130 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-67010 |
1KZTE..KZN130 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-67020 |
1KZTE..KZN130 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-67070 |
1KZTE..KZN130 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1KZTE..KZN130 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1KZTE..KZN130 |
1 | ||
| 90430-12027 |
1KZTE..KZN130 |
1 | ||
| 12582A - INSULATOR, CYLINDER BLOCK, NO.2 | ||||
| 12582-67010 |
1KZTE..KZN130 |
1 | ||
| 12584 - INSULATOR, CYLINDER BROCK, NO.4 | ||||
| 12584-67020 |
1KZTE..KZN130 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-67020 |
1KZTE..KZN130 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
1KZTE..KZN130 |
4 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-67010 |
1KZTE..KZN130 |
4 | ||
| Common parts | ||||
| 90116-06138 | ||||
| 90116-06140 | ||||
| 90116-06141 | ||||
| 90119-06754 | ||||
| 90179-06298 | ||||
| 91512-60616 | ||||
| 96721-24010 | ||||
| Linked diagrams | ||||
| 1301 | ||||
