GUN125-DTTSX (2020)
Toyota Hilux
Production
Jun 2020
-
Aug 2021
Engine
2GDFTV
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

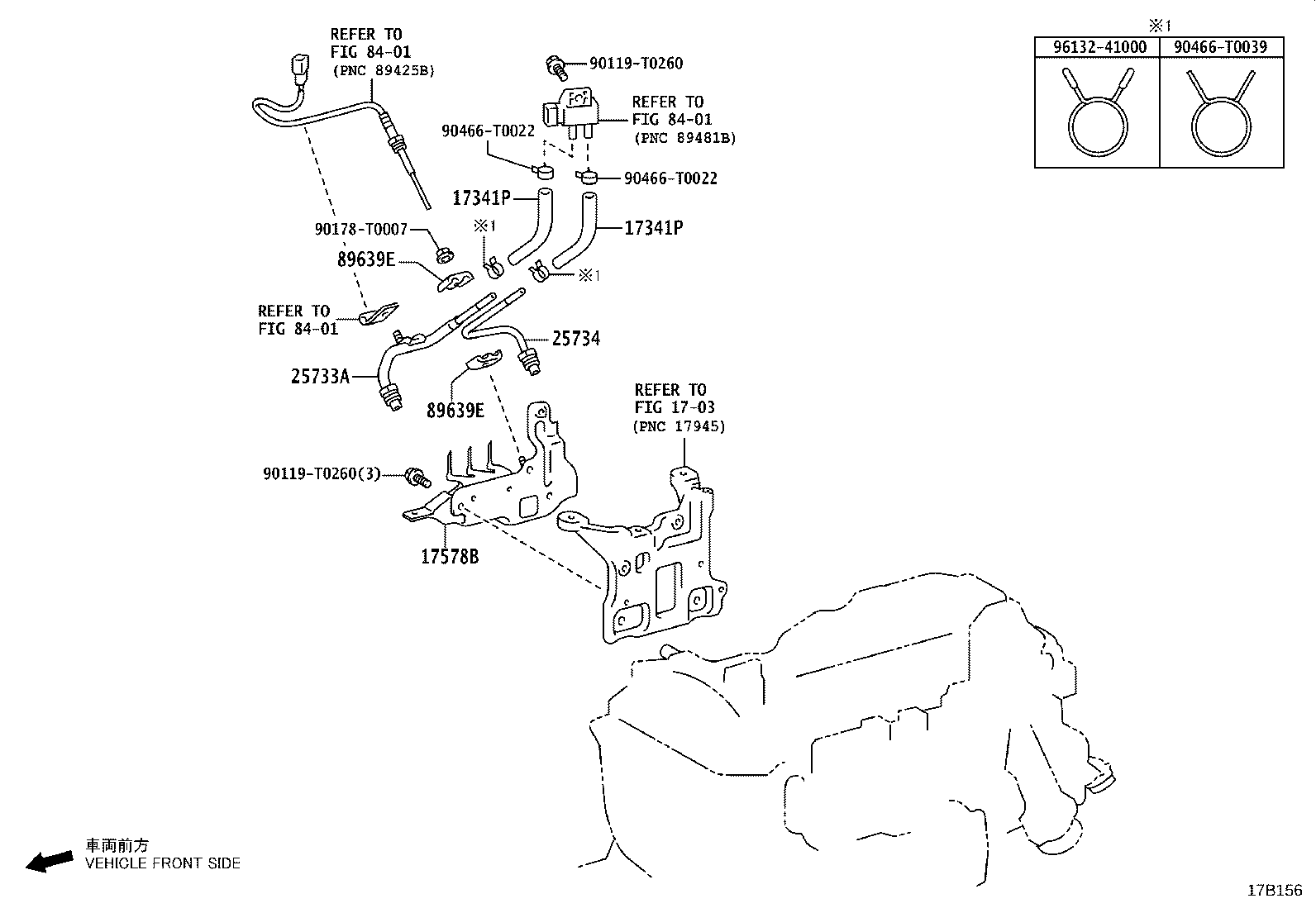

ILLUST NO. 1 OF 2(2006- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341P - HOSE, AIR | ||||
| 17341-0E010 |
2GDFTV..GUN125 ﾀｲ調達部品 |
2 | ||
| 17341P - HOSE, AIR | ||||
| 17341-0E010 |
2GDFTV..GUN125 ﾀｲ調達部品 |
2 | ||
| 17578B - CLAMP, PIPE | ||||
| 17578-0E030 |
2GDFTV..GUN125 |
1 | ||
| 25733A - PIPE, VACUUM, NO.1 | ||||
| 25733-0E010 |
2GDFTV..GUN125 |
1 | ||
| 25734 - PIPE, VACUUM, NO.2 | ||||
| 25734-0E010 |
2GDFTV..GUN125 |
1 | ||
| 89639E - CLAMP | ||||
| 89639-0K010 |
GUN125 |
2 | ||
| 89639E - CLAMP | ||||
| 89639-0K010 |
GUN125 |
2 | ||
| Common parts | ||||
| 90119-T0260 | ||||
| 90178-T0007 | ||||
| 90466-T0022 | ||||
| 90466-T0039 | ||||
| 96132-41000 | ||||
| Linked diagrams | ||||
| 8401 | ||||

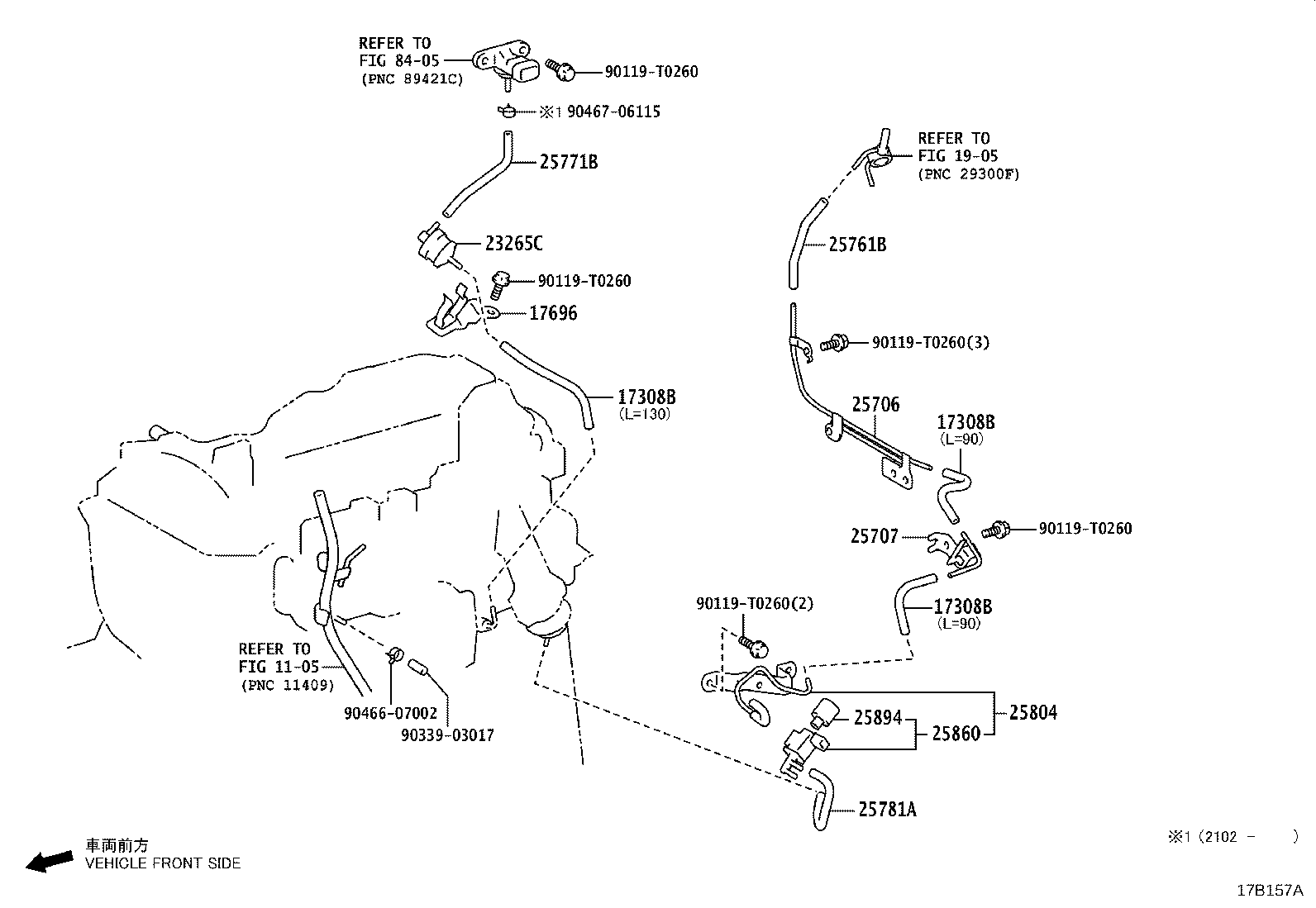

ILLUST NO. 2 OF 2(2006- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308B - HOSE SUB-ASSY, VACUUM | ||||
| 90999-92002 |
2GDFTV..GUN125 長さ=130 |
1 | ||
| 90999-92002 |
2GDFTV..GUN125 長さ=90 |
2 | ||
| 17308B - HOSE SUB-ASSY, VACUUM | ||||
| 90999-92002 |
2GDFTV..GUN125 長さ=130 |
1 | ||
| 90999-92002 |
2GDFTV..GUN125 長さ=90 |
2 | ||
| 17308B - HOSE SUB-ASSY, VACUUM | ||||
| 90999-92002 |
2GDFTV..GUN125 長さ=130 |
1 | ||
| 90999-92002 |
2GDFTV..GUN125 長さ=90 |
2 | ||
| 17696 - BRACKET, GAS FILTER | ||||
| 17696-0E030 |
2GDFTV..GUN125 |
1 | ||
| 23265C - FILTER, GAS | ||||
| 90917-11038 |
2GDFTV..GUN125 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-0E010 |
2GDFTV..GUN125 ﾀｲ調達部品 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-0E010 |
2GDFTV..GUN125 ﾀｲ調達部品 |
1 | ||
| 25761B - HOSE, VACCUM TRANSMITTING, NO.1 | ||||
| 25761-0E010 |
2GDFTV..GUN125 ﾀｲ調達部品 |
1 | ||
| 25771B - HOSE, VACCUM TRANSMITTING, NO.2 | ||||
| 25771-0E030 |
2GDFTV..GUN125 |
1 | ||
| 25781A - HOSE, VACUUM TRANSMITTING, NO.3 | ||||
| 25781-0E010 |
2GDFTV..GUN125 ﾀｲ調達部品 |
1 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-11010 |
2GDFTV..GUN125 ﾏｰｸ無し |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-30070 |
2GDFTV..GUN125 ﾏｰｸ無し |
1 | ||
| 25894 - FILTER, NO.1 | ||||
| 25894-11010 |
2GDFTV..GUN125 (J) |
1 | ||
| Common parts | ||||
| 90119-T0260 | ||||
| 90339-03017 | ||||
| 90466-07002 | ||||
| 90467-06115 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1905 | ||||
| 8405 | ||||
