GUN125-DTTSX (2020)

Toyota Hilux

Production Jun 2020 - Aug 2021
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )

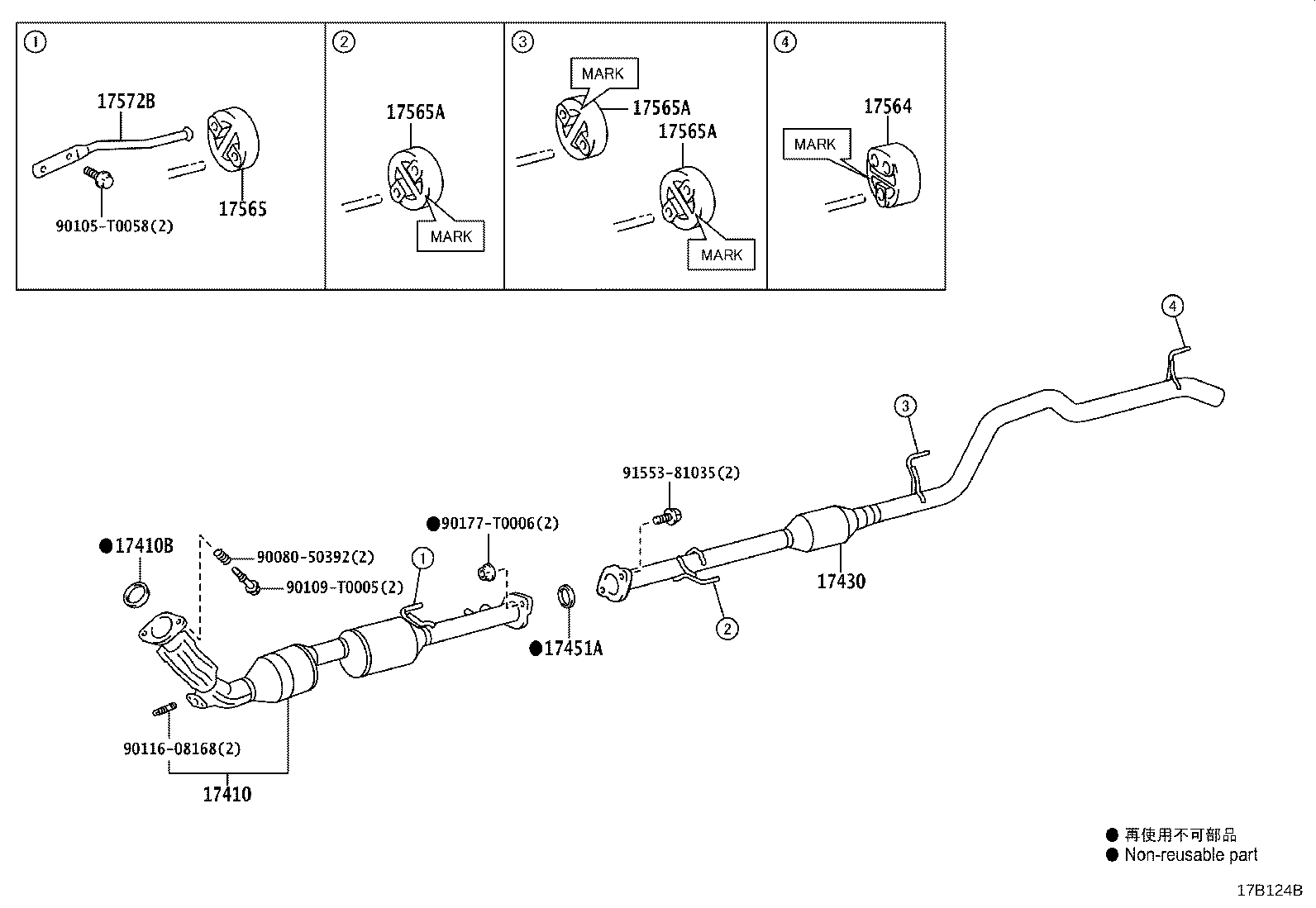

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451A 17564 17565 17565A 17565A 17565A 17572B 9008050392 90105T0058 90109T0005 9011608168 90177T0006 9155381035
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0E110

2GDFTV..GUN125

 1
17410B - GASKET, EXHAUST PIPE
17451-0L050

2GDFTV..GUN125

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0E040

2GDFTV..GUN125

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-06076

2GDFTV..GUN125

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0L100

2GDFTV..GUN125

ﾏｰｸ:17565−0L100

 1
17565-0L120

2GDFTV..GUN125

ﾏｰｸ:17565−0L120

 1
17565-0L130

2GDFTV..GUN125

ﾏｰｸ:17565−0L130

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0P240

2GDFTV..GUN125

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0L090

2GDFTV..GUN125

ﾏｰｸ:17565−0L090

 3
17565-0P240

2GDFTV..GUN125

ﾏｰｸ無し

 3
17565-0L080

2GDFTV..GUN125

ﾏｰｸ:17565−0L080

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0L090

2GDFTV..GUN125

ﾏｰｸ:17565−0L090

 3
17565-0P240

2GDFTV..GUN125

ﾏｰｸ無し

 3
17565-0L080

2GDFTV..GUN125

ﾏｰｸ:17565−0L080

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0L090

2GDFTV..GUN125

ﾏｰｸ:17565−0L090

 3
17565-0P240

2GDFTV..GUN125

ﾏｰｸ無し

 3
17565-0L080

2GDFTV..GUN125

ﾏｰｸ:17565−0L080

 3
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-0L040

2GDFTV..GUN125

 1
Common parts
90080-50392
90105-T0058
90109-T0005
90116-08168
90177-T0006
91553-81035
