GUN125-DTTSH (2017)

Toyota Hilux

Production Aug 2017 - May 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )

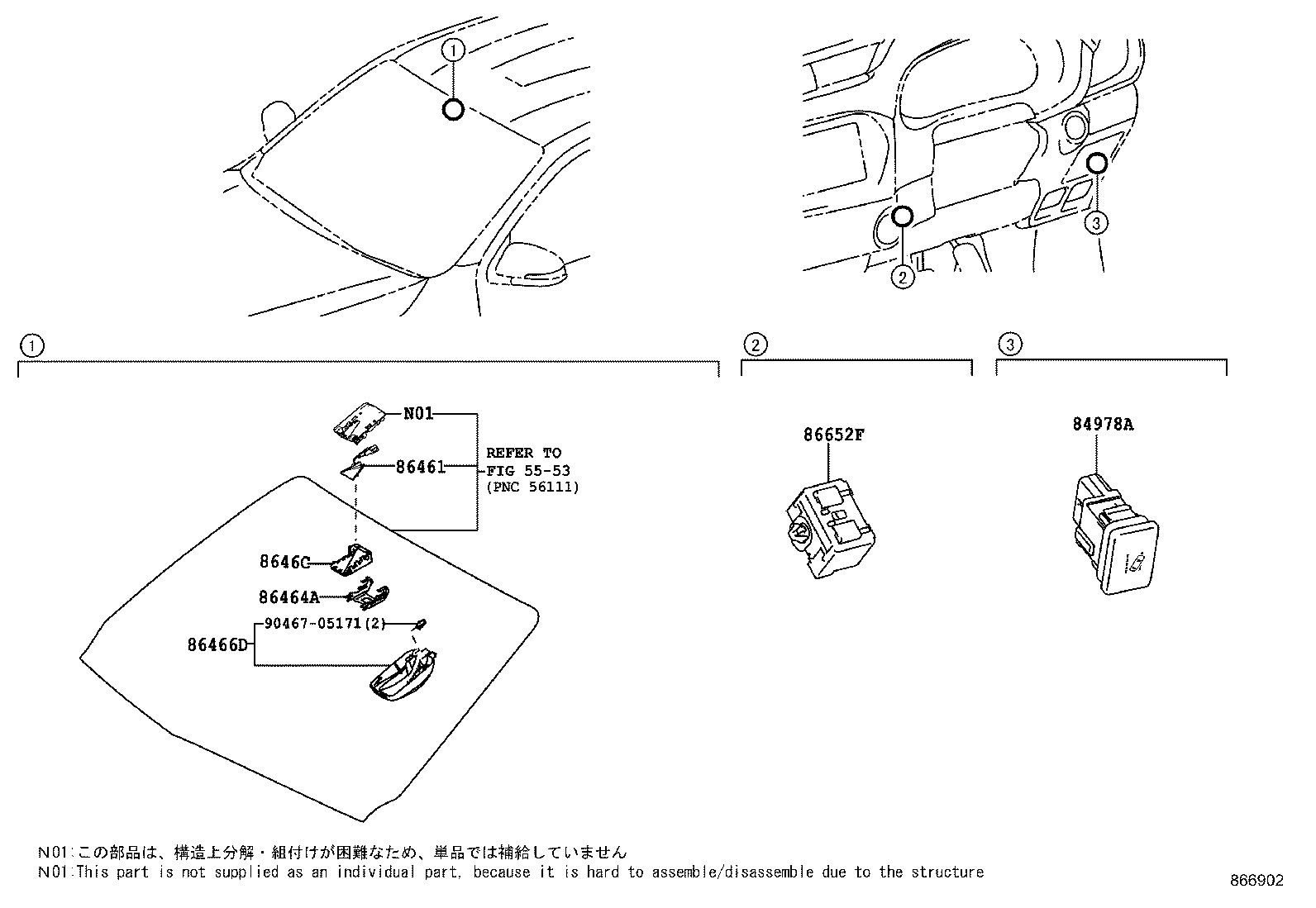

Click highlighted areas on diagram

diagram 5553 84978A 86461 86464A 86466D 8646C 86652F 9046705171
Part # Description Qty Price
86461 - HOOD, FORWARD RECOGNITION
86401-71010

GUN125..X

予防安全ﾊﾟｯｹｰｼﾞ−有り

 1
86464A - LATCH, FORWARD RECOGNITION
86464-26010

GUN125..X

予防安全ﾊﾟｯｹｰｼﾞ−有り

 1
86466D - COVER, FORWARD RECOGNITION, NO.1
86466-71030

GUN125..X

予防安全ﾊﾟｯｹｰｼﾞ−有り,品番ﾗﾍﾞﾙ=86466−71030

 1
8646C - CAMERA, FORWARD RECOGNITION
8646C-71010

GUN125..X

予防安全ﾊﾟｯｹｰｼﾞ−有り,品番ﾗﾍﾞﾙ=8646C−71010

 1
Common parts
90467-05171
Linked diagrams
5553
