GUN125-DTTSH (2017)

Toyota Hilux

Production Aug 2017 - May 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )

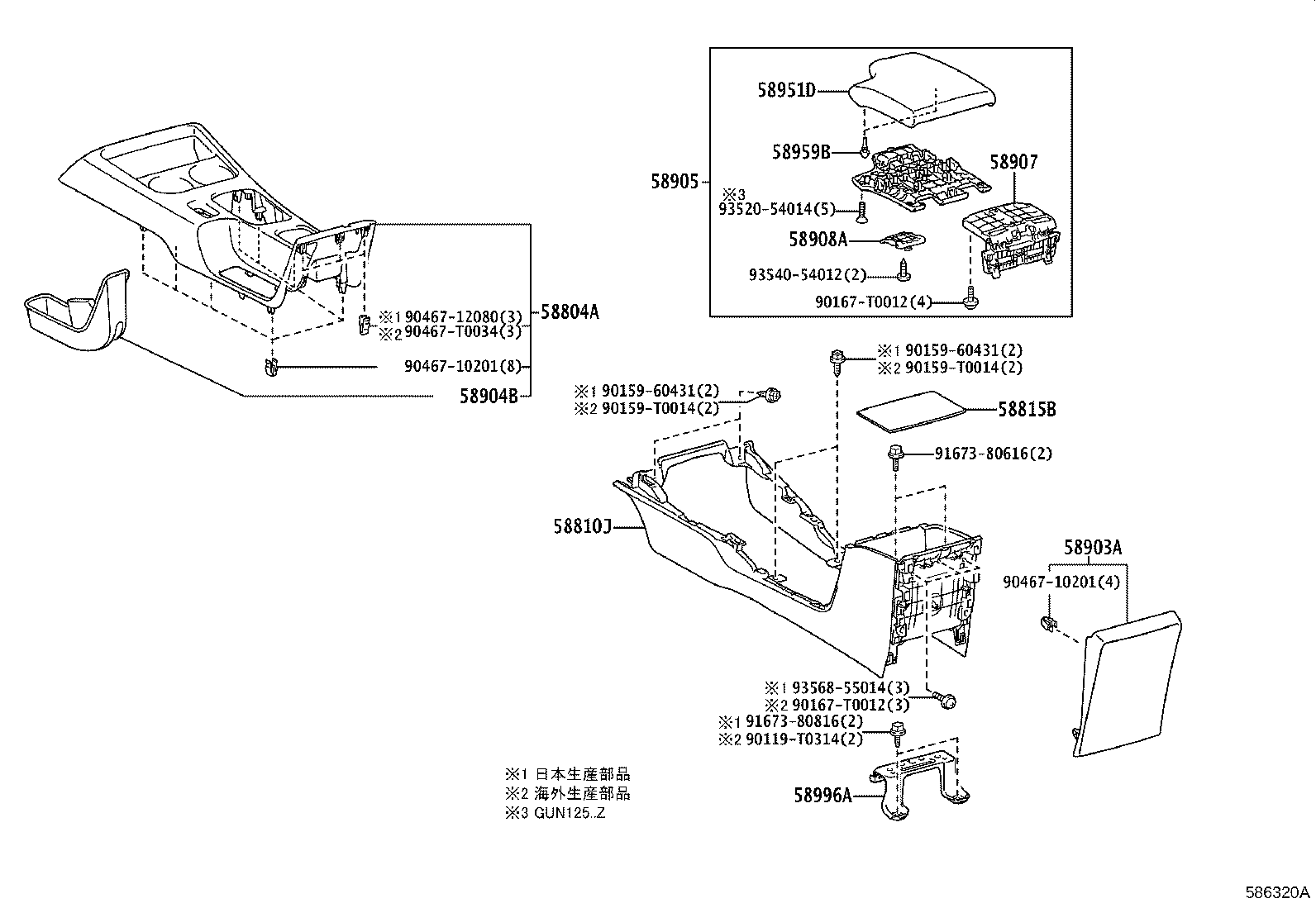

Click highlighted areas on diagram

diagram 58804A 58810J 58815B 58903A 58904B 58905 58907 58908A 58951D 58959B 58996A 90119T0314 9015960431 9015960431 90159T0014 90159T0014 90167T0012 90167T0012 9046710201 9046710201 9046712080 90467T0034 9167380616 9167380816 9352054014 9354054012 9356855014
Part # Description Qty Price
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-KK090C1

GUN125..X

BLACK/GRAY,TRIM2#

 1
58810J - BOX ASSY, CONSOLE
58810-KK250

GUN125

 1
58810-KK250C0

GUN125..X

BLACK,TRIM2#

 1
58815B - CARPET, CONSOLE BOX
58815-KK010

GUN125

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-KK020C0

GUN125..X

BLACK,TRIM2#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-KK060C0

GUN125..X

BLACK,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-KK010C7

GUN125..X

BLACK/BLACK,TRIM2#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-KK010C0

GUN125

BLACK,TRIM2#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-KK010

GUN125

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-KK010C2

GUN125..X

BLACK,TRIM2#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-T0008

GUN125

 2
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-KK020

GUN125

 1
Common parts
90119-T0314
90159-60431
90159-T0014
90167-T0012
90467-10201
90467-12080
90467-T0034
91673-80616
91673-80816
93520-54014
93540-54012
93568-55014
