GUN125-DTTSH (2017)
Toyota Hilux
Production
Aug 2017
-
May 2020
Engine
2GDFTV
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

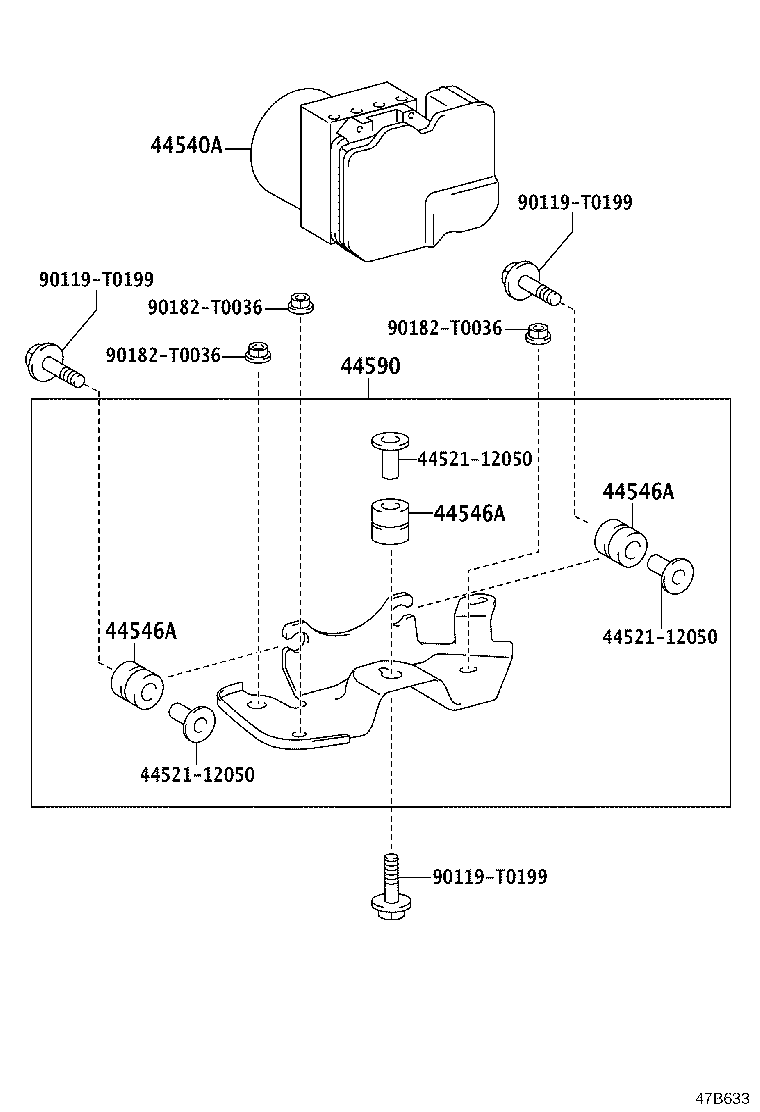

ILLUST NO. 2 OF 2(1708- )
Click highlighted areas on diagram
ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540A - ACTUATOR ASSY, VSC | ||||
| 44050-71440 |
GUN125..X |
1 | ||
| 44050-71E70 |
GUN125..X 予防安全ﾊﾟｯｹｰｼﾞ−有り |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-0K010 |
GUN125 (L) |
3 | ||
| 44546-12120 |
GUN125 (J) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-0K010 |
GUN125 (L) |
3 | ||
| 44546-12120 |
GUN125 (J) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-0K010 |
GUN125 (L) |
3 | ||
| 44546-12120 |
GUN125 (J) |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-0K150 |
GUN125 |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-T0199 | ||||
| 90182-T0036 | ||||
ILLUST NO. 1 OF 2(1708- )
Click highlighted areas on diagram
ﾌﾞﾚｰｷﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-KK020 |
GUN125 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10307 |
GUN125 |
1 | ||
| 90412-T0009 |
GUN125 (L) |
1 | ||
| 90412-10307 |
GUN125 (J) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-T0008 |
GUN125 (L) |
1 | ||
| 90412-10302 |
GUN125 (J) |
1 | ||
| 90412-10302 |
GUN125 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10308 |
GUN125 |
1 | ||
| 90412-10308 |
GUN125 (J) |
1 | ||
| 90412-T0010 |
GUN125 (L) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-KK030 |
GUN125 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2098 |
GUN125 |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2098 |
GUN125 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-KK020 |
GUN125 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-KK030 |
GUN125 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-KK020 |
GUN125 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47321-KK020 |
GUN125 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47322-KK030 |
GUN125 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47323-KK050 |
GUN125 |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2107 |
GUN125 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90947-T2111 |
GUN125 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2107 |
GUN125 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90947-T2111 |
GUN125 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-KK020 |
GUN125 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-KK040 |
GUN125 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-KK120 |
GUN125 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-KK090 |
GUN125 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-0K080 |
GUN125 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-0K080 |
GUN125 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-KK010 |
GUN125 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-KK010 |
GUN125 |
1 | ||
| 47353A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.2 | ||||
| 47353-KK010 |
GUN125 |
1 | ||
| 47354A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.2 | ||||
| 47354-KK010 |
GUN125 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-KK020 |
GUN125 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 47355-KK010 |
GUN125 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-KK020 |
GUN125 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 47355-KK010 |
GUN125 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47356 - BRACKET, FLEXIBLE HOSE, NO.6 | ||||
| 47356-KK010 |
GUN125 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90461-T0007 |
GUN125 |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-T1032 |
GUN125 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-T1033 |
GUN125 |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-T1006 |
GUN125 |
5 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90461-T0001 |
GUN125 |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-T1003 |
GUN125 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-T1016 |
GUN125 |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-T1027 |
GUN125 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-T1028 |
GUN125 |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0126 | ||||
| 90119-T0127 | ||||
| 90119-T0166 | ||||
| 90119-T0319 | ||||
| 90119-T0423 | ||||
| 90468-T0004 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
