GUN125-DTTSH (2017)

Toyota Hilux

Production Aug 2017 - May 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )

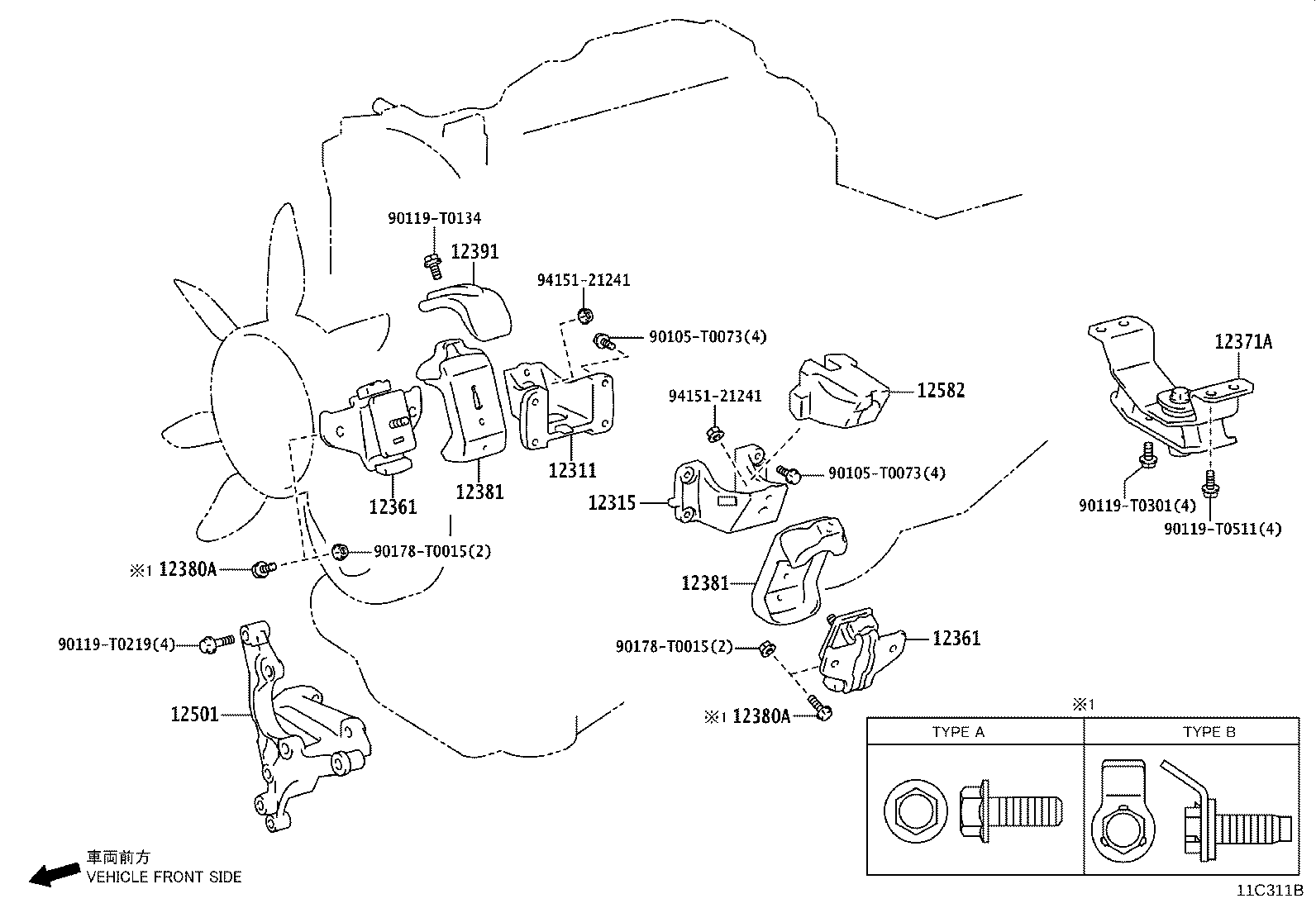

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371A 12380A 12380A 12381 12381 12391 12501 12582 90105T0073 90105T0073 90119T0134 90119T0219 90119T0301 90119T0511 90178T0015 90178T0015 9415121241 9415121241
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-0E020

2GDFTV..GUN125

*582

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-0E010

2GDFTV..GUN125

*582

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-0L020

2GDFTV..GUN125

*231,*501,*502,*468

 2
12361-30170

2GDFTV..GUN125

*272

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-0L020

2GDFTV..GUN125

*231,*501,*502,*468

 2
12361-30170

2GDFTV..GUN125

*272

 2
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0L210

2GDFTV..GUN125

 1
12380A - BOLT(FOR ENGINE MOUNTING INSURATOR)
90105-T0174

2GDFTV..GUN125

TYPE A:ｲﾗｽﾄ参照

 4
90910-03003

2GDFTV..GUN125

TYPE B:ｲﾗｽﾄ参照

 4
12380A - BOLT(FOR ENGINE MOUNTING INSURATOR)
90105-T0174

2GDFTV..GUN125

TYPE A:ｲﾗｽﾄ参照

 4
90910-03003

2GDFTV..GUN125

TYPE B:ｲﾗｽﾄ参照

 4
12381 - STABILIZER, ENGINE MOUNTING
12381-30090

2GDFTV..GUN125

*272

 2
12381-0L080

2GDFTV..GUN125

*231,*501,*502,*468

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-30090

2GDFTV..GUN125

*272

 2
12381-0L080

2GDFTV..GUN125

*231,*501,*502,*468

 2
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-0L010

2GDFTV..GUN125

 1
12501 - BRACKET SUB-ASSY, ALTERNATOR
12501-0E011

2GDFTV..GUN125

*582

 1
12501-0E010

2GDFTV..GUN125

*582

 1
12582 - INSULATOR, CYLINDER BLOCK, NO.2
12582-0E010

2GDFTV..GUN125

*582

 1
Common parts
90105-T0073
90119-T0134
90119-T0219
90119-T0301
90119-T0511
90178-T0015
94151-21241
