GUN125-DTTSH (2017)

Toyota Hilux

Production Aug 2017 - May 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1708- )

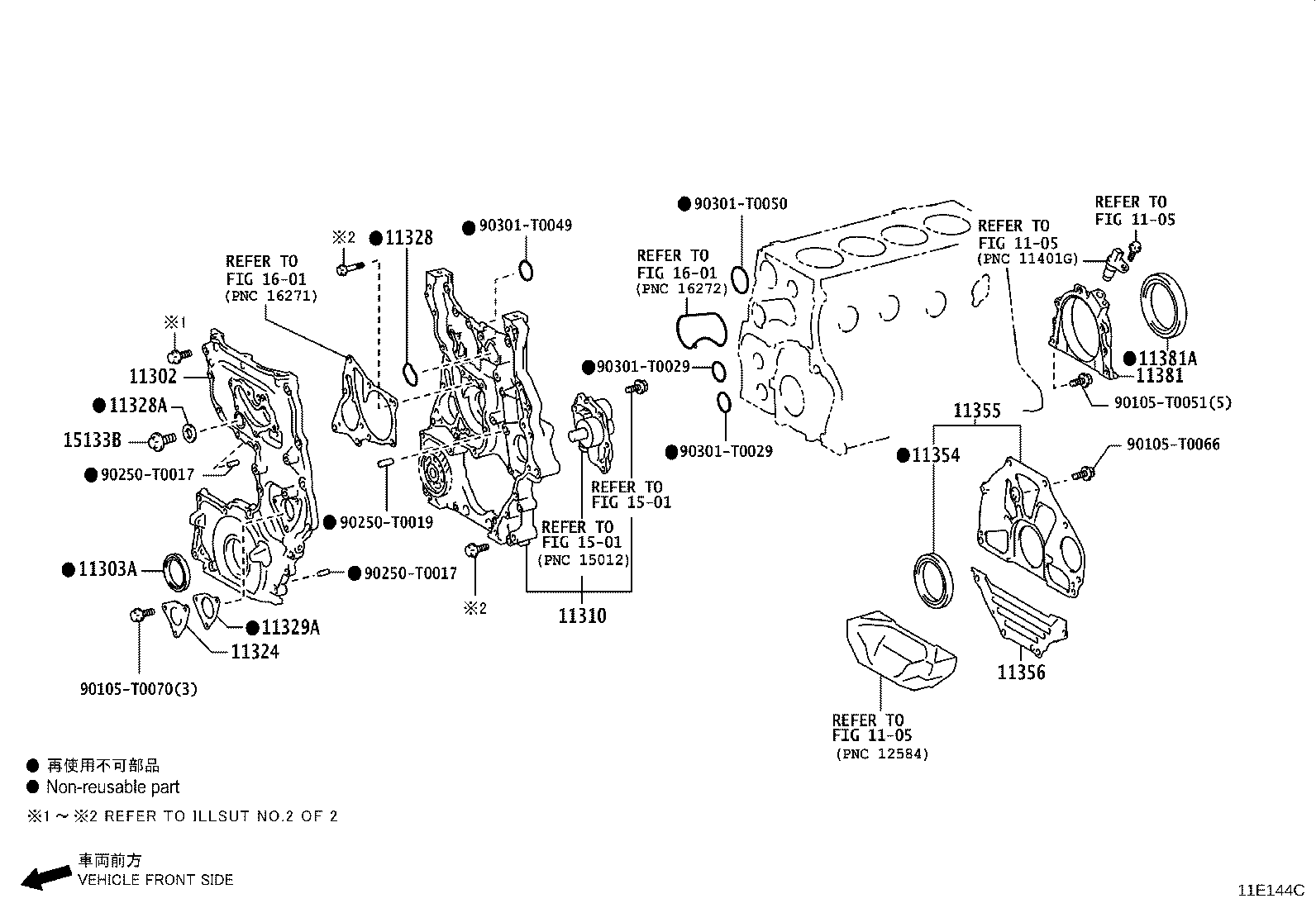

Click highlighted areas on diagram

diagram 1105 1105 1105 11302 11303A 11310 11324 11328 11328A 11329A 11354 11355 11356 11381 11381A 1501 1501 15133B 1601 1601 90105T0051 90105T0066 90105T0070 90250T0017 90250T0017 90250T0019 90301T0029 90301T0029 90301T0049 90301T0050
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-0E010

2GDFTV..GUN125

*582

 1
11303A - SEAL, OIL(FOR CRANKSHAFT FRONT)
90311-T0054

2GDFTV..GUN125

*582

 1
11310 - COVER ASSY, TIMING CHAIN
11310-0E010

2GDFTV..GUN125

*582

 1
11324 - PLATE, TIMING CHAIN COVER
11324-0E010

2GDFTV..GUN125

*582

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-0E010

2GDFTV..GUN125

*582

 1
11328A - GASKET, TIMING BELT COVER, NO.1
11328-11080

2GDFTV..GUN125

*582

 1
11328-38030

2GDFTV..GUN125

*582

 1
11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2
11329-0E010

2GDFTV..GUN125

*582

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-0L020

2GDFTV..GUN125

*582

 1
11355 - PLATE, REAR END
11355-0E010

2GDFTV..GUN125

*582

 1
11356 - PLATE, REAR END, NO.2
11356-0L012

2GDFTV..GUN125

 1
11356-0L011

2GDFTV..GUN125

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-0E010

2GDFTV..GUN125

*582

 1
11381A - SEAL, ENGINE REAR OIL
90311-T0046

2GDFTV..GUN125

*582

 1
15133B - PLUG, OIL PUMP RELIEF VALVE
15133-38071

2GDFTV..GUN125

 1
Common parts
90105-T0051
90105-T0066
90105-T0070
90250-T0017
90250-T0019
90301-T0029
90301-T0049
90301-T0050
Linked diagrams
1105
1501
1601
