GUN125-DTTHX (2020)
Toyota Hilux
Production
Jun 2020
-
Aug 2021
Engine
2GDFTV
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2006- )

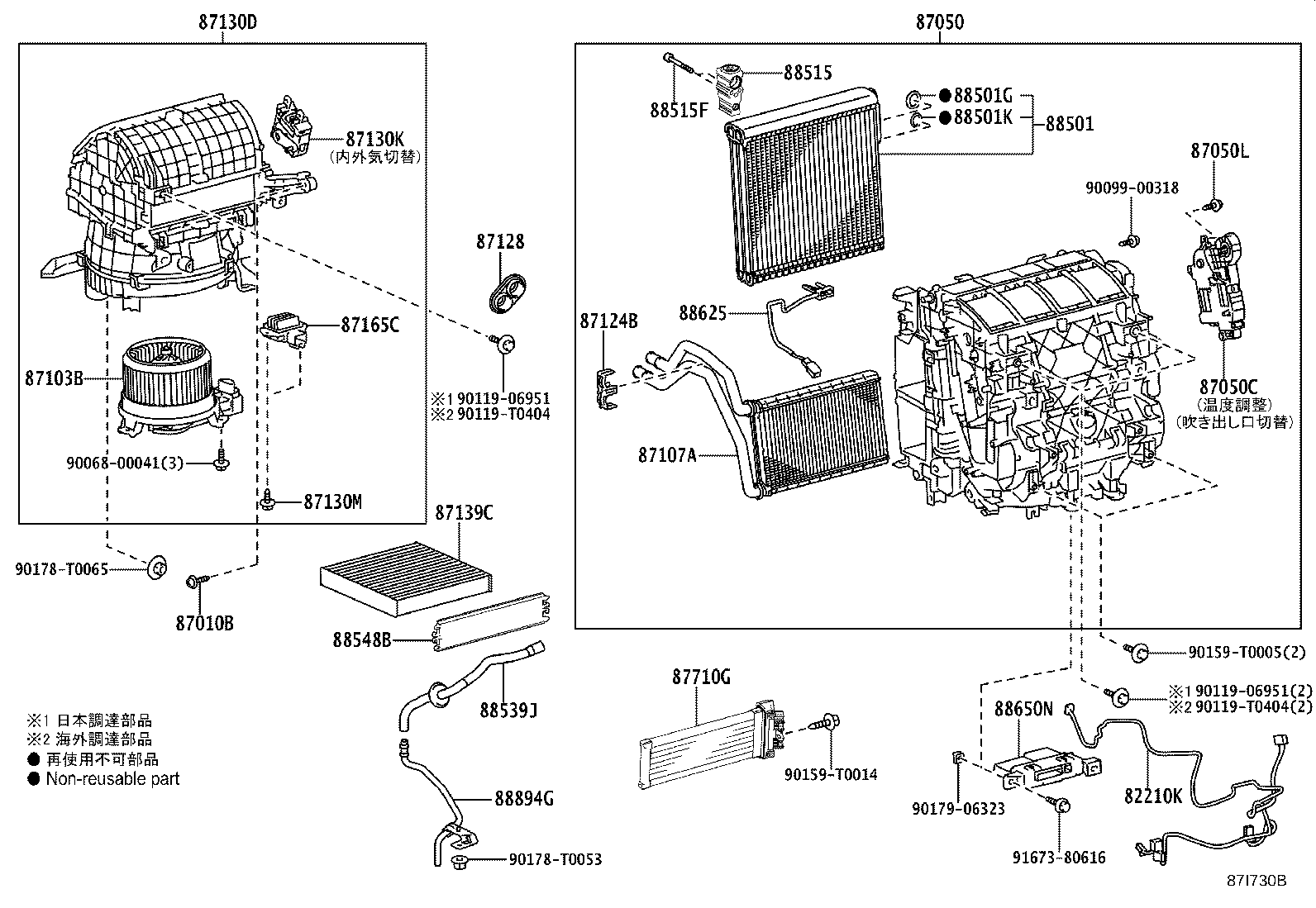

Click highlighted areas on diagram
ｵｰﾄｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-0K050 |
GUN125..Z |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90068-00042 |
GUN125 |
2 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KM80 |
GUN125..X |
1 | ||
| 87050-0KP00 |
GUN125..Z |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-0K210 |
GUN125..Z |
1 | ||
| 87050L - SCREW(FOR AIR CONDITIONER RADIATOR) | ||||
| 90068-00042 |
GUN125 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K381 |
GUN125 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K110 |
GUN125 |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-06140 |
GUN125 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K180 |
GUN125 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K461 |
GUN125..Z |
1 | ||
| 87130-0K471 |
GUN125..X |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0K251 |
GUN125..Z |
1 | ||
| 87130M - SCREW(FOR BLOWER) | ||||
| 90068-00042 |
GUN125 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0K070 |
GUN125 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-58010 |
GUN125 脱臭ﾌｨﾙﾀ |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-0K060 |
GUN125..Z |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-0K100 |
GUN125 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K560 |
GUN125 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90068-14044 |
GUN125 内径=10.2,外径=15.0 |
1 | ||
| 88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID) | ||||
| 90068-14043 |
GUN125 内径=13.4,外径=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K590 |
GUN125 |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90068-04062 |
GUN125 |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K390 |
GUN125 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-06330 |
GUN125 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K020 |
GUN125 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K420 |
GUN125..X |
1 | ||
| 88650-0K720 |
GUN125..Z |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K020 |
GUN125 |
1 | ||
| Common parts | ||||
| 90068-00041 | ||||
| 90099-00318 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0053 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
(2006- )

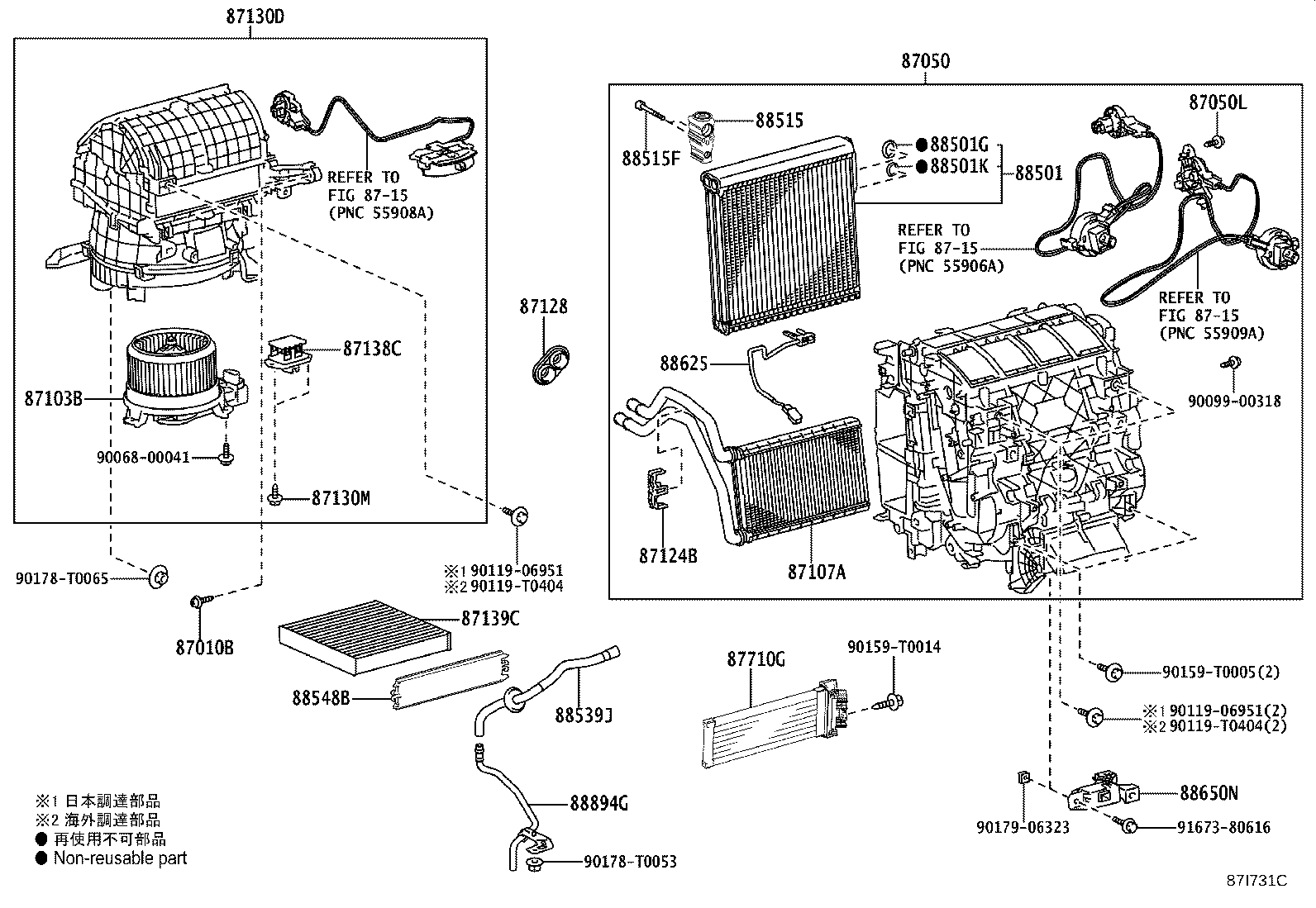

Click highlighted areas on diagram
ﾏﾆｭｱﾙｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90068-00042 |
GUN125 |
2 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KM80 |
GUN125..X |
1 | ||
| 87050-0KP00 |
GUN125..Z |
1 | ||
| 87050L - SCREW(FOR AIR CONDITIONER RADIATOR) | ||||
| 90068-00042 |
GUN125 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K381 |
GUN125 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K110 |
GUN125 |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-06140 |
GUN125 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K180 |
GUN125 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K461 |
GUN125..Z |
1 | ||
| 87130-0K471 |
GUN125..X |
1 | ||
| 87130M - SCREW(FOR BLOWER) | ||||
| 90068-00042 |
GUN125 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K360 |
GUN125..X |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0K070 |
GUN125 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-58010 |
GUN125 脱臭ﾌｨﾙﾀ |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-0K100 |
GUN125 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K560 |
GUN125 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90068-14044 |
GUN125 内径=10.2,外径=15.0 |
1 | ||
| 88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID) | ||||
| 90068-14043 |
GUN125 内径=13.4,外径=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K590 |
GUN125 |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90068-04062 |
GUN125 |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K390 |
GUN125 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-06330 |
GUN125 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K020 |
GUN125 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K420 |
GUN125..X |
1 | ||
| 88650-0K720 |
GUN125..Z |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K020 |
GUN125 |
1 | ||
| Common parts | ||||
| 90068-00041 | ||||
| 90099-00318 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0053 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
