GUN125-DTTHX (2020)

Toyota Hilux

Production Jun 2020 - Aug 2021
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )

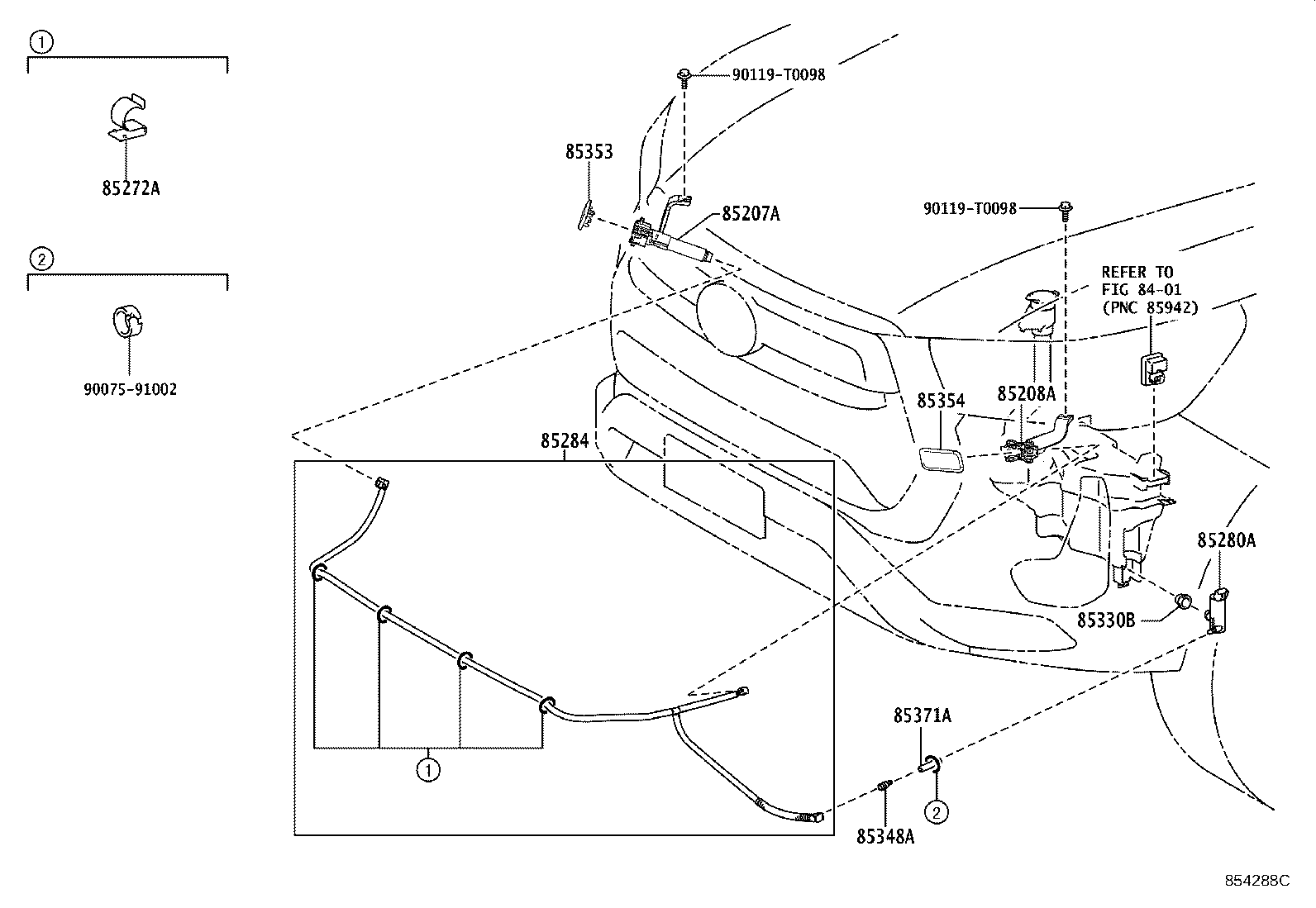

Click highlighted areas on diagram

diagram 8401 85207A 85208A 85272A 85280A 85284 85330B 85348A 85353 85354 85371A 9007591002 90119T0098 90119T0098
Part # Description Qty Price
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-0K050

GUN125..Z

 1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-0K050

GUN125..Z

 1
85272A - CLAMP, HEADLAMP CLEANER, NO.1
90075-90512

GUN125..Z

 4
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-33030

GUN125..Z

 1
85284 - HOSE ASSY, HEADLAMP CLEANER WASHER
85271-0K050

GUN125..Z

 1
85330B - BUSH, HEADLAMP CLEANER WASHER JAR
90099-32089

GUN125..Z

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
90075-17012

GUN125..Z

 1
85353 - COVER, HEADLAMP WASHER, RH
85044-0K140J1

GUN125..Z

DK. BLUE MC.,8X8

 1
85044-0K140B0

GUN125..Z

SILVER ME.,1D6

 1
85044-0K140A0

GUN125..Z

SUPER WHITE 2,040

 1
85044-0K140C0

GUN125..Z

ATTITUDE BLACK MC.,218

 1
85044-0K140G0

GUN125..Z

OXIDE BRONZE ME.,6X1

 1
85354 - COVER, HEADLAMP WASHER, LH
85045-0K140C0

GUN125..Z

ATTITUDE BLACK MC.,218

 1
85045-0K140G0

GUN125..Z

OXIDE BRONZE ME.,6X1

 1
85045-0K140A0

GUN125..Z

SUPER WHITE 2,040

 1
85045-0K140B0

GUN125..Z

SILVER ME.,1D6

 1
85045-0K140J1

GUN125..Z

DK. BLUE MC.,8X8

 1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
90075-15053

GUN125..Z

長さ=35

 1
Common parts
90075-91002
90119-T0098
Linked diagrams
8401
