GUN125-DTTHX (2020)

Toyota Hilux

Production Jun 2020 - Aug 2021
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )

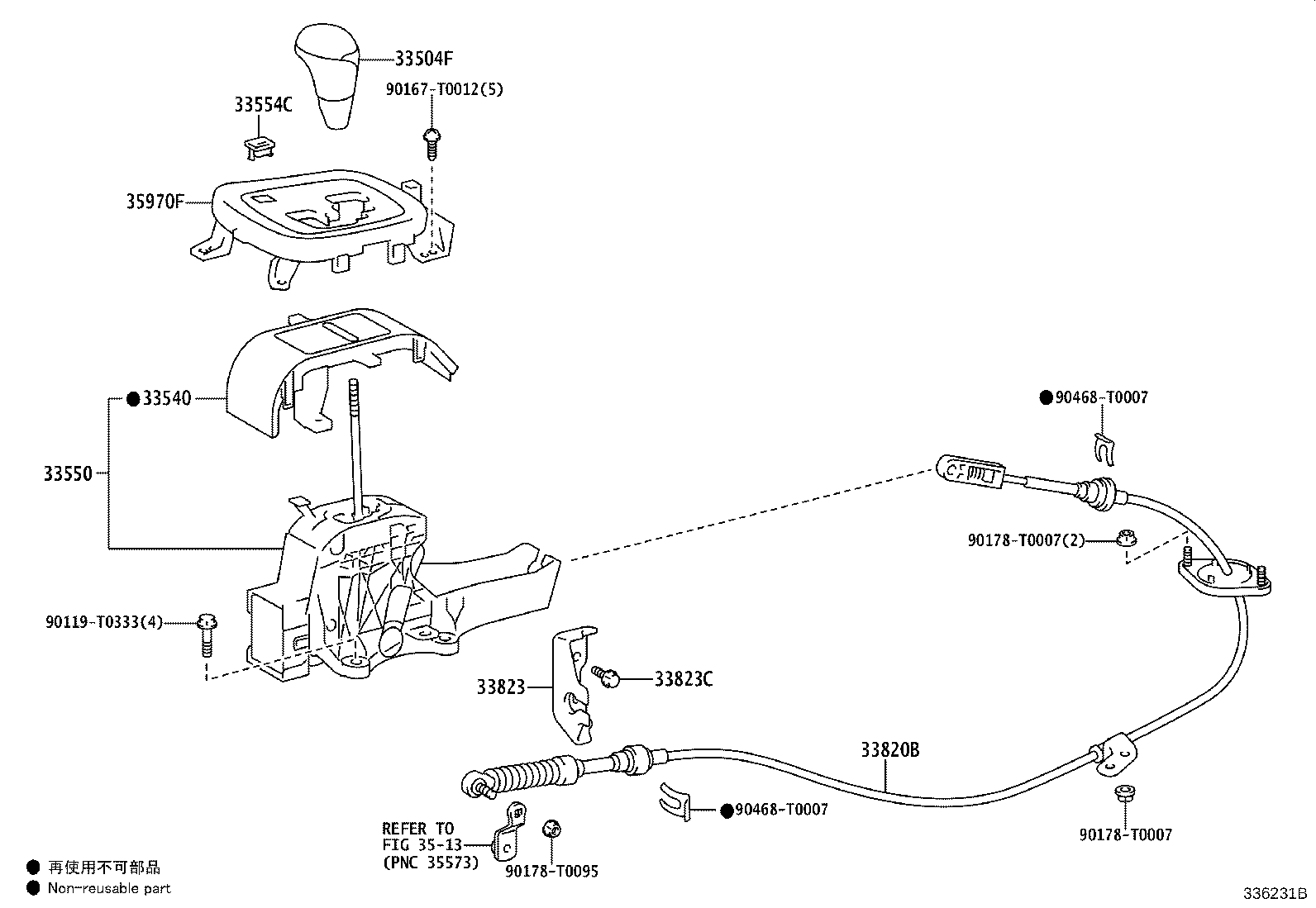

Click highlighted areas on diagram

diagram 33504F 33540 33550 33554C 33820B 33823 33823C 3513 35970F 90119T0333 90167T0012 90178T0007 90178T0007 90178T0095 90468T0007 90468T0007
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0K131C0

GUN125..X

BLACK,TRIM2#

 1
33504-0K121C0

GUN125..Z

BLACK,TRIM2#

 1
33540 - PLATE ASSY, SHIFT LEVER
33540-0K040

GUN125

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-0K160

GUN125..X

 1
33550-0K170

GUN125..Z

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-0K020

GUN125

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0K171

GUN125

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-KK010

GUN125

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-T0102

GUN125

 2
35970F - HOUSING ASSY, POSITION INDICATOR
35970-0K310

GUN125..Z

 1
35970-0K180

GUN125..X

 1
Common parts
90119-T0333
90167-T0012
90178-T0007
90178-T0095
90468-T0007
Linked diagrams
3513
