GUN125-DTTHH (2017)

Toyota Hilux

Production Aug 2017 - May 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )Z

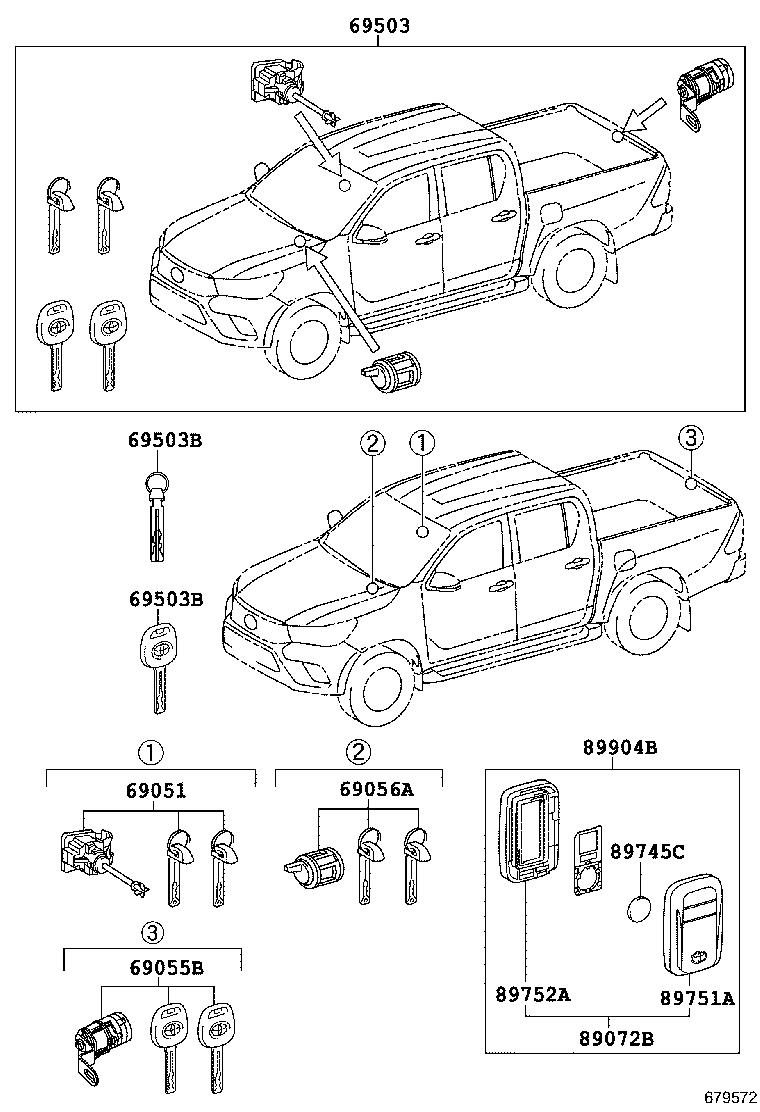

Click highlighted areas on diagram

diagram 69051 69055B 69056A 69503 69503B 69503B 89072B 89745C 89751A 89752A 89904B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-0K230

GUN125..Z

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-0K080

GUN125..Z

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-0K060

GUN125..Z

 1
69503 - CYLINDER SET, LOCK
69005-0K400

GUN125..Z

 1
69503B - KEY, CUT
69515-0K120

GUN125..Z

ﾏｽﾀｰｷｰ,W(*68),内溝ﾀｲﾌﾟ

 2
69515-33110

GUN125..Z

ﾏｽﾀｰｷｰ,W(*68),ｽﾏｰﾄｷｰ用

 2
69503B - KEY, CUT
69515-0K120

GUN125..Z

ﾏｽﾀｰｷｰ,W(*68),内溝ﾀｲﾌﾟ

 2
69515-33110

GUN125..Z

ﾏｽﾀｰｷｰ,W(*68),ｽﾏｰﾄｷｰ用

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-0KB90

GUN125..Z

“Black Rally Edition”*(B)

 2
89072-0K650

GUN125..Z

 2
89745C - BATTERY, TRANSMITTER
89745-0K010

GUN125..Z

CR2032

 1
89751A - COVER, TRANSMITTER HOUSING
89751-0K120

GUN125..Z

 2
89751-0K320

GUN125..Z

“Black Rally Edition”*(B)

 2
89752A - CASE, TRANSMITTER HOUSING
89752-0K260

GUN125..Z

 2
89752-0K540

GUN125..Z

“Black Rally Edition”*(B)

 2
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-0K500

GUN125..Z

 2
89904-0KE00

GUN125..Z

“Black Rally Edition”*(B)

 2
