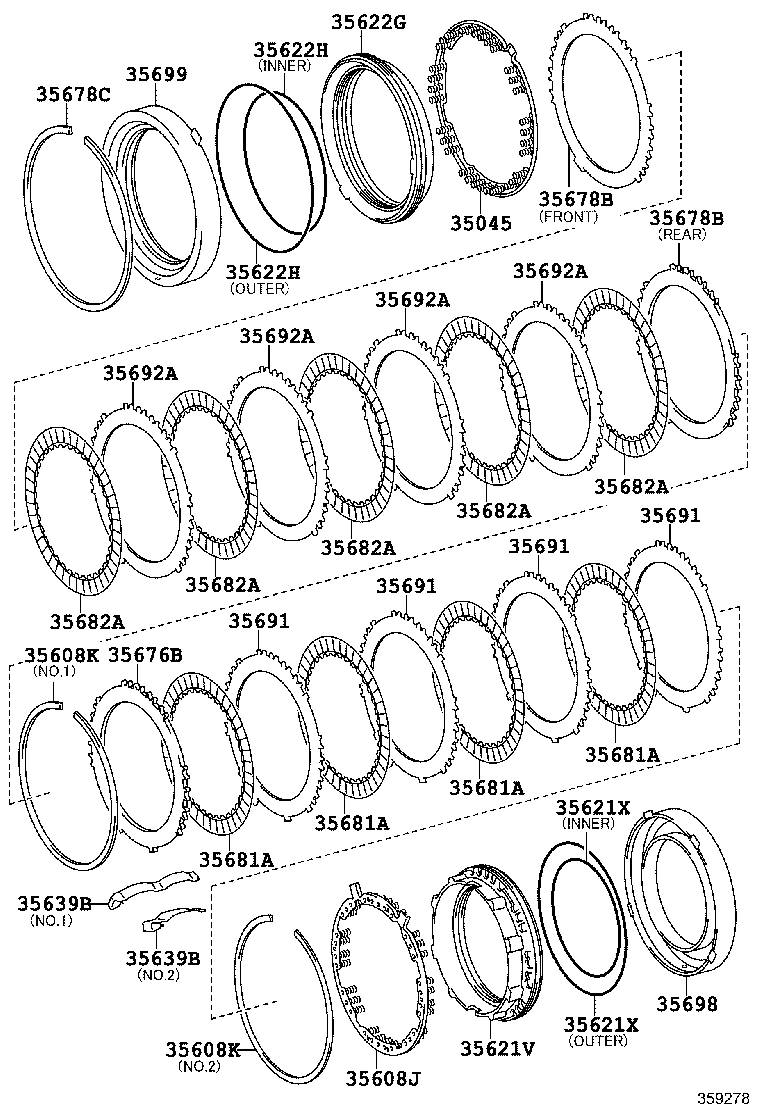

GUN125-DTTHH (2017)
Toyota Hilux
(1708- )
AC60F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35045 - SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2 | ||||
| 35045-0K010 |
GUN125 (L) |
1 | ||
| 35045-71010 |
GUN125 (J) |
1 | ||
| 35608J - SPRING SUB-ASSY, BRAKE PISTON RETURN | ||||
| 35608-71010 |
GUN125 (J) |
1 | ||
| 35608-0K010 |
GUN125 (L) |
1 | ||
| 35608K - RING, SNAP (FOR BRAKE PISTON RETURN SPRING) | ||||
| 90520-T0290 |
GUN125 (L),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90520-T0288 |
GUN125 (L),NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90520-99157 |
GUN125 (J),NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90520-99156 |
GUN125 (J),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 35608K - RING, SNAP (FOR BRAKE PISTON RETURN SPRING) | ||||
| 90520-T0290 |
GUN125 (L),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90520-T0288 |
GUN125 (L),NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90520-99157 |
GUN125 (J),NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90520-99156 |
GUN125 (J),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 35621V - PISTON, BRAKE, NO.1 | ||||
| 35621-0K010 |
GUN125 |
1 | ||
| 35621X - RING, O (FOR BRAKE PISTON NO.1) | ||||
| 90301-99115 |
GUN125 (J)､外側 |
1 | ||
| 90301-T0078 |
GUN125 内側 |
1 | ||
| 90301-T0090 |
GUN125 (L)､外側 |
1 | ||
| 35621X - RING, O (FOR BRAKE PISTON NO.1) | ||||
| 90301-99115 |
GUN125 (J)､外側 |
1 | ||
| 90301-T0078 |
GUN125 内側 |
1 | ||
| 90301-T0090 |
GUN125 (L)､外側 |
1 | ||
| 35622G - PISTON, BRAKE, NO.2 | ||||
| 35622-0K010 |
GUN125 |
1 | ||
| 35622H - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-99132 |
GUN125 (J)､内側 |
1 | ||
| 90301-T0077 |
GUN125 外側 |
1 | ||
| 90301-T0089 |
GUN125 (L)､内側 |
1 | ||
| 35622H - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-99132 |
GUN125 (J)､内側 |
1 | ||
| 90301-T0077 |
GUN125 外側 |
1 | ||
| 90301-T0089 |
GUN125 (L)､内側 |
1 | ||
| 35639B - SPRING, BRAKE PLATE STOPPER | ||||
| 35639-71020 |
GUN125 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 35639-71010 |
GUN125 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 35639B - SPRING, BRAKE PLATE STOPPER | ||||
| 35639-71020 |
GUN125 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 35639-71010 |
GUN125 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 35676B - FLANGE, BRAKE, NO.1 | ||||
| 35676-71020 |
GUN125 厚さ=5.0 |
1 | ||
| 35676-71050 |
GUN125 厚さ=5.3 |
1 | ||
| 35676-71100 |
GUN125 厚さ=5.8 |
1 | ||
| 35676-71010 |
GUN125 厚さ=4.9 |
1 | ||
| 35676-71060 |
GUN125 厚さ=5.4 |
1 | ||
| 35676-71030 |
GUN125 厚さ=5.1 |
1 | ||
| 35676-71040 |
GUN125 厚さ=5.2 |
1 | ||
| 35676-71070 |
GUN125 厚さ=5.5 |
1 | ||
| 35676-71090 |
GUN125 厚さ=5.7 |
1 | ||
| 35676-71080 |
GUN125 厚さ=5.6 |
1 | ||
| 35678B - FLANGE, BRAKE, NO.2 | ||||
| 35678-71010 |
GUN125 厚さ=3.8,ﾘﾔ |
1 | ||
| 35678-71050 |
GUN125 厚さ=2.3,ﾌﾛﾝﾄ |
1 | ||
| 35678-71020 |
GUN125 厚さ=2.0,ﾌﾛﾝﾄ |
1 | ||
| 35678-71030 |
GUN125 厚さ=2.1,ﾌﾛﾝﾄ |
1 | ||
| 35678-71040 |
GUN125 厚さ=2.2,ﾌﾛﾝﾄ |
1 | ||
| 35678-71080 |
GUN125 厚さ=2.6,ﾌﾛﾝﾄ |
1 | ||
| 35678-71060 |
GUN125 厚さ=2.4,ﾌﾛﾝﾄ |
1 | ||
| 35678-71100 |
GUN125 厚さ=2.8,ﾌﾛﾝﾄ |
1 | ||
| 35678-71070 |
GUN125 厚さ=2.5,ﾌﾛﾝﾄ |
1 | ||
| 35678-71090 |
GUN125 厚さ=2.7,ﾌﾛﾝﾄ |
1 | ||
| 35678B - FLANGE, BRAKE, NO.2 | ||||
| 35678-71010 |
GUN125 厚さ=3.8,ﾘﾔ |
1 | ||
| 35678-71050 |
GUN125 厚さ=2.3,ﾌﾛﾝﾄ |
1 | ||
| 35678-71020 |
GUN125 厚さ=2.0,ﾌﾛﾝﾄ |
1 | ||
| 35678-71030 |
GUN125 厚さ=2.1,ﾌﾛﾝﾄ |
1 | ||
| 35678-71040 |
GUN125 厚さ=2.2,ﾌﾛﾝﾄ |
1 | ||
| 35678-71080 |
GUN125 厚さ=2.6,ﾌﾛﾝﾄ |
1 | ||
| 35678-71060 |
GUN125 厚さ=2.4,ﾌﾛﾝﾄ |
1 | ||
| 35678-71100 |
GUN125 厚さ=2.8,ﾌﾛﾝﾄ |
1 | ||
| 35678-71070 |
GUN125 厚さ=2.5,ﾌﾛﾝﾄ |
1 | ||
| 35678-71090 |
GUN125 厚さ=2.7,ﾌﾛﾝﾄ |
1 | ||
| 35678C - RING, SNAP (FOR BRAKE NO.2) | ||||
| 90520-T0291 |
GUN125 |
1 | ||
| 90520-99155 |
GUN125 |
1 | ||
| 35681A - DISC, BRAKE, NO.1 | ||||
| 35681-0K010 |
GUN125 |
4 | ||
| 35681A - DISC, BRAKE, NO.1 | ||||
| 35681-0K010 |
GUN125 |
4 | ||
| 35681A - DISC, BRAKE, NO.1 | ||||
| 35681-0K010 |
GUN125 |
4 | ||
| 35681A - DISC, BRAKE, NO.1 | ||||
| 35681-0K010 |
GUN125 |
4 | ||
| 35682A - DISC, BRAKE, NO.2 | ||||
| 35682-0K010 |
GUN125 |
5 | ||
| 35682A - DISC, BRAKE, NO.2 | ||||
| 35682-0K010 |
GUN125 |
5 | ||
| 35682A - DISC, BRAKE, NO.2 | ||||
| 35682-0K010 |
GUN125 |
5 | ||
| 35682A - DISC, BRAKE, NO.2 | ||||
| 35682-0K010 |
GUN125 |
5 | ||
| 35682A - DISC, BRAKE, NO.2 | ||||
| 35682-0K010 |
GUN125 |
5 | ||
| 35691 - PLATE, BRAKE, NO.1 | ||||
| 35691-0K010 |
GUN125 |
4 | ||
| 35691 - PLATE, BRAKE, NO.1 | ||||
| 35691-0K010 |
GUN125 |
4 | ||
| 35691 - PLATE, BRAKE, NO.1 | ||||
| 35691-0K010 |
GUN125 |
4 | ||
| 35691 - PLATE, BRAKE, NO.1 | ||||
| 35691-0K010 |
GUN125 |
4 | ||
| 35692A - PLATE, BRAKE, NO.2 | ||||
| 35692-0K010 |
GUN125 |
4 | ||
| 35692A - PLATE, BRAKE, NO.2 | ||||
| 35692-0K010 |
GUN125 |
4 | ||
| 35692A - PLATE, BRAKE, NO.2 | ||||
| 35692-0K010 |
GUN125 |
4 | ||
| 35692A - PLATE, BRAKE, NO.2 | ||||
| 35692-0K010 |
GUN125 |
4 | ||
| 35698 - CYLINDER, BRAKE, NO.1 | ||||
| 35698-71010 |
GUN125 |
1 | ||
| 35699 - CYLINDER, BRAKE, NO.2 | ||||
| 35699-71010 |
GUN125 |
1 | ||
