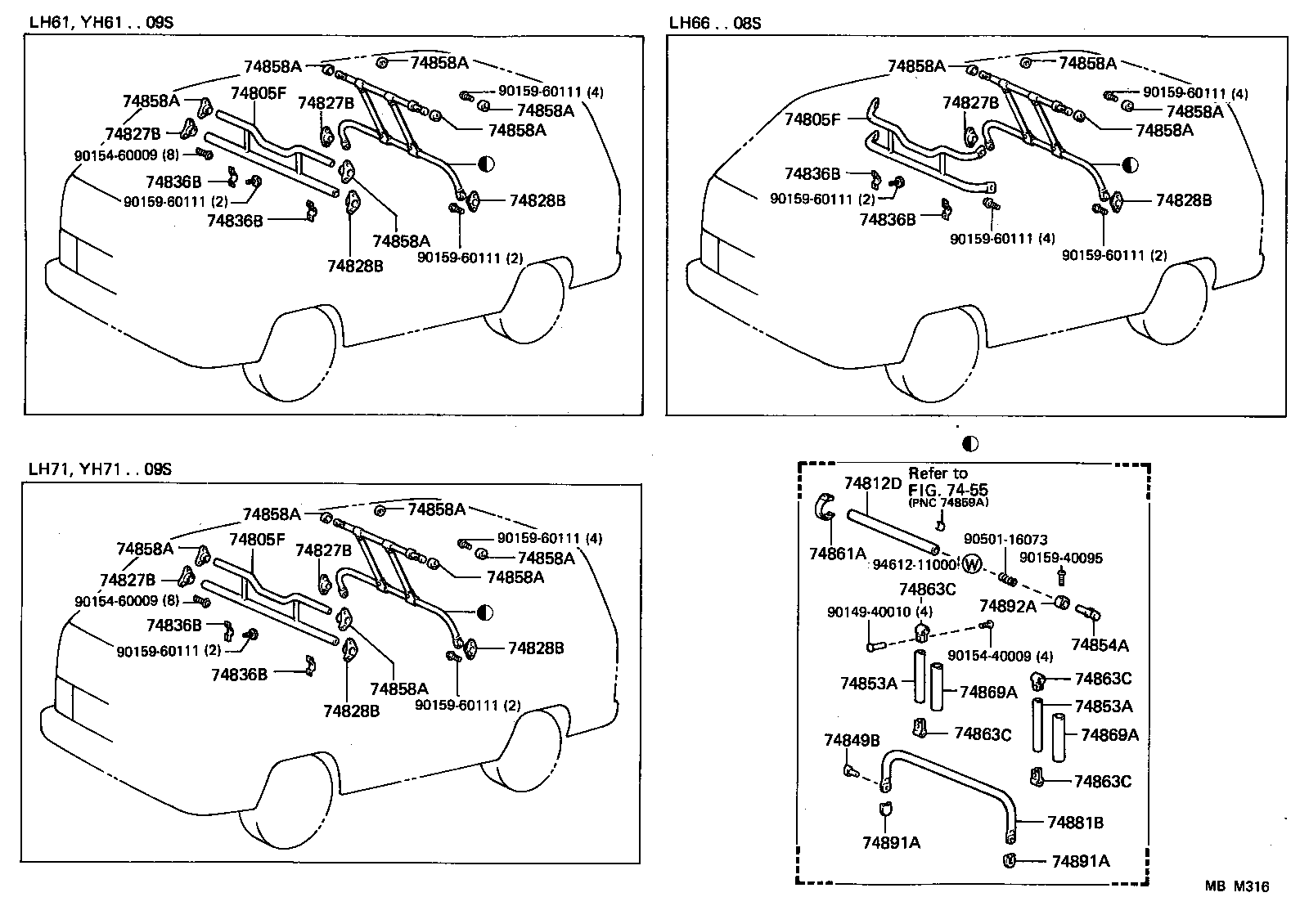

YH71V-QDG (1987)
Toyota Hiace Van,Wagon
(8708- )LH6#,71,YH61,71..08S,09S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74805F - BAR SUB-ASSY, SEPARATOR, A | ||||
| 74805-95J1306 |
LH51,61,71,YH50,52,6#,71..V..(CD,DX)..(03S,09S) BROWN,TRIM4# |
1 | ||
| 74805F - BAR SUB-ASSY, SEPARATOR, A | ||||
| 74805-95J1306 |
LH51,61,71,YH50,52,6#,71..V..(CD,DX)..(03S,09S) BROWN,TRIM4# |
1 | ||
| 74805F - BAR SUB-ASSY, SEPARATOR, A | ||||
| 74805-95J1306 |
LH51,61,71,YH50,52,6#,71..V..(CD,DX)..(03S,09S) BROWN,TRIM4# |
1 | ||
| 74812D - BAR, SEPARATOR, NO.2 | ||||
| 74812-95J0106 |
LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
1 | ||
| 74827B - BRACKET, SEPARATOR BAR, RH | ||||
| 74835-90C0106 |
LH71,YH71..09S BROWN,TRIM4#,ﾘﾔ |
1 | ||
| 74867-95J0006 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾌﾛﾝﾄ |
1 | ||
| 74827B - BRACKET, SEPARATOR BAR, RH | ||||
| 74835-90C0106 |
LH71,YH71..09S BROWN,TRIM4#,ﾘﾔ |
1 | ||
| 74867-95J0006 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾌﾛﾝﾄ |
1 | ||
| 74827B - BRACKET, SEPARATOR BAR, RH | ||||
| 74835-90C0106 |
LH71,YH71..09S BROWN,TRIM4#,ﾘﾔ |
1 | ||
| 74867-95J0006 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾌﾛﾝﾄ |
1 | ||
| 74827B - BRACKET, SEPARATOR BAR, RH | ||||
| 74835-90C0106 |
LH71,YH71..09S BROWN,TRIM4#,ﾘﾔ |
1 | ||
| 74867-95J0006 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾌﾛﾝﾄ |
1 | ||
| 74827B - BRACKET, SEPARATOR BAR, RH | ||||
| 74835-90C0106 |
LH71,YH71..09S BROWN,TRIM4#,ﾘﾔ |
1 | ||
| 74867-95J0006 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾌﾛﾝﾄ |
1 | ||
| 74828B - BRACKET, SEPARATOR BAR, LH | ||||
| 74878-95J0006 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
1 | ||
| 74879-95J0106 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾌﾛﾝﾄ |
1 | ||
| 74828B - BRACKET, SEPARATOR BAR, LH | ||||
| 74878-95J0006 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
1 | ||
| 74879-95J0106 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾌﾛﾝﾄ |
1 | ||
| 74828B - BRACKET, SEPARATOR BAR, LH | ||||
| 74878-95J0006 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
1 | ||
| 74879-95J0106 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾌﾛﾝﾄ |
1 | ||
| 74828B - BRACKET, SEPARATOR BAR, LH | ||||
| 74878-95J0006 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
1 | ||
| 74879-95J0106 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾌﾛﾝﾄ |
1 | ||
| 74828B - BRACKET, SEPARATOR BAR, LH | ||||
| 74878-95J0006 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
1 | ||
| 74879-95J0106 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾌﾛﾝﾄ |
1 | ||
| 74836B - BRACKET, SEPARATOR BAR, NO.2 | ||||
| 74836-95J0006 |
LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
2 | ||
| 74836B - BRACKET, SEPARATOR BAR, NO.2 | ||||
| 74836-95J0006 |
LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
2 | ||
| 74836B - BRACKET, SEPARATOR BAR, NO.2 | ||||
| 74836-95J0006 |
LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
2 | ||
| 74836B - BRACKET, SEPARATOR BAR, NO.2 | ||||
| 74836-95J0006 |
LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
2 | ||
| 74836B - BRACKET, SEPARATOR BAR, NO.2 | ||||
| 74836-95J0006 |
LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
2 | ||
| 74836B - BRACKET, SEPARATOR BAR, NO.2 | ||||
| 74836-95J0006 |
LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
2 | ||
| 74849B - PIN, SEPARATOR | ||||
| 74849-95J00 |
LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S |
2 | ||
| 74853A - BAR, SEPARATOR, NO.3 | ||||
| 74853-95J0006 |
LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
2 | ||
| 74853A - BAR, SEPARATOR, NO.3 | ||||
| 74853-95J0006 |
LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
2 | ||
| 74854A - STOP, SEPARATOR | ||||
| 74854-95J0106 |
LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
1 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74851-95J0106 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
1 | ||
| 74852-95J0006 |
LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
1 | ||
| 74858-95J0306 |
LH61,71,YH61,71..DX..09S BROWN,TRIM4#,ﾘﾔ |
4 | ||
| 74858-95J0304 |
LH61,71,YH61,71..DX..09S BLUE,TRIM4#,ﾘﾔ |
4 | ||
| 74861A - JOINT, SEPARATOR BAR | ||||
| 74861-95J03 |
LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S |
2 | ||
| 74863C - BRACKET, SEPARATOR BAR, NO.3 | ||||
| 74863-95J0106 |
LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S BROWN,TRIM4# |
4 | ||
| 74863-95J0114 |
LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S BLUE,TRIM4# |
4 | ||
| 74863C - BRACKET, SEPARATOR BAR, NO.3 | ||||
| 74863-95J0106 |
LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S BROWN,TRIM4# |
4 | ||
| 74863-95J0114 |
LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S BLUE,TRIM4# |
4 | ||
| 74863C - BRACKET, SEPARATOR BAR, NO.3 | ||||
| 74863-95J0106 |
LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S BROWN,TRIM4# |
4 | ||
| 74863-95J0114 |
LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S BLUE,TRIM4# |
4 | ||
| 74863C - BRACKET, SEPARATOR BAR, NO.3 | ||||
| 74863-95J0106 |
LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S BROWN,TRIM4# |
4 | ||
| 74863-95J0114 |
LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S BLUE,TRIM4# |
4 | ||
| 74869A - PROTECTOR, SEPARATOR BAR | ||||
| 74869-95J02 |
LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S |
2 | ||
| 74869A - PROTECTOR, SEPARATOR BAR | ||||
| 74869-95J02 |
LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S |
2 | ||
| 74881B - BAR, SEPARATOR, NO.1 | ||||
| 74881-95J0206 |
LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
1 | ||
| 74891A - COVER, SEPARATOR BAR, NO.1 | ||||
| 74891-95J0006 |
LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
2 | ||
| 74891A - COVER, SEPARATOR BAR, NO.1 | ||||
| 74891-95J0006 |
LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
2 | ||
| 74892A - COVER, SEPARATOR BAR, NO.2 | ||||
| 74892-95J0006 |
LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90149-40010 | ||||
| 90154-40009 | ||||
| 90154-60009 | ||||
| 90159-40095 | ||||
| 90159-60111 | ||||
| 90501-16073 | ||||
| 94612-11000 | ||||
| Linked diagrams | ||||
| 7455 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74875A - PLATE, CURTAIN REAR SEPARATOR | ||||
| 74875-95J00 |
LH66,YH71..DX..(08S,09S) ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
2 | ||
| 74875A - PLATE, CURTAIN REAR SEPARATOR | ||||
| 74875-95J00 |
LH66,YH71..DX..(08S,09S) ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
2 | ||
| 74875A - PLATE, CURTAIN REAR SEPARATOR | ||||
| 74875-95J00 |
LH66,YH71..DX..(08S,09S) ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) |
2 | ||
| Common parts | ||||
| 90530-06001 | ||||
| 93540-55012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
