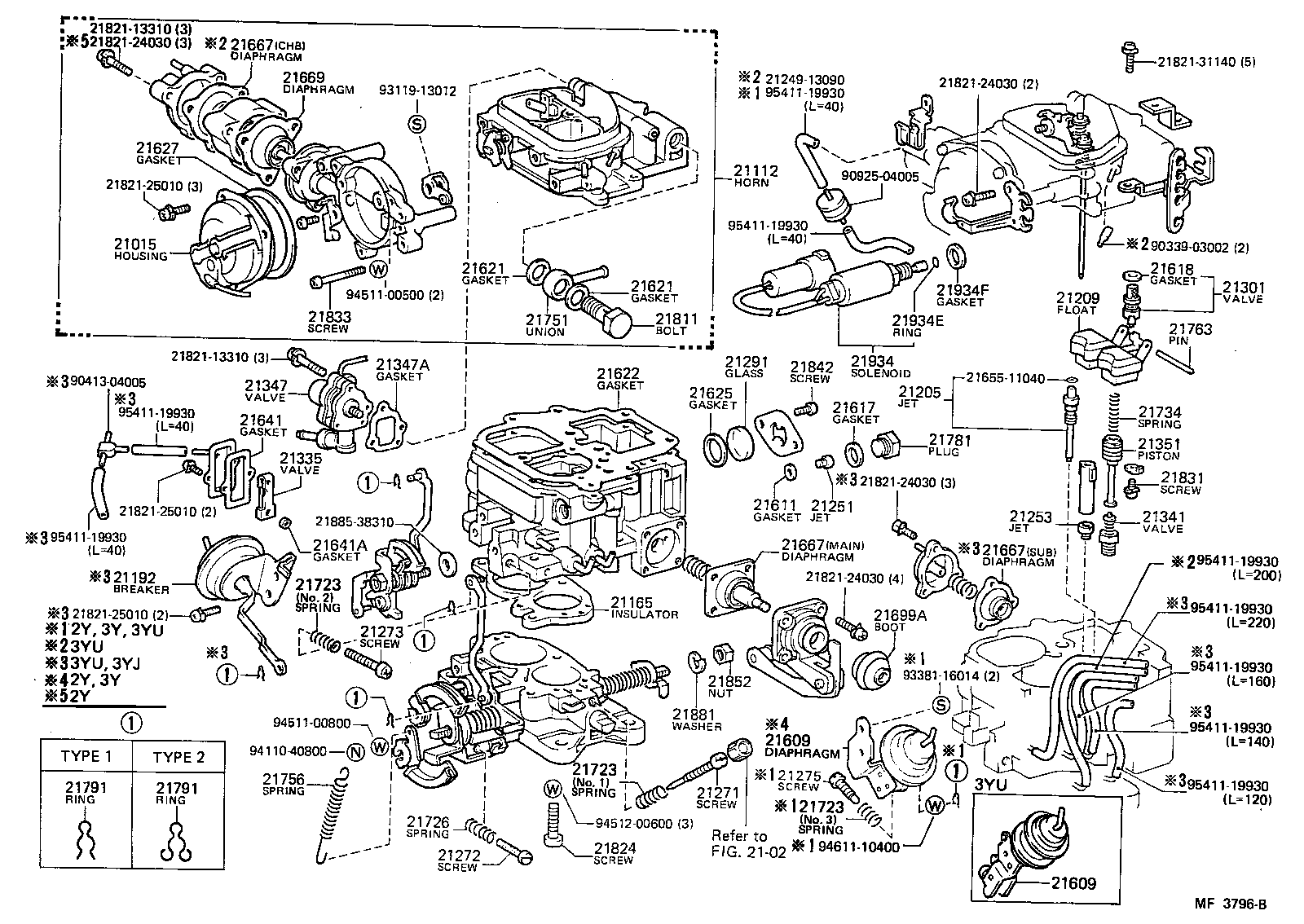

YH71V-QDG (1985)
Toyota Hiace Van,Wagon
(8508- )2Y,3Y#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-72060 |
2Y,3Y..YH50,51,61,71 |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-72060 |
2Y,3Y..YH50,61,71 |
1 | ||
| 21165 - INSULATOR | ||||
| 21165-71010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-35240 |
2Y,3Y..YH50,51,61,71 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-37041 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41105 |
2Y,3Y..YH50,51,61,71 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 21253-73010 |
2Y,3Y#..YH5#,6#,71 TYPE B |
1 | ||
| 21253-37040 |
2Y,3Y#..YH5#,6#,71 TYPE A |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-15230 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21272-71010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-71010 |
2Y,3Y#..YH5#,61,71 |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21272-71010 |
2Y,3Y..YH50,51,61,71 |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-34320 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-35010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21335-34660 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-61060 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21347 - VALVE, SOLENOID | ||||
| 21347-72030 |
2Y,3Y..YH50,61,71 |
1 | ||
| 21347A - GASKET(FOR VALVE, SOLENOID) | ||||
| 21641-35010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-37040 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21609 - DIAPHRAGM SUB-ASSY | ||||
| 21609-72030 |
2Y,3Y..YH50,51,61,71 |
1 | ||
| 21609 - DIAPHRAGM SUB-ASSY | ||||
| 21609-72030 |
2Y,3Y..YH50,51,61,71 |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2Y,3Y#..YH5#,6#,71 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2Y,3Y#..YH5#,6#,71 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-37040 |
2Y,3Y#..YH5#,61,71 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-28150 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21641-37041 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21641A - GASKET(FOR THERMOSTATIC VALVE COVER NO.2) | ||||
| 21641-24030 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-37040 |
2Y,3Y#..YH5#,6#,71 MAIN |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-37040 |
2Y,3Y#..YH5#,6#,71 MAIN |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-37040 |
2Y,3Y#..YH5#,6#,71 MAIN |
1 | ||
| 21669 - DIAPHRAGM | ||||
| 21669-37040 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 21699A - BOOT(FOR ACCELERATION PUMP) | ||||
| 21699-37040 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-38310 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-71010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21869-72030 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-34320 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2Y,3Y#..YH5#,61,71 TYPE1 |
5 | ||
| 21791-13010 |
2Y,3Y#..YH5#,61,71 TYPE2 |
5 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2Y,3Y#..YH5#,61,71 TYPE1 |
5 | ||
| 21791-13010 |
2Y,3Y#..YH5#,61,71 TYPE2 |
5 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET) | ||||
| 21844-26400 |
2Y,3Y#..YH5#,6#,71 |
3 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21821-15060 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-33010 |
2Y,3Y#..YH5#,6#,71 |
2 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
2Y,3Y#..YH5#,6#,71 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-72030 |
2Y,3Y..YH50,51,61,71 |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 21249-13090 | ||||
| 21655-11040 | ||||
| 21821-13310 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-31140 | ||||
| 21885-38310 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90925-04005 | ||||
| 93119-13012 | ||||
| 93381-16014 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10400 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 2102 | ||||
(8708-8808)2Y,3Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 21281-25010 | ||||
| 21655-11040 | ||||
| 21821-13310 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-31140 | ||||
| 21885-38310 | ||||
| 90925-04005 | ||||
| 90999-92002 | ||||
| 93319-13012 | ||||
| 93381-16014 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10400 | ||||
| Linked diagrams | ||||
| 2102 | ||||
