YH71V-JDG (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine 3Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )

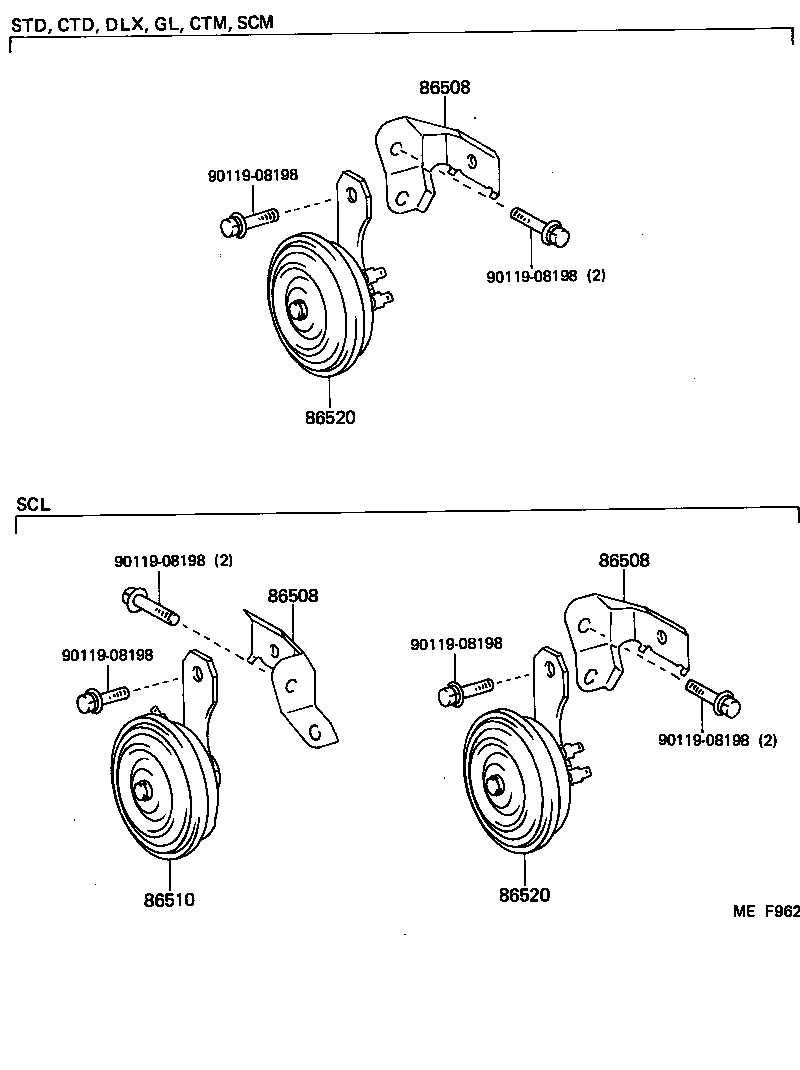

Click highlighted areas on diagram

diagram 86508 86508 86508 86510 86520 86520 9011908198 9011908198 9011908198 9011908198 9011908198 9011908198
Part # Description Qty Price
86508 - BRACKET SUB-ASSY, HORN
86591-95J00

LH5#,6#,7#,YH5#,6#,71

LOW PITCHED

 1
86508 - BRACKET SUB-ASSY, HORN
86591-95J00

LH5#,6#,7#,YH5#,6#,71

LOW PITCHED

 1
86508 - BRACKET SUB-ASSY, HORN
86591-95J00

LH5#,6#,7#,YH5#,6#,71

LOW PITCHED

 1
86520 - HORN ASSY, LOW PITCHED
86520-22050

LH5#,6#,7#,YH5#,6#,71

DENSO

 1
86520-95J05

LH5#,6#,7#,YH5#,6#,71

MARUKO

 1
86520 - HORN ASSY, LOW PITCHED
86520-22050

LH5#,6#,7#,YH5#,6#,71

DENSO

 1
86520-95J05

LH5#,6#,7#,YH5#,6#,71

MARUKO

 1
Common parts
90119-08198
