YH71V-JDG (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine 3Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )LH5#,6#,7#

Click highlighted areas on diagram

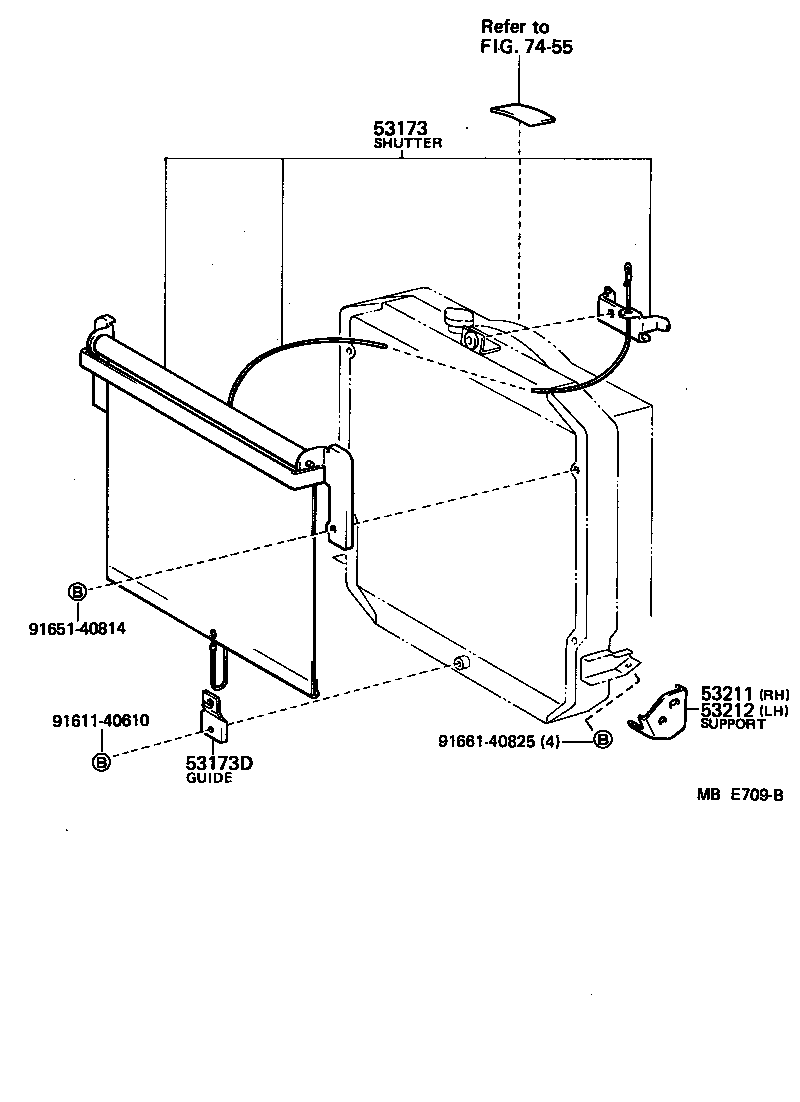

diagram 53173 53173D 53211 53212 7455 9161140610 9165140814 9166140825
Part # Description Qty Price
53173 - SHUTTER SUB-ASSY, RADIATOR WIND
87540-95J00

LH5#,6#,7#

 1
53173D - GUIDE, RADIATOR SHUTTER
87511-95J00

LH5#,6#,7#

 1
Common parts
91611-40610
91651-40814
91661-40825
Linked diagrams
7455
