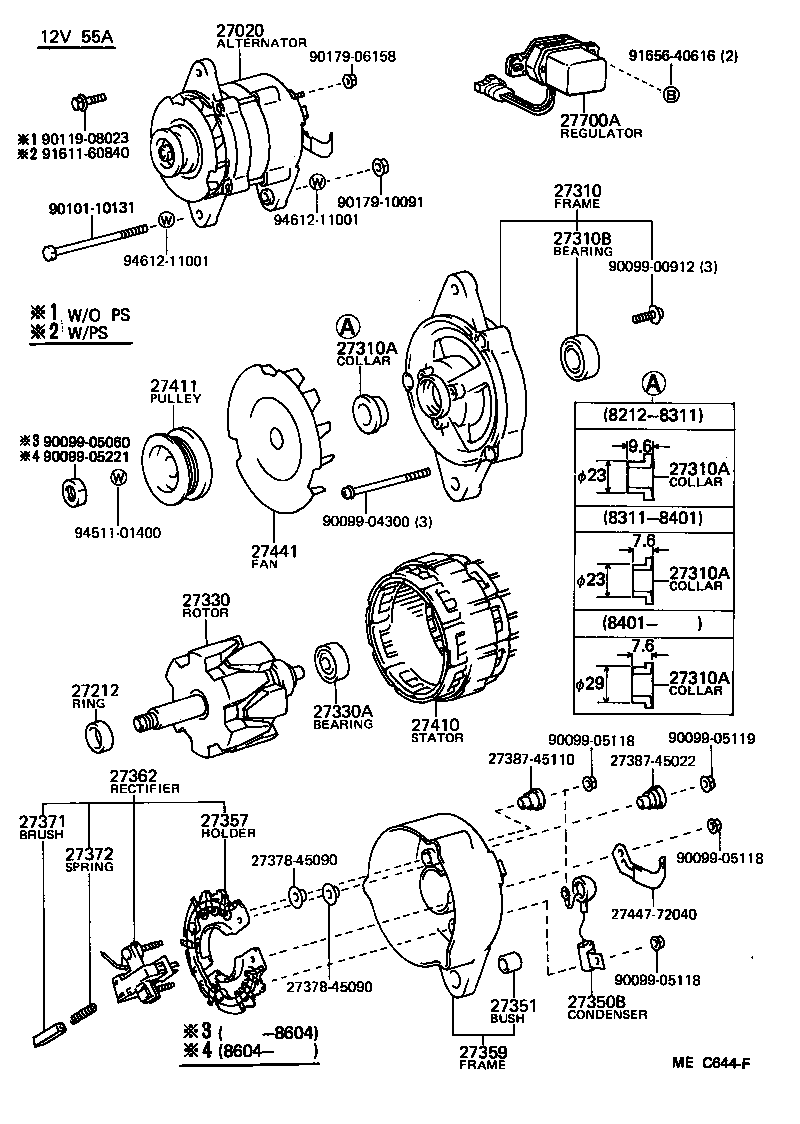

YH71V-JDG (1982)
Toyota Hiace Van,Wagon
(8212- )2Y,3Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-54160 |
L,2L..LH5#,6#,7#..COM,V 12V 55A,12V 55A |
1 | ||
| 27020-72010 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A,12V 55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27412-45070 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-45110 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310-72041 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27310-54130 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27310-72040 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27412-31040 |
2Y,3Y#..YH5#,61,71 12V 40A,45A,55A,65A |
1 | ||
| 27412-63030 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27412-31040 |
2Y,3Y#..YH5#,61,71 12V 40A,45A,55A,65A |
1 | ||
| 27412-63030 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27412-31040 |
2Y,3Y#..YH5#,61,71 12V 40A,45A,55A,65A |
1 | ||
| 27412-63030 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 90099-10125 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 90099-10142 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-63010 |
3Y,3YJ..YH52,62,71 12V 55A |
1 | ||
| 27330-64010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
1 | ||
| 90099-52082 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
1 | ||
| 27351-56013 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-72010 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-63011 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
2 | ||
| 27371-31011 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
2 | ||
| 27372-56070 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27410-43040 |
L,2L..LH5#,61,71..COM,V 12V 55A |
1 | ||
| 27410-64010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-72040 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
1 | ||
| 27411-54170 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-63030 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27441-56090 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-13040 |
L,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V 12V 40A,45A,55A |
1 | ||
| 27700-72020 |
L,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V 12V 40A,45A,55A,COLD SPEC |
1 | ||
| 27700-13040 |
L,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V 12V 40A,45A,55A |
1 | ||
| 27700-13040 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH50,52,6#,71..COM,V 12V 40A,45A,55A |
1 | ||
| Common parts | ||||
| 27378-15030 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 27447-72040 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05221 | ||||
| 90101-10131 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 90179-10091 | ||||
| 91611-60840 | ||||
| 91656-40616 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||

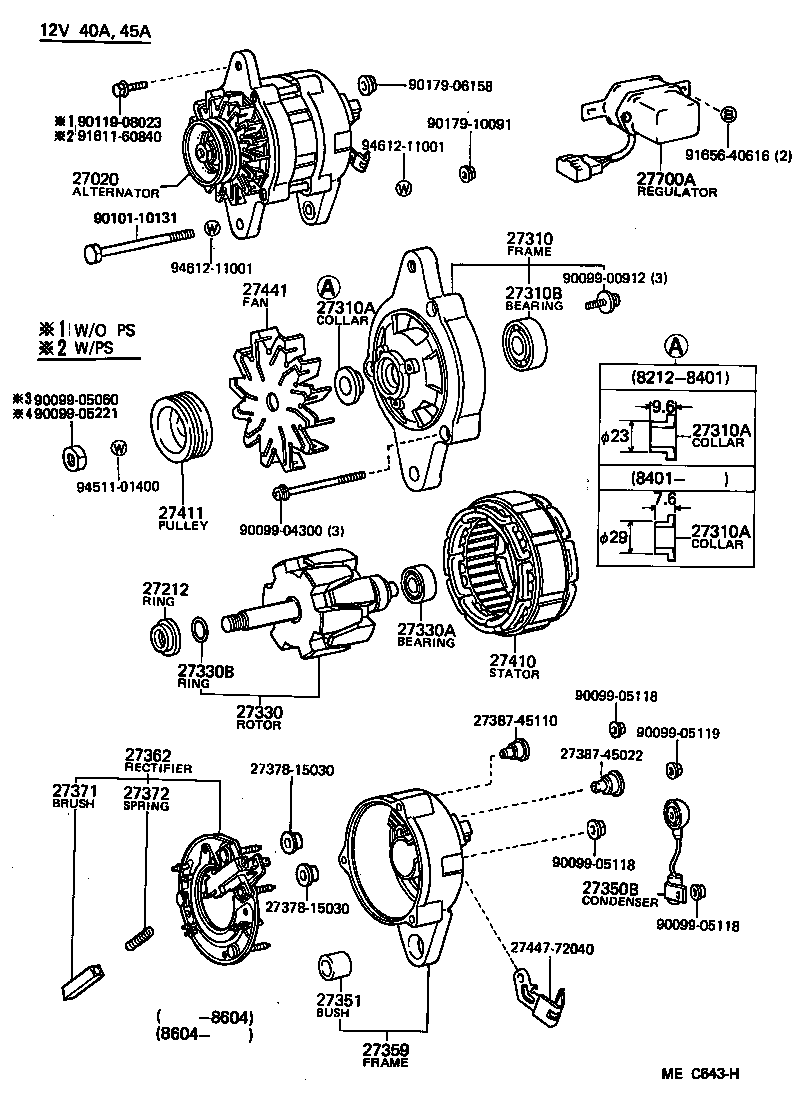

(8212- )2Y,3Y,3YJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-54160 |
L,2L..LH5#,6#,7#..COM,V 12V 55A,12V 55A |
1 | ||
| 27020-72010 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A,12V 55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27412-45070 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-45110 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310-72041 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27310-54130 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27310-72040 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27412-31040 |
2Y,3Y#..YH5#,61,71 12V 40A,45A,55A,65A |
1 | ||
| 27412-63030 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27412-31040 |
2Y,3Y#..YH5#,61,71 12V 40A,45A,55A,65A |
1 | ||
| 27412-63030 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27412-31040 |
2Y,3Y#..YH5#,61,71 12V 40A,45A,55A,65A |
1 | ||
| 27412-63030 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27412-31040 |
2Y,3Y#..YH5#,61,71 12V 40A,45A,55A,65A |
1 | ||
| 27412-63030 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 90099-10125 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 90099-10142 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-63010 |
3Y,3YJ..YH52,62,71 12V 55A |
1 | ||
| 27330-64010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
1 | ||
| 90099-52082 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
1 | ||
| 27351-56013 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63011 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27357-64060 |
L,2L..LH5#,61,71..COM,V 12V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-72010 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-63011 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
2 | ||
| 27371-31011 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
2 | ||
| 27372-56070 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27410-43040 |
L,2L..LH5#,61,71..COM,V 12V 55A |
1 | ||
| 27410-64010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-72040 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
1 | ||
| 27411-54170 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-63030 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27441-56090 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-13040 |
L,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V 12V 40A,45A,55A |
1 | ||
| 27700-72020 |
L,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V 12V 40A,45A,55A,COLD SPEC |
1 | ||
| 27700-13040 |
L,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V 12V 40A,45A,55A |
1 | ||
| 27700-13040 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH50,52,6#,71..COM,V 12V 40A,45A,55A |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 27447-72040 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05221 | ||||
| 90101-10131 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 90179-10091 | ||||
| 91611-60840 | ||||
| 91656-40616 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||

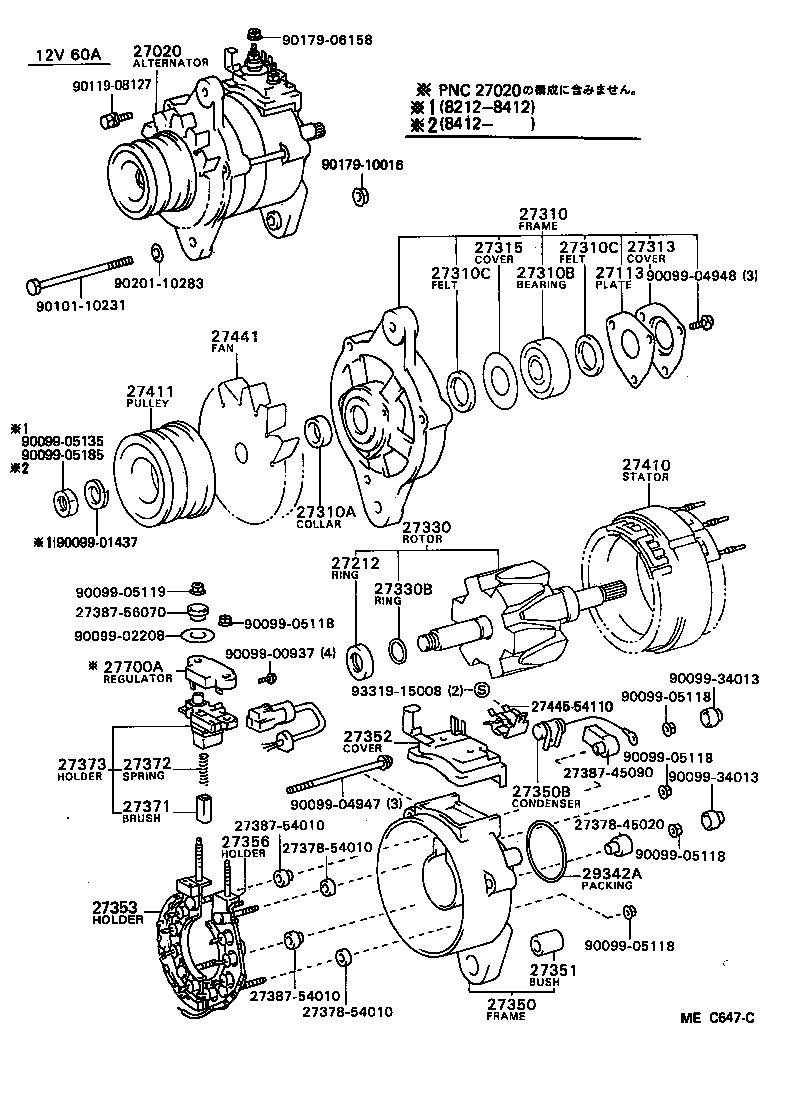

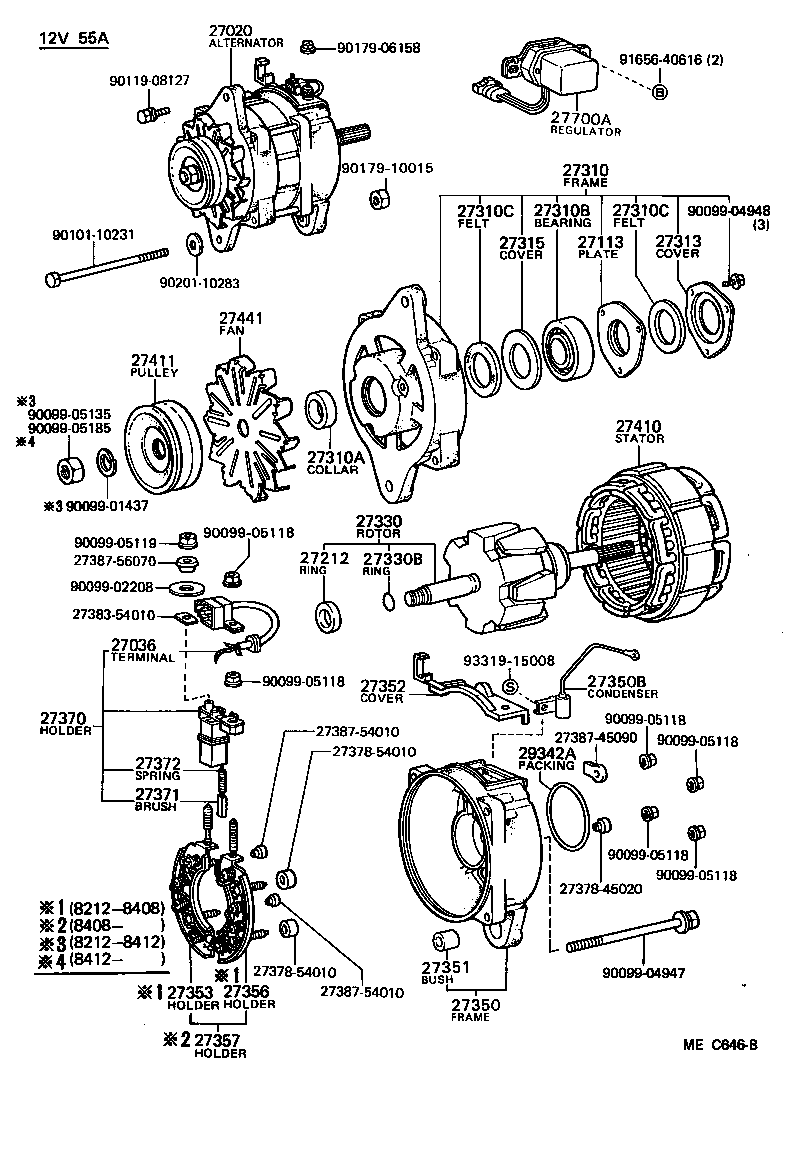

(8212- )L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-54160 |
L,2L..LH5#,6#,7#..COM,V 12V 55A,12V 55A |
1 | ||
| 27020-72010 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A,12V 55A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27412-45070 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-45110 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310-72041 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27310-54130 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27310-72040 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27412-31040 |
2Y,3Y#..YH5#,61,71 12V 40A,45A,55A,65A |
1 | ||
| 27412-63030 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 90099-10125 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 90099-10142 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
2 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-63010 |
3Y,3YJ..YH52,62,71 12V 55A |
1 | ||
| 27330-64010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-54130 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
1 | ||
| 90099-52082 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
1 | ||
| 27351-56013 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-64010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-54010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63011 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27357-64060 |
L,2L..LH5#,61,71..COM,V 12V 55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
2 | ||
| 27371-31011 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
2 | ||
| 27372-56070 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27410-43040 |
L,2L..LH5#,61,71..COM,V 12V 55A |
1 | ||
| 27410-64010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-72040 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
1 | ||
| 27411-54170 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-63030 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27441-56090 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-13040 |
L,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V 12V 40A,45A,55A |
1 | ||
| 27700-72020 |
L,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V 12V 40A,45A,55A,COLD SPEC |
1 | ||
| 27700-13040 |
L,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V 12V 40A,45A,55A |
1 | ||
| 27700-13040 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH50,52,6#,71..COM,V 12V 40A,45A,55A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04947 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90099-05185 | ||||
| 90101-10231 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10015 | ||||
| 90201-10283 | ||||
| 91656-40616 | ||||
| 93319-15008 | ||||
(8212- )L,2L#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-54160 |
L,2L..LH5#,6#,7#..COM,V 12V 55A,12V 55A |
1 | ||
| 27020-72010 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A,12V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27412-45070 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-45110 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310-72041 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27310-54130 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27310-72040 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27412-31040 |
2Y,3Y#..YH5#,61,71 12V 40A,45A,55A,65A |
1 | ||
| 27412-63030 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 90099-10125 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 90099-10142 |
3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
2 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-63010 |
3Y,3YJ..YH52,62,71 12V 55A |
1 | ||
| 27330-64010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-54130 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
1 | ||
| 90099-52082 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
1 | ||
| 27351-56013 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-64010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-54010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
2 | ||
| 27371-31011 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
2 | ||
| 27372-56070 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27410-43040 |
L,2L..LH5#,61,71..COM,V 12V 55A |
1 | ||
| 27410-64010 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-72040 |
2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
1 | ||
| 27411-54170 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-63030 |
3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
1 | ||
| 27441-56090 |
L,2L..LH5#,6#,7#..COM,V 12V 55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-13040 |
L,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V 12V 40A,45A,55A |
1 | ||
| 27700-72020 |
L,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V 12V 40A,45A,55A,COLD SPEC |
1 | ||
| 27700-13040 |
L,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V 12V 40A,45A,55A |
1 | ||
| 27700-13040 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH50,52,6#,71..COM,V 12V 40A,45A,55A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
L,2L#..LH5#,6#,7# 12V 55A,60A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 27445-54110 | ||||
| 90099-00937 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04947 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90099-05185 | ||||
| 90099-34013 | ||||
| 90101-10231 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 90201-10283 | ||||
| 93319-15008 | ||||
(8708-8804)2Y..V5D..06S ; (8708- )3Y# ; (8708- )2Y..V5D..05S ; (8708- )2Y.
12V 55A,70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90101-10156 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 90179-10091 | ||||
| 91611-60840 | ||||
| 93319-14025 | ||||
| 94612-11001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
