YH71V-JDE (1982)
Toyota Hiace Van,Wagon
ILLUST NO. 2 OF 2(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57441 - COVER, PLATE FLOOR SIDE RAIL | ||||
| 57441-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 61339A - SILENCER, PILLAR INNER | ||||
| 61339-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61347 - COVER, CENTER BODY PILLAR | ||||
| 61347-95J01 |
LH50,60,70,YH5#,61,71..DLX,GL,STD W/*ELR |
2 | ||
| 61347-95J00 |
YH61..STD;LH50,60,70,YH50,61,71..(COM,V)..(DLX,STD) |
2 | ||
| 61347-95J02 |
YH61..STD;LH5#,61,71,YH50,52,61,71..(COM,V)..(DLX,STD) |
2 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61785B - BRACE, QUARTER PANEL OUTER | ||||
| 61785-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
1 | ||
| Common parts | ||||
| 67841-90C00 | ||||
| 67842-90C00 | ||||
| 68854-90C00 | ||||
| 90034-80031 | ||||
| 90119-06326 | ||||
| 90119-06358 | ||||
| 90149-60027 | ||||
| 90159-60096 | ||||
| 90189-06008 | ||||
| 90480-25001 | ||||
| 90950-01011 | ||||
| 90950-01065 | ||||
| 90950-01066 | ||||
| 90950-01150 | ||||
| 90950-01181 | ||||
| 90950-01212 | ||||
| 90950-01397 | ||||
| 90950-0142101 | ||||
| 90950-0142108 | ||||
| 90950-06003 | ||||
| 90950-06004 | ||||
| 90950-06017 | ||||
| 90950-06040 | ||||
| 91661-60616 | ||||
| 94110-40600 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 6451 | ||||
| 8715 | ||||

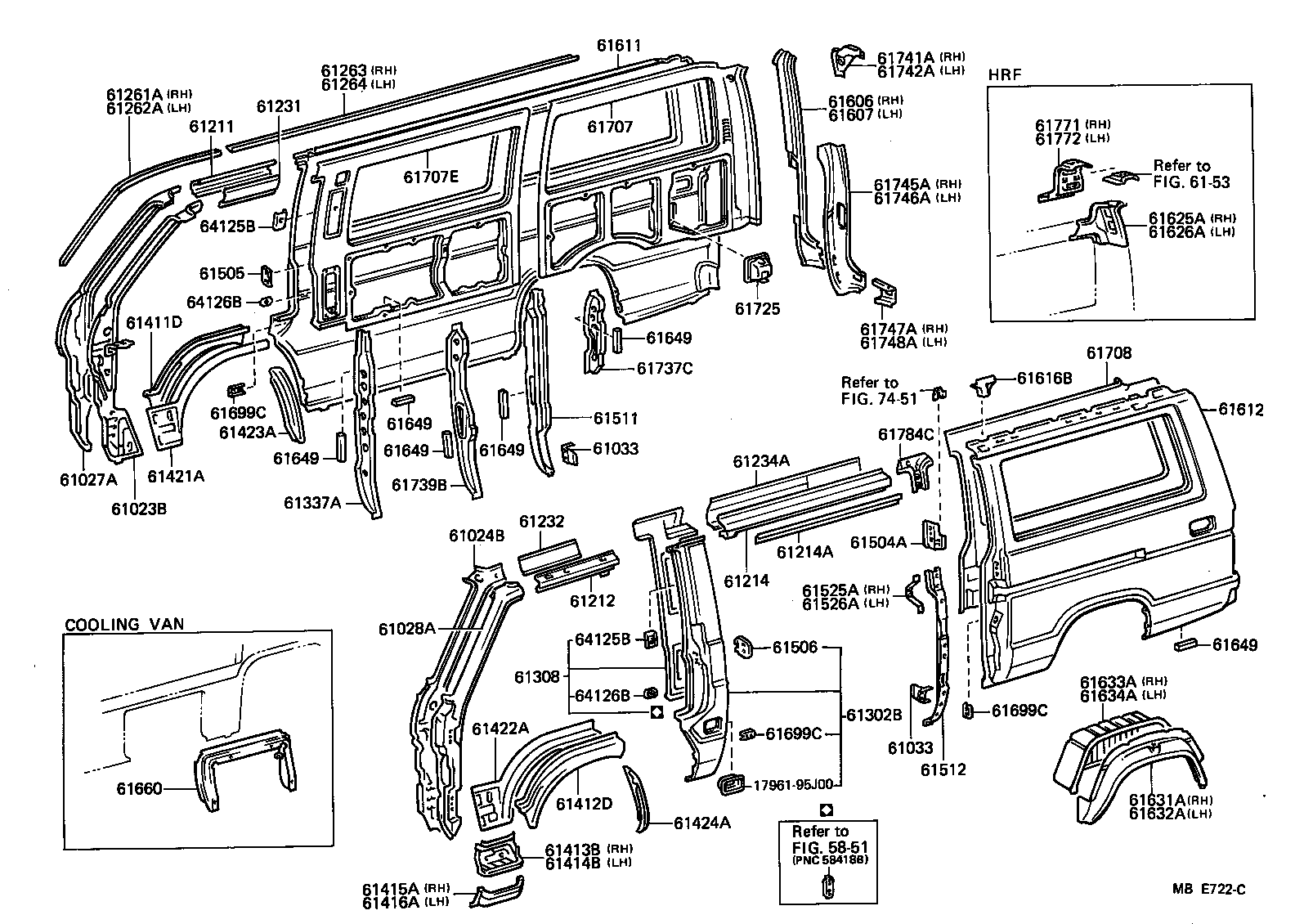

ILLUST NO. 1 OF 2(8212-8508)LH50,6#,YH50,61..V4D ; (8212-8508)LH50,6#,YH61..COM,WG ; (8212-8508)LH51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,DLX,GL,STD |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,DLX,GL,STD |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,SCM |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61033 - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR | ||||
| 61033-95J00 |
LH7#,YH71 |
2 | ||
| 61033-95J00 |
LH6#,7#,YH6#,71..ST LH |
1 | ||
| 61033 - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR | ||||
| 61033-95J00 |
LH7#,YH71 |
2 | ||
| 61033-95J00 |
LH6#,7#,YH6#,71..ST LH |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61214 - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61204-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61214A - RETAINER, SLIDE DOOR WEATHERSTRIP, LH | ||||
| 67161-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-95J00 |
LH5#,6#,7#,YH5#,6#,71..V |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95J00 |
LH5#,6#,7#,YH5#,6#,71..V |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-95J00 |
LH5#,6#,7#,YH50,52,6#,71..03S,05S,06S |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-95J00 |
LH5#,6#,71,YH5#,6#,71 |
1 | ||
| 61263 - CHANNEL, ROOF DRIP, REAR RH | ||||
| 61267-95J02 |
LH7#,YH71 |
1 | ||
| 61264 - CHANNEL, ROOF DRIP, REAR LH | ||||
| 61268-95J02 |
LH7#,YH71 |
1 | ||
| 61302B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-95J02 |
LH50,60,70,YH5#,61,71..(V,WG)..ST W/*EL |
1 | ||
| 61302-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-95J12 |
LH5#,YH5#,62..DLX,GL,STD;LH61,71,YH61,71..03S,06S,10S,15S |
1 | ||
| 61308-95J00 |
LH50,60,70,YH50,61,71..(03S,06S)..ST |
1 | ||
| 61337A - REINFORCEMENT, CENTER BODY PILLAR, INNER RH | ||||
| 61337-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61411D - PANEL, FENDER, OUTER RH | ||||
| 61411-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61412D - PANEL, FENDER, OUTER LH | ||||
| 61412-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61413B - PANEL, FRONT STEP, RH | ||||
| 61413-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61414B - PANEL, FRONT STEP, LH | ||||
| 61414-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61415A - PANEL, FRONT STEP, UNDER, RH | ||||
| 61415-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61421A - PANEL, FENDER, INNER RH | ||||
| 61421-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61422A - PANEL, FENDER, INNER LH | ||||
| 61422-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61504-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61505 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH | ||||
| 61505-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61506 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH | ||||
| 61506-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-95J01 |
LH5#,6#,YH50,61..V4D;LH50,51,60,61,YH61..COM,WG;YH51,52,62..03S,07S,08S,09S |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-95J03 |
LH6#,7#,YH6#,71..VSG..ST |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-90C00 |
LH61,7#,YH61,71..HRF |
1 | ||
| 61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-90C00 |
LH61,7#,YH61,71..HRF |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-90C00 |
LH7#,YH71 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-90C00 |
LH7#,YH71 |
1 | ||
| 61625A - EXTENSION SUB-ASSY, QUARTER PANEL, RH | ||||
| 61625-90C00 |
LH61,7#,YH61,71..HRF..VSG |
1 | ||
| 61626A - EXTENSION SUB-ASSY, QUARTER PANEL, LH | ||||
| 61626-90C00 |
LH61,7#,YH61,71..HRF..VSG |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-95J00 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-95J00 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-95J00 |
LH5#,6#,7#,YH5#,6#,71..V..ST |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-95J00 |
LH5#,6#,7#,YH5#,6#,71..V..ST |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61699C - RETAINER, COURTESY SWITCH | ||||
| 61699-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61699C - RETAINER, COURTESY SWITCH | ||||
| 61699-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61699C - RETAINER, COURTESY SWITCH | ||||
| 61699-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61707 - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61613-90C00 |
LH61,7#,YH61,71..HRF..06S..ST |
1 | ||
| 61707E - EXTENSION, QUARTER INNER PANEL, RH | ||||
| 61735-90C00 |
LH7#,YH71..DLX..(06S,15S) |
1 | ||
| 61735-95J12 |
LH5#,6#,YH50,61..V4D..06S COLD SPEC |
1 | ||
| 61708 - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61614-90C00 |
LH7#,YH71..06S |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 77304-95J00 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 61737C - REINFORCEMENT, QUARTER, INNER | ||||
| 61737-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
2 | ||
| 61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-95J00 |
LH5#,6#,YH50,61..V4D;LH50,51,60,61,YH61..COM,WG;YH51,52,62..03S,07S,08S,09S |
1 | ||
| 61739-90C00 |
LH7#,YH71 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-95J00 |
LH61,7#,YH61,71..HRF |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-95J00 |
LH61,7#,YH61,71..HRF |
1 | ||
| 61747A - EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, RH | ||||
| 61747-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61748A - EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, LH | ||||
| 61748-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61771 - PATCH, BACK DOOR OPENING, UPPER RH | ||||
| 61771-90C00 |
LH61,7#,YH61,71..HRF |
1 | ||
| 61772 - PATCH, BACK DOOR OPENING, UPPER LH | ||||
| 61772-90C00 |
LH61,7#,YH61,71..HRF |
1 | ||
| 61784C - BRACE, QUARTER PANEL, INNER LH | ||||
| 61609-90C00 |
LH61,7#,YH61,71..HRF..06S |
1 | ||
| 64125B - ANCHOR, PILLAR SEAT BELT | ||||
| 64125-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 64125B - ANCHOR, PILLAR SEAT BELT | ||||
| 64125-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 64126B - ANCHOR, PILLAR SEAT BELT, LOWER | ||||
| 64126-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 64126B - ANCHOR, PILLAR SEAT BELT, LOWER | ||||
| 64126-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| Common parts | ||||
| 17961-95J00 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 6153 | ||||
| 7451 | ||||
ILLUST NO. 1 OF 2(8212-8508)LH7#,YH71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,DLX,GL,STD |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,DLX,GL,STD |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,SCM |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61033 - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR | ||||
| 61033-95J00 |
LH7#,YH71 |
2 | ||
| 61033-95J00 |
LH6#,7#,YH6#,71..ST LH |
1 | ||
| 61033 - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR | ||||
| 61033-95J00 |
LH7#,YH71 |
2 | ||
| 61033-95J00 |
LH6#,7#,YH6#,71..ST LH |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61213 - RAIL, ROOF SIDE, OUTER REAR RH | ||||
| 61215-90C00 |
LH7#,YH71 |
1 | ||
| 61214 - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61204-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61214A - RETAINER, SLIDE DOOR WEATHERSTRIP, LH | ||||
| 67161-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-95J00 |
LH5#,6#,7#,YH5#,6#,71..V |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95J00 |
LH5#,6#,7#,YH5#,6#,71..V |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-95J00 |
LH5#,6#,7#,YH50,52,6#,71..03S,05S,06S |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-95J00 |
LH5#,6#,71,YH5#,6#,71 |
1 | ||
| 61263 - CHANNEL, ROOF DRIP, REAR RH | ||||
| 61267-95J02 |
LH7#,YH71 |
1 | ||
| 61264 - CHANNEL, ROOF DRIP, REAR LH | ||||
| 61268-95J02 |
LH7#,YH71 |
1 | ||
| 61301B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61301-90C00 |
LH7#,YH71 |
1 | ||
| 61302B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-95J02 |
LH50,60,70,YH5#,61,71..(V,WG)..ST W/*EL |
1 | ||
| 61302-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-95J12 |
LH5#,YH5#,62..DLX,GL,STD;LH61,71,YH61,71..03S,06S,10S,15S |
1 | ||
| 61308-95J00 |
LH50,60,70,YH50,61,71..(03S,06S)..ST |
1 | ||
| 61337A - REINFORCEMENT, CENTER BODY PILLAR, INNER RH | ||||
| 61337-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-90C00 |
LH7#,YH71..DLX..(06S,15S) |
1 | ||
| 61411D - PANEL, FENDER, OUTER RH | ||||
| 61411-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61412D - PANEL, FENDER, OUTER LH | ||||
| 61412-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61413B - PANEL, FRONT STEP, RH | ||||
| 61413-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61414B - PANEL, FRONT STEP, LH | ||||
| 61414-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61415A - PANEL, FRONT STEP, UNDER, RH | ||||
| 61415-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61421A - PANEL, FENDER, INNER RH | ||||
| 61421-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61422A - PANEL, FENDER, INNER LH | ||||
| 61422-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61504-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61505 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH | ||||
| 61505-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61506 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH | ||||
| 61506-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-95J03 |
LH6#,7#,YH6#,71..VSG..ST |
1 | ||
| 61605A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, RH | ||||
| 61605-90C00 |
LH7#,YH71 |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-90C00 |
LH61,7#,YH61,71..HRF |
1 | ||
| 61606A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, LH | ||||
| 61606-90C00 |
LH7#,YH71 |
1 | ||
| 61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-90C00 |
LH61,7#,YH61,71..HRF |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-90C00 |
LH7#,YH71 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-90C00 |
LH7#,YH71 |
1 | ||
| 61615C - PANEL, QUARTER INNER, CENTER RH | ||||
| 61203-95J01 |
LH7#,YH71..06S |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-90C00 |
LH7#,YH71 |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-90C00 |
LH7#,YH71 |
1 | ||
| 61625A - EXTENSION SUB-ASSY, QUARTER PANEL, RH | ||||
| 61625-90C00 |
LH61,7#,YH61,71..HRF..VSG |
1 | ||
| 61626A - EXTENSION SUB-ASSY, QUARTER PANEL, LH | ||||
| 61626-90C00 |
LH61,7#,YH61,71..HRF..VSG |
1 | ||
| 61627A - EXTENSION, QUARTER PANEL, LOWER RH | ||||
| 61627-90C00 |
LH7#,YH71..DLX |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-95J00 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-95J00 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-95J00 |
LH5#,6#,7#,YH5#,6#,71..V..ST |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-95J00 |
LH5#,6#,7#,YH5#,6#,71..V..ST |
1 | ||
| 61637A - BRACE, QUARTER PANEL, RH | ||||
| 61637-90C00 |
LH7#,YH71 |
1 | ||
| 61638A - BRACE, QUARTER PANEL, LH | ||||
| 61638-90C00 |
LH7#,YH71 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61699C - RETAINER, COURTESY SWITCH | ||||
| 61699-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61699C - RETAINER, COURTESY SWITCH | ||||
| 61699-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61707 - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61613-90C00 |
LH61,7#,YH61,71..HRF..06S..ST |
1 | ||
| 61707E - EXTENSION, QUARTER INNER PANEL, RH | ||||
| 61735-90C00 |
LH7#,YH71..DLX..(06S,15S) |
1 | ||
| 61735-95J12 |
LH5#,6#,YH50,61..V4D..06S COLD SPEC |
1 | ||
| 61708 - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61614-90C00 |
LH7#,YH71..06S |
1 | ||
| 61708E - EXTENSION, QUARTER INNER PANEL, LH | ||||
| 61736-90C02 |
LH7#,YH71..06S |
1 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-90C00 |
LH7#,YH71 |
1 | ||
| 61714A - EXTENSION, ROOF SIDE, OUTER LH | ||||
| 61714-90C00 |
LH7#,YH71 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 77304-95J00 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 61737C - REINFORCEMENT, QUARTER, INNER | ||||
| 61737-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
2 | ||
| 61737C - REINFORCEMENT, QUARTER, INNER | ||||
| 61737-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
2 | ||
| 61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-95J00 |
LH5#,6#,YH50,61..V4D;LH50,51,60,61,YH61..COM,WG;YH51,52,62..03S,07S,08S,09S |
1 | ||
| 61739-90C00 |
LH7#,YH71 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-95J00 |
LH61,7#,YH61,71..HRF |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-95J00 |
LH61,7#,YH61,71..HRF |
1 | ||
| 61747A - EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, RH | ||||
| 61747-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61748A - EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, LH | ||||
| 61748-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61771 - PATCH, BACK DOOR OPENING, UPPER RH | ||||
| 61771-90C00 |
LH61,7#,YH61,71..HRF |
1 | ||
| 61772 - PATCH, BACK DOOR OPENING, UPPER LH | ||||
| 61772-90C00 |
LH61,7#,YH61,71..HRF |
1 | ||
| 61784C - BRACE, QUARTER PANEL, INNER LH | ||||
| 61609-90C00 |
LH61,7#,YH61,71..HRF..06S |
1 | ||
| 64125B - ANCHOR, PILLAR SEAT BELT | ||||
| 64125-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 64125B - ANCHOR, PILLAR SEAT BELT | ||||
| 64125-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 64126B - ANCHOR, PILLAR SEAT BELT, LOWER | ||||
| 64126-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 64126B - ANCHOR, PILLAR SEAT BELT, LOWER | ||||
| 64126-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| Common parts | ||||
| 17961-95J00 | ||||
| 53266-90A00 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 6153 | ||||
| 7451 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
