YH71B-QD (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 3YJ
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

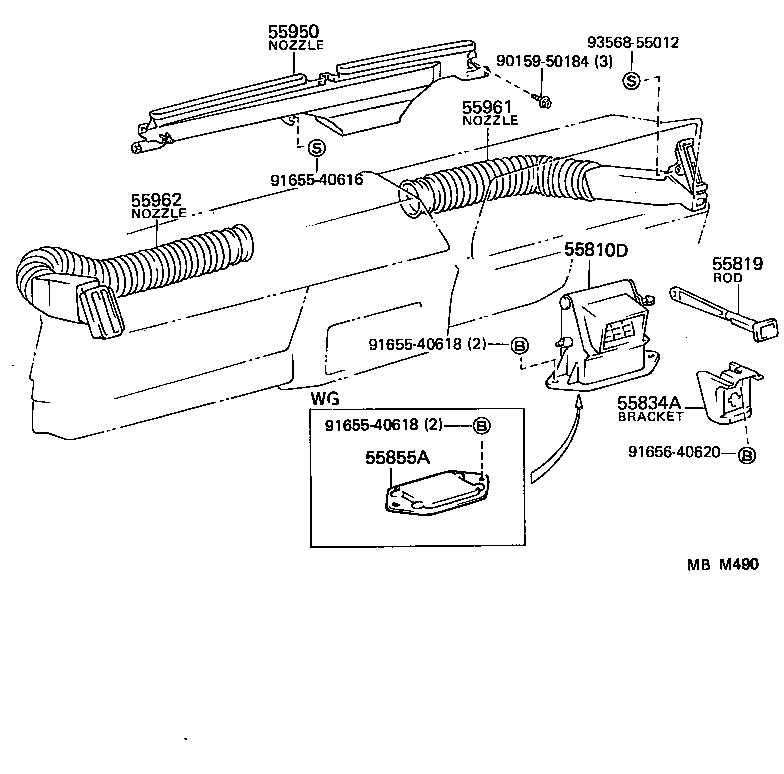

Click highlighted areas on diagram

diagram 55810D 55819 55834A 55855A 55950 55961 55962 9015950184 9165540616 9165540618 9165540618 9165640620 9356855012
Part # Description Qty Price
55810D - VENTILATOR ASSY, FRONT FOOT SIDE
55810-95J00

LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)

 1
55819 - ROD, SIDE VENTILATOR CONTROL
55819-95J00

LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)

 1
55834A - BRACKET, FOOT VENTILATOR CONTROL ROD
55834-95J00

LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55970-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55980-95J01

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
Common parts
90159-50184
91655-40616
91655-40618
91656-40620
93568-55012
