YH71B-JD (1982)
Toyota Hiace Van,Wagon

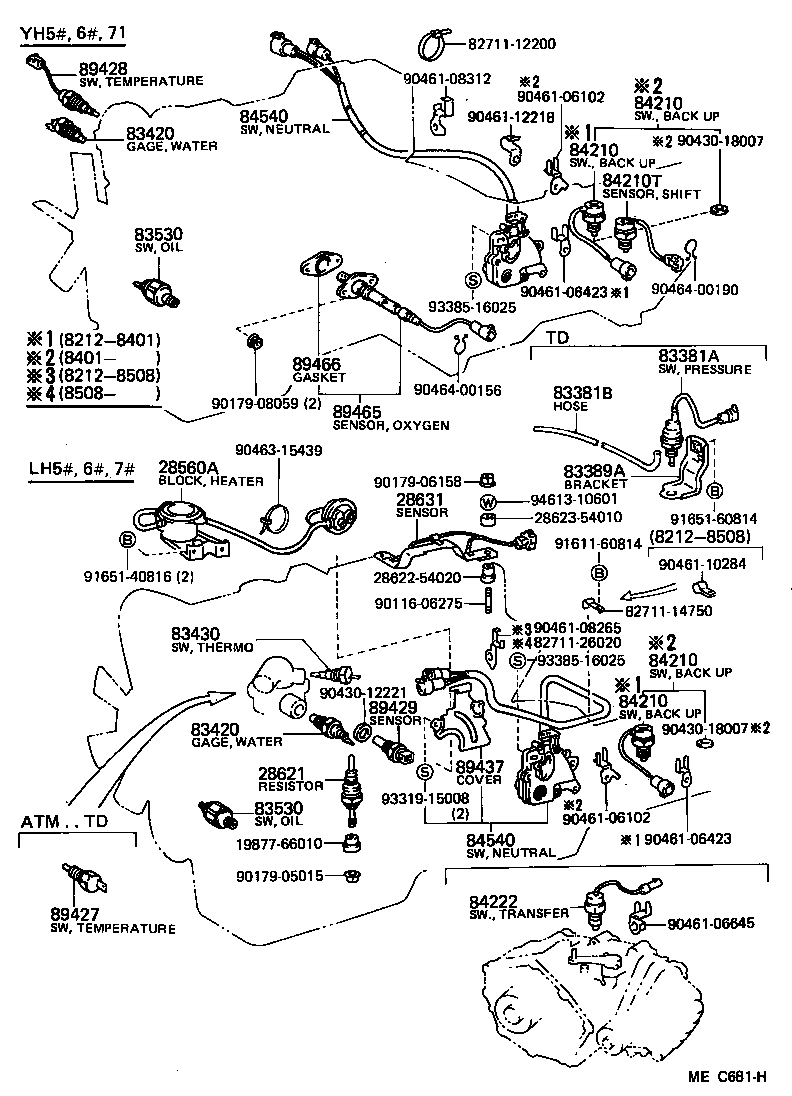

ILLUST NO. 1 OF 7(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-54031 |
L,2L..LH5#,6#,7# |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-54040 |
L,2L#..LH5#,6#,7# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
YH5#,6#,71 |
1 | ||
| 83530-36011 |
LH5#,6#,7# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
YH5#,6#,71 |
1 | ||
| 83530-36011 |
LH5#,6#,7# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-35020 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-35020 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-35020 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-35020 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
LH5#,6#,7# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 82711-12200 | ||||
| 82711-14750 | ||||
| 82711-26020 | ||||
| 90116-06275 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90179-08059 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-06102 | ||||
| 90461-06423 | ||||
| 90461-06645 | ||||
| 90461-08265 | ||||
| 90461-08312 | ||||
| 90461-10284 | ||||
| 90461-12218 | ||||
| 90463-15439 | ||||
| 90464-00156 | ||||
| 90464-00190 | ||||
| 91611-60814 | ||||
| 91651-40816 | ||||
| 91651-60814 | ||||
| 93319-15008 | ||||
| 93385-16025 | ||||
| 94613-10601 | ||||

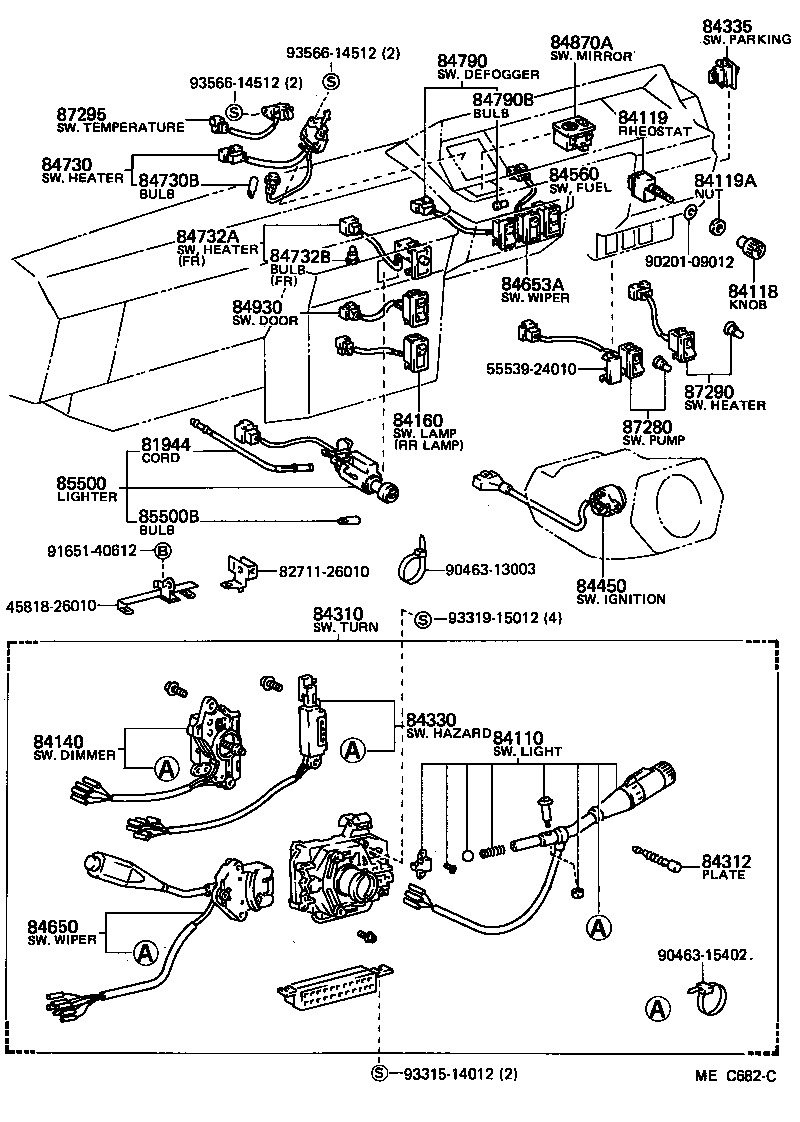

ILLUST NO. 2 OF 7(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29345 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29185 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84172-95J00 |
LH60,61,7#,YH71..15S RR ROOM LAMP |
1 | ||
| 84172-90C00 |
LH70,YH71 FR ROOM LAMP |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26100 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-29175 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-30131 |
YH61,71..V;LH5#,6#,7#,YH50 |
1 | ||
| 84450-27030 |
YH61,71..10S,15S;YH51,52,62..03S,07S,08S,09S |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29685 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-14050 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCL,SCM |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95J00 |
LH5#,6#,7#,YH5#,6#,71 FR HEATER |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
LH5#,6#,7#,YH5#,6#,71 14V 1.4W |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84730-95J02 |
LH50,51,60,61,7#,YH51,61,71..COM,WG RR,NO.1 |
1 | ||
| 84730-95J00 |
LH50,51,60,61,7#,YH51,61,71..COM,WG FR(INSTRUMENT PANEL) |
1 | ||
| 84732-95703 |
LH50,51,60,61,7#,YH51,61,71..COM,WG RR,NO.2 |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 90981-11024 |
LH50,51,60,61,7#,YH51,61,71..COM,WG 12V 1.4W,ﾌﾛﾝﾄ |
1 | ||
| 90981-11024 |
LH50,51,60,61,7#,YH51,61,71..COM,WG 12V 1.4W,RR,NO.1 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-24010 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..(CTD,DLX,GL) |
1 | ||
| 84790-14150 |
LH5#,6#,7# W/TIMER |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
LH5#,6#,7# 12V 1.12W,W/*RWD TIMER SW |
1 | ||
| 84999-10110 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..(CTD,DLX,GL) 12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,DLX |
1 | ||
| Common parts | ||||
| 45818-26010 | ||||
| 55539-24010 | ||||
| 82711-26010 | ||||
| 90201-09012 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 91651-40612 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||

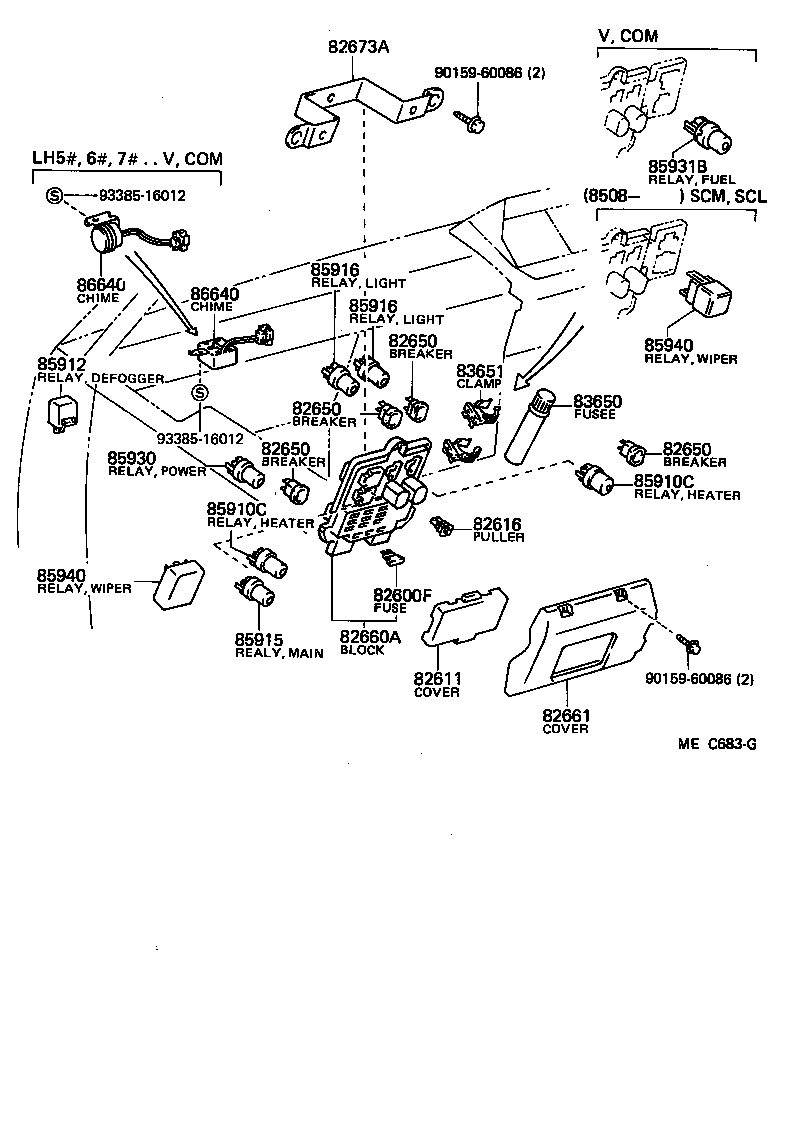

ILLUST NO. 4 OF 7(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
LH5#,6#,7#,YH5#,6#,71 15A |
8 | ||
| 90982-09004 |
LH5#,6#,7#,YH5#,6#,71 20A,黄 |
1 | ||
| 90982-09002 |
LH5#,6#,7#,YH5#,6#,71 10A |
3 | ||
| 90982-09005 |
LH5#,6#,7#,YH5#,6#,71 7.5A |
8 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82661-95J00 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LH5#,6#,7#,YH5#,6#,71 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LH5#,6#,7#,YH5#,6#,71 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LH5#,6#,7#,YH5#,6#,71 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LH5#,6#,7#,YH5#,6#,71 30A |
2 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-95J00 |
LH60,61,7#,YH71..15S |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82672-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25001 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LH5#,6#,71,YH5#,6#,71 |
2 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LH5#,6#,71,YH5#,6#,71 |
2 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 85912-20010 |
LH5#,6#,7# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
LH5#,6#,7#,YH5#,6#,71 IGNITION |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LH5#,6#,7#,YH5#,6#,71 TAIL & HEAD |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LH5#,6#,7#,YH5#,6#,71 TAIL & HEAD |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86650-95J00 |
LH5#,6#,7#..COM,V |
1 | ||
| 86650-95J01 |
YH5#,6#,71..COM,V |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86650-95J00 |
LH5#,6#,7#..COM,V |
1 | ||
| 86650-95J01 |
YH5#,6#,71..COM,V |
1 | ||
| Common parts | ||||
| 90159-60086 | ||||
| 93385-16012 | ||||

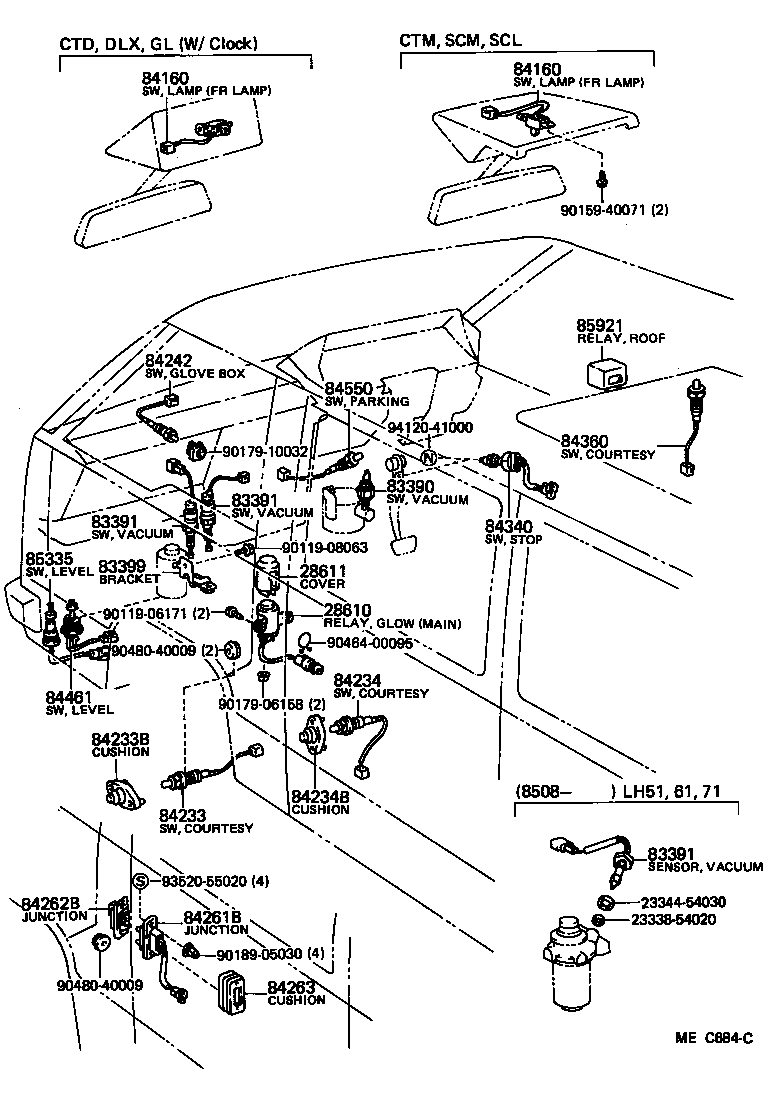

ILLUST NO. 5 OF 7(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54190 |
L,2L#..LH5#,6#,7# MAIN |
1 | ||
| 28610-54021 |
L,2L#..LH5#,6#,7# SUB |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-54020 |
L,2L#..LH5#,6#,7# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12091 |
YH51,52,62;YH61,71..10S,15S MARK=400B |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12091 |
YH51,52,62;YH61,71..10S,15S MARK=400B |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12091 |
YH51,52,62;YH61,71..10S,15S MARK=400B |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-28030 |
YH5#,6#,71 |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84172-95J00 |
LH60,61,7#,YH71..15S RR ROOM LAMP |
1 | ||
| 84172-90C00 |
LH70,YH71 FR ROOM LAMP |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84172-95J00 |
LH60,61,7#,YH71..15S RR ROOM LAMP |
1 | ||
| 84172-90C00 |
LH70,YH71 FR ROOM LAMP |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95J01 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-95J01 |
LH5#,6#,YH50,61..V4D;LH50,51,60,61,YH61..COM,WG;LH7#,YH51,52,62,71..03S,06S,07S,08S,09S,15S |
1 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-22010 |
LH5#,6#,YH50,61..V4D;LH50,51,60,61,YH61..COM,WG;LH7#,YH51,52,62,71..03S,06S,07S,08S,09S,15S |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-26020 |
LH5#,6#,7# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-20030 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 23338-54020 | ||||
| 23344-54030 | ||||
| 90119-06171 | ||||
| 90119-08063 | ||||
| 90159-40071 | ||||
| 90179-06158 | ||||
| 90179-10032 | ||||
| 90189-05030 | ||||
| 90464-00095 | ||||
| 90480-40009 | ||||
| 93520-55020 | ||||
| 94120-41000 | ||||

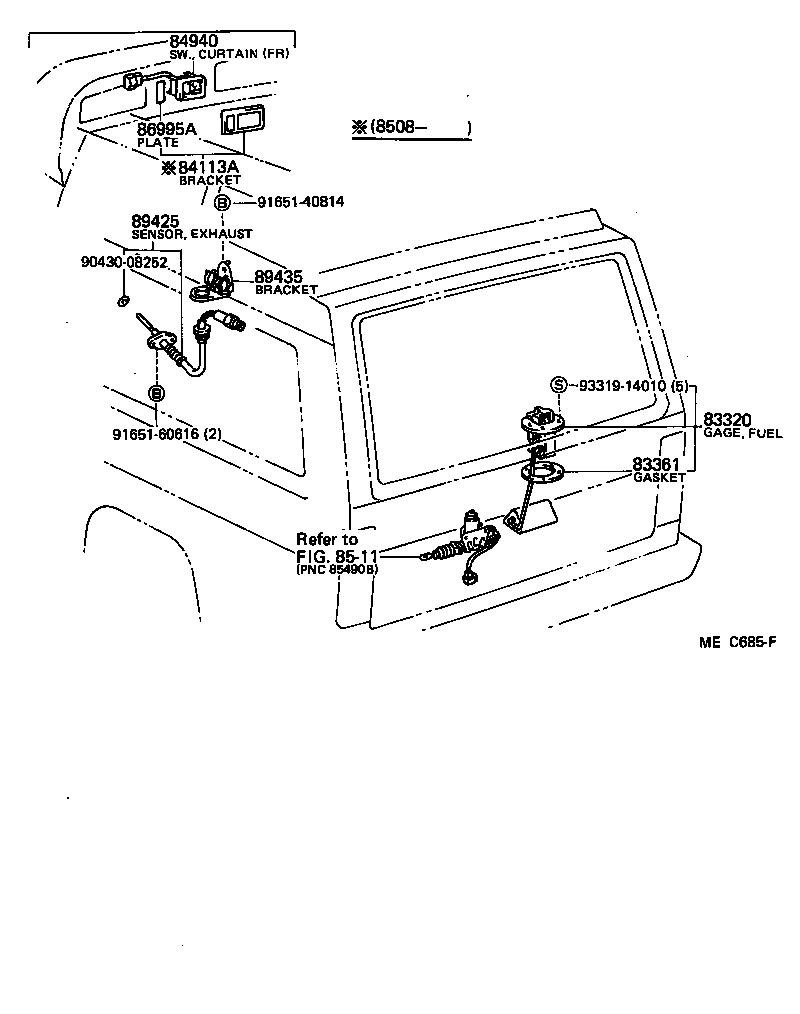

ILLUST NO. 7 OF 7(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29785 |
LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-29265 |
YH52,62,71..03S,15S |
1 | ||
| 89435 - BRACKET, CONNECTOR COVER | ||||
| 89435-28010 |
YH52,62,71..03S,15S |
1 | ||
| Common parts | ||||
| 90430-08252 | ||||
| 91651-40814 | ||||
| 91651-60616 | ||||
| 93319-14010 | ||||
| Linked diagrams | ||||
| 8511 | ||||

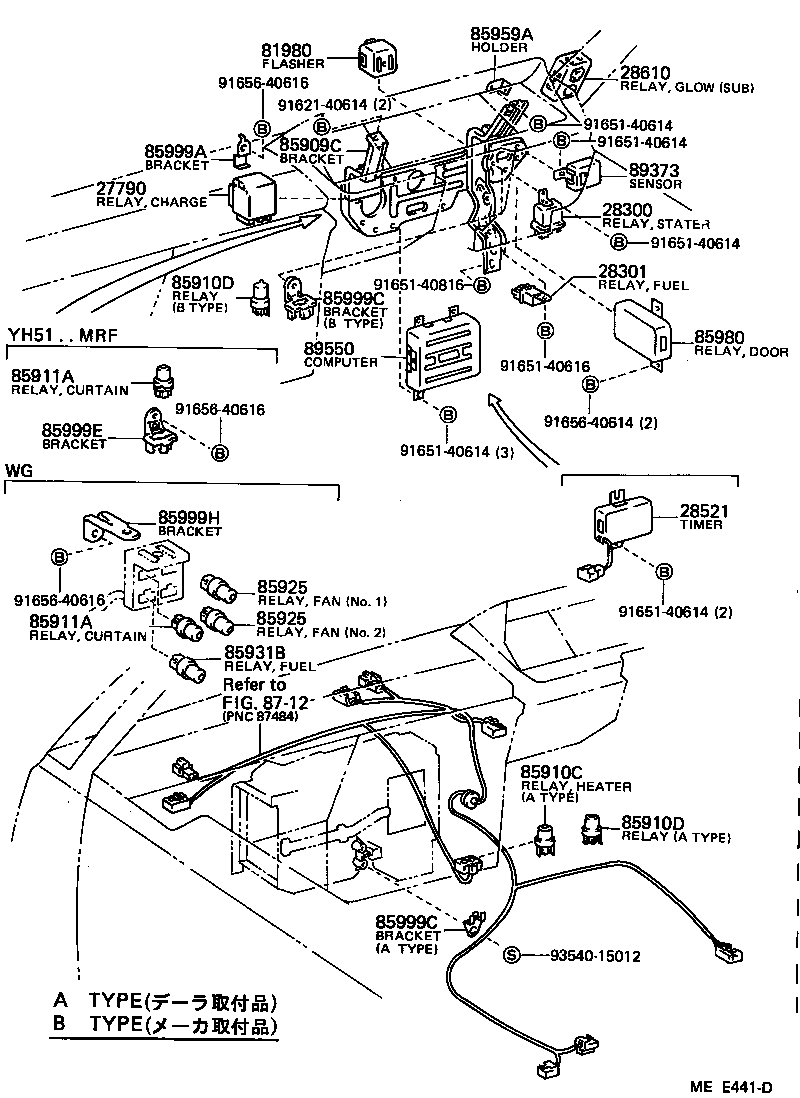

ILLUST NO. 3 OF 7(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-48010 |
L,2L#..LH5#,6#,7# |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54131 |
L,2L..LH5#,6#,7# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54190 |
L,2L#..LH5#,6#,7# MAIN |
1 | ||
| 28610-54021 |
L,2L#..LH5#,6#,7# SUB |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LH5#,6#,71,YH5#,6#,71 |
2 | ||
| 85910D - RELAY (FOR HEATER IDLE UP) | ||||
| 90987-02004 |
YH51,61,71..COM,WG |
1 | ||
| 85910D - RELAY (FOR HEATER IDLE UP) | ||||
| 90987-02004 |
YH51,61,71..COM,WG |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-25010 |
LH5#,6#,7# GLOW PLUG RELAY:SUB |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-35200 |
YH52,62,71..03S,15S |
1 | ||
| Common parts | ||||
| 91621-40614 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91656-40614 | ||||
| 91656-40616 | ||||
| 93540-15012 | ||||
| Linked diagrams | ||||
| 8712 | ||||

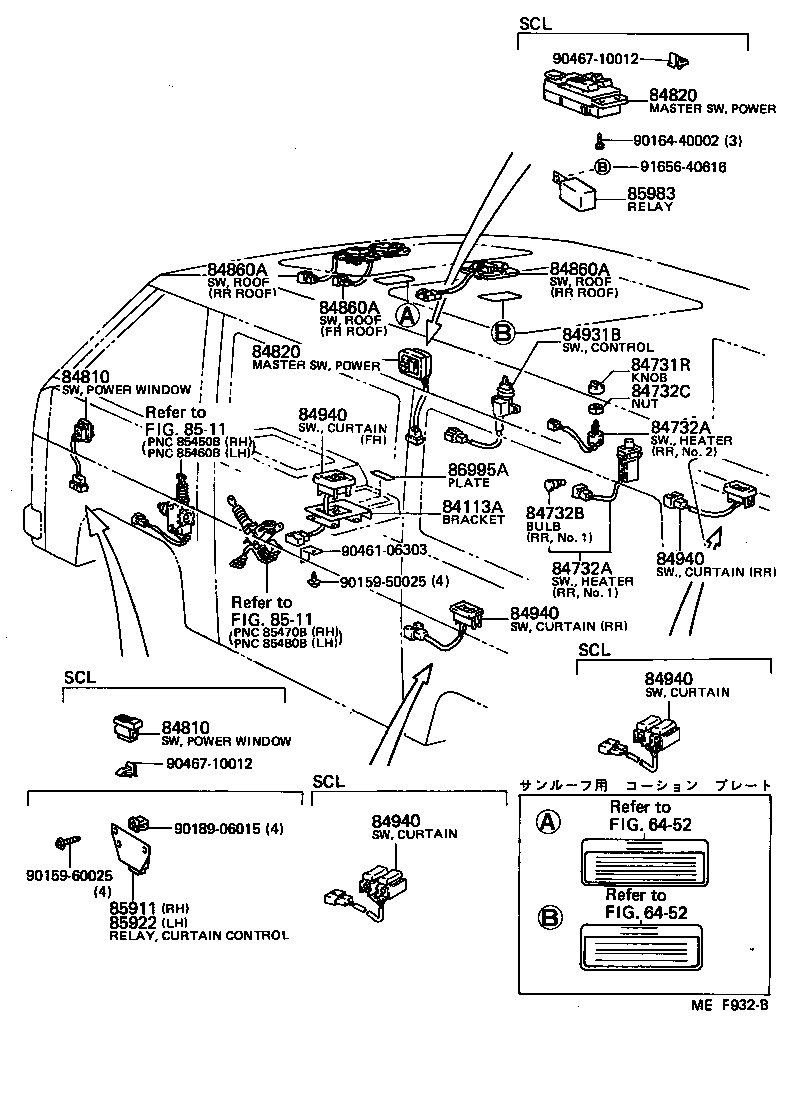

ILLUST NO. 6 OF 7(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84731R - KNOB, REAR HEATER BLOWER SWITCH | ||||
| 84731-12010 |
LH50,51,60,61,7#,YH51,61,71..COM,WG |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84730-95J02 |
LH50,51,60,61,7#,YH51,61,71..COM,WG RR,NO.1 |
1 | ||
| 84730-95J00 |
LH50,51,60,61,7#,YH51,61,71..COM,WG FR(INSTRUMENT PANEL) |
1 | ||
| 84732-95703 |
LH50,51,60,61,7#,YH51,61,71..COM,WG RR,NO.2 |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84730-95J02 |
LH50,51,60,61,7#,YH51,61,71..COM,WG RR,NO.1 |
1 | ||
| 84730-95J00 |
LH50,51,60,61,7#,YH51,61,71..COM,WG FR(INSTRUMENT PANEL) |
1 | ||
| 84732-95703 |
LH50,51,60,61,7#,YH51,61,71..COM,WG RR,NO.2 |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 90981-11024 |
LH50,51,60,61,7#,YH51,61,71..COM,WG 12V 1.4W,ﾌﾛﾝﾄ |
1 | ||
| 90981-11024 |
LH50,51,60,61,7#,YH51,61,71..COM,WG 12V 1.4W,RR,NO.1 |
1 | ||
| 84732C - NUT, REAR HEATER BLOWER SWITCH | ||||
| 90170-11206 |
LH50,51,60,61,7#,YH51,61,71..COM,WG |
1 | ||
| Common parts | ||||
| 90159-50025 | ||||
| 90159-60025 | ||||
| 90164-40002 | ||||
| 90189-06015 | ||||
| 90461-06303 | ||||
| 90467-10012 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 6452 | ||||
| 8511 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
