YH71B-JD (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine 3YJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8212- )

Click highlighted areas on diagram

diagram 73150 73178A 73210 73220 73223 73223 73230 73240 9014950026 9015960138 9095001126
Part # Description Qty Price
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-95J04

LH61,71,YH71..15S

 1
73150-95J00

LH60,70,YH71..15S

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-95J0005

LH50,60,70,YH5#,61,71..DLX,GL,STD

W/*ELR,BEIGE,BEIGE

 1
73210-95J05

LH50,60,70,YH50,61,71..DLX,STD

 1
73210-95J0705

LH5#,61,71,YH50,52,61,71..COM,V

W/*ELR,BEIGE,BEIGE

 1
73210-95J10

LH71,YH71..DLX..15S

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-95J0005

LH50,60,70,YH5#,61,71..DLX,GL,STD

W/*ELR,BEIGE,BEIGE

 1
73210-95J05

LH50,60,70,YH50,61,71..DLX,STD

 1
73210-95J0705

LH5#,61,71,YH50,52,61,71..COM,V

W/*ELR,BEIGE,BEIGE

 1
73210-95J11

LH71,YH71..DLX..15S

 1
73223 - COVER, SEAT BELT RETRACTOR
73223-95J00

LH5#,6#,71,YH5#,6#,71

 2
73223 - COVER, SEAT BELT RETRACTOR
73223-95J00

LH5#,6#,71,YH5#,6#,71

 2
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-95J0405

LH5#,61,71,YH50,52,6#,71..DLX,GL,STD

BEIGE,BEIGE

 1
73230-95J0005

LH50,60,70,YH50,61,71..DLX,GL,STD

BEIGE,BEIGE

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95J0005

LH50,60,70,YH50,61,71..DLX,GL,STD

BEIGE,BEIGE

 1
73240-95J0605

LH5#,61,71,YH50,52,6#,71..DLX,GL,STD

BEIGE,BEIGE

 1
Common parts
90149-50026
90159-60138
90950-01126

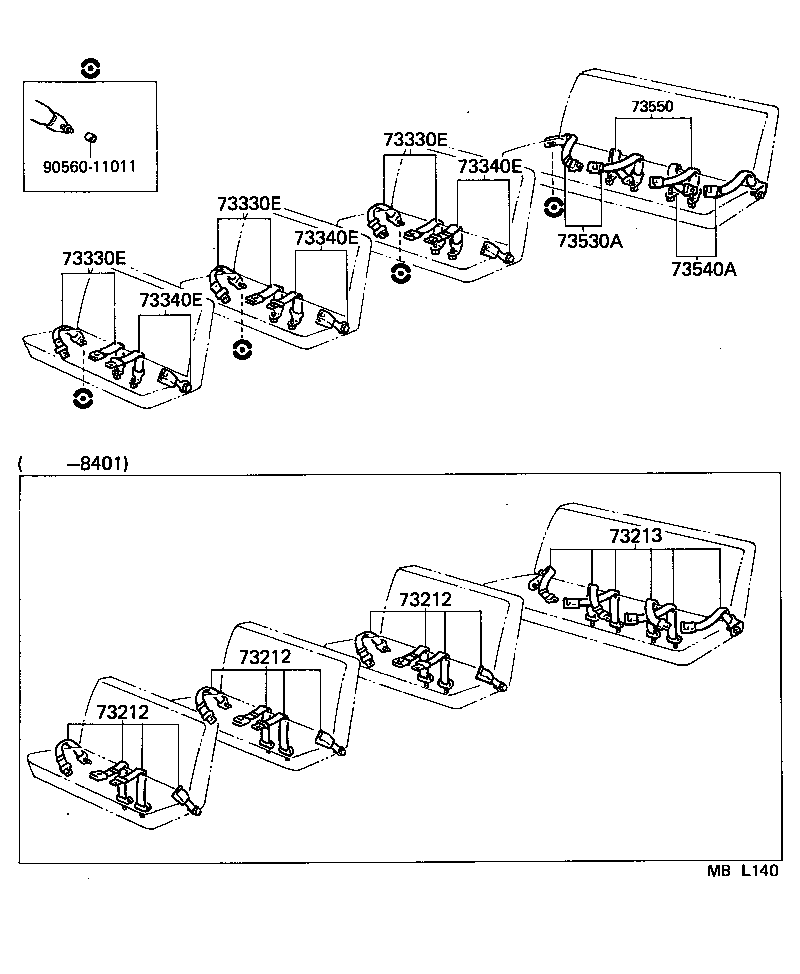

ILLUST NO. 2 OF 2(8212- )15S

Click highlighted areas on diagram

diagram 73212 73212 73212 73213 73330E 73330E 73330E 73340E 73340E 73340E 73530A 73540A 73550 9056011011
Part # Description Qty Price
73212 - BELT ASSY, PASSENGER SEAT, NO.1
73330-90C00

LH60,70,YH71..15S

 3
73212 - BELT ASSY, PASSENGER SEAT, NO.1
73330-90C00

LH60,70,YH71..15S

 3
73212 - BELT ASSY, PASSENGER SEAT, NO.1
73330-90C00

LH60,70,YH71..15S

 3
73213 - BELT ASSY, PASSENGER SEAT, NO.2
73340-90C00

LH60,70,YH71..15S

 1
73330E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, RH
73330-95J04

LH61,71,YH71..15S

 3
73330E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, RH
73330-95J04

LH61,71,YH71..15S

 3
73330E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, RH
73330-95J04

LH61,71,YH71..15S

 3
73340E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, LH
73340-95J04

LH61,71,YH71..15S

 3
73340E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, LH
73340-95J04

LH61,71,YH71..15S

 3
73340E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, LH
73340-95J04

LH61,71,YH71..15S

 3
73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH
73530-95J02

LH61,71,YH71..15S

 1
73540A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, LH
73540-95J00

LH61,71,YH71..15S

 1
73550 - BELT ASSY, REAR NO.2 SEAT LAP TYPE, CENTER
73550-95J00

LH61,71,YH71..15S

 1
Common parts
90560-11011
