YH71B-JD (1982)
Toyota Hiace Van,Wagon
(8212- )2Y,3Y,3YJ

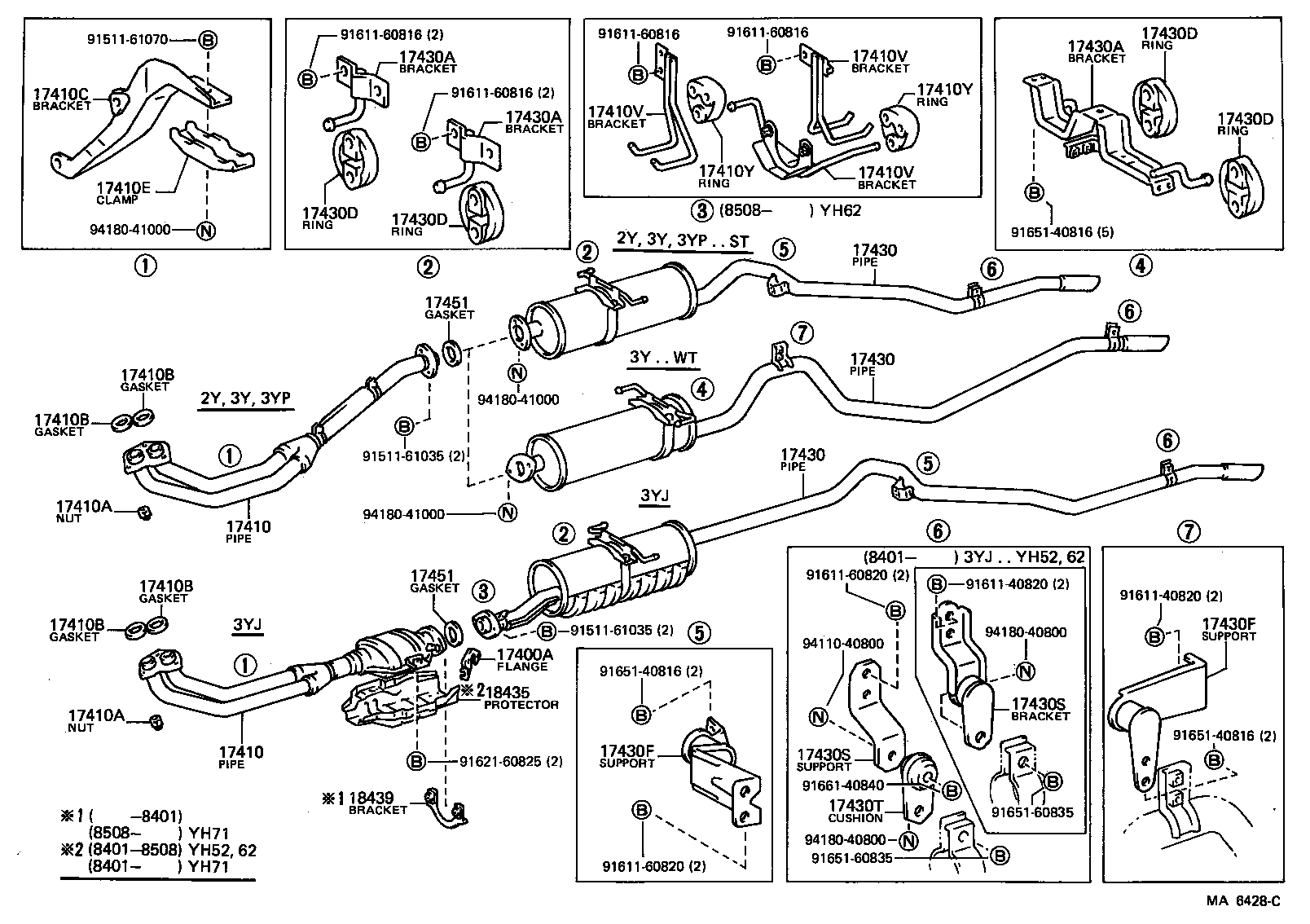

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400A - FLANGE, THERMOSENSER INLET | ||||
| 18491-18010 |
3YJ..YH71 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-71050 |
3YJ..YH71 |
1 | ||
| 17410-71030 |
3Y..YH61,71..MTM |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-71050 |
3YJ..YH71 |
1 | ||
| 17410-71030 |
3Y..YH61,71..MTM |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10010 |
L,2L,2Y,3Y#..LH5#,6#,7#,YH5#,6#,71 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10010 |
L,2L,2Y,3Y#..LH5#,6#,7#,YH5#,6#,71 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
L,2L..LH5#,6#,7# |
1 | ||
| 90917-06001 |
2Y,3Y#..YH5#,6#,71 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
L,2L..LH5#,6#,7# |
1 | ||
| 90917-06001 |
2Y,3Y#..YH5#,6#,71 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
L,2L..LH5#,6#,7# |
1 | ||
| 90917-06001 |
2Y,3Y#..YH5#,6#,71 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
L,2L..LH5#,6#,7# |
1 | ||
| 90917-06001 |
2Y,3Y#..YH5#,6#,71 |
2 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-71020 |
2Y,3Y#..YH5#,61,71 |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04030 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-71080 |
L,3Y..LH70,YH71 |
1 | ||
| 17430-71090 |
3YJ..YH71 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-71080 |
L,3Y..LH70,YH71 |
1 | ||
| 17430-71090 |
3YJ..YH71 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-71080 |
L,3Y..LH70,YH71 |
1 | ||
| 17430-71090 |
3YJ..YH71 |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17573-71080 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST LH |
1 | ||
| 17573-71070 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST RH |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17573-71080 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST LH |
1 | ||
| 17573-71070 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST RH |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17573-71080 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST LH |
1 | ||
| 17573-71070 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST RH |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-15010 |
L,2L,3Y..LH5#,7#,YH61..COM,V |
2 | ||
| 17565-15010 |
L,2L,2Y,3Y,3YJ..LH60,61,YH50,52,71 |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-15010 |
L,2L,3Y..LH5#,7#,YH61..COM,V |
2 | ||
| 17565-15010 |
L,2L,2Y,3Y,3YJ..LH60,61,YH50,52,71 |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-15010 |
L,2L,3Y..LH5#,7#,YH61..COM,V |
2 | ||
| 17565-15010 |
L,2L,2Y,3Y,3YJ..LH60,61,YH50,52,71 |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-15010 |
L,2L,3Y..LH5#,7#,YH61..COM,V |
2 | ||
| 17565-15010 |
L,2L,2Y,3Y,3YJ..LH60,61,YH50,52,71 |
2 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17565-71010 |
2L,2Y,3Y,3YJ..LH51,61,71,YH50,52,61,71..(COM,V)..ST |
1 | ||
| 17565-71010 |
L,2Y,3Y,3YJ..LH50,60,70,YH50,61,71..(COM,V)..ST |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17565-71010 |
2L,2Y,3Y,3YJ..LH51,61,71,YH50,52,61,71..(COM,V)..ST |
1 | ||
| 17565-71010 |
L,2Y,3Y,3YJ..LH50,60,70,YH50,61,71..(COM,V)..ST |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17566-71030 |
L,2Y,3Y,3YJ..LH50,70,YH50,61,71..(COM,V)..ST |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17566-71030 |
L,2Y,3Y,3YJ..LH50,70,YH50,61,71..(COM,V)..ST |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90917-08004 |
L,2Y,3Y,3YJ..LH50,70,YH50,61,71..COM,V |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
L,2L,2Y,3Y..LH5#,6#,7#,YH50,51,61,71 |
1 | ||
| 90917-06012 |
3YJ..YH52,62,71 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
L,2L,2Y,3Y..LH5#,6#,7#,YH50,51,61,71 |
1 | ||
| 90917-06012 |
3YJ..YH52,62,71 |
1 | ||
| 18435 - PROTECTOR, CATALYTIC CONVERTER | ||||
| 18407-27010 |
3YJ..YH71 |
1 | ||
| 18439 - BRACKET, CONVERTOR PROTECTOR, REAR | ||||
| 18495-71010 |
3YU,3YJ..YH51,61,71 |
1 | ||
| Common parts | ||||
| 91511-61035 | ||||
| 91511-61070 | ||||
| 91611-40820 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91621-60825 | ||||
| 91651-40816 | ||||
| 91651-60835 | ||||
| 91661-40840 | ||||
| 94110-40800 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||
(8212- )L,2L#..LH50,51,60,61,7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-71050 |
3YJ..YH71 |
1 | ||
| 17410-71030 |
3Y..YH61,71..MTM |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-71050 |
3YJ..YH71 |
1 | ||
| 17410-71030 |
3Y..YH61,71..MTM |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-71050 |
3YJ..YH71 |
1 | ||
| 17410-71030 |
3Y..YH61,71..MTM |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10010 |
L,2L,2Y,3Y#..LH5#,6#,7#,YH5#,6#,71 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10010 |
L,2L,2Y,3Y#..LH5#,6#,7#,YH5#,6#,71 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10010 |
L,2L,2Y,3Y#..LH5#,6#,7#,YH5#,6#,71 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
L,2L..LH5#,6#,7# |
1 | ||
| 90917-06001 |
2Y,3Y#..YH5#,6#,71 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
L,2L..LH5#,6#,7# |
1 | ||
| 90917-06001 |
2Y,3Y#..YH5#,6#,71 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
L,2L..LH5#,6#,7# |
1 | ||
| 90917-06001 |
2Y,3Y#..YH5#,6#,71 |
2 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-71020 |
2Y,3Y#..YH5#,61,71 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-71020 |
2Y,3Y#..YH5#,61,71 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-71080 |
L,3Y..LH70,YH71 |
1 | ||
| 17430-71090 |
3YJ..YH71 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-71080 |
L,3Y..LH70,YH71 |
1 | ||
| 17430-71090 |
3YJ..YH71 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-71080 |
L,3Y..LH70,YH71 |
1 | ||
| 17430-71090 |
3YJ..YH71 |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17573-71080 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST LH |
1 | ||
| 17573-71070 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST RH |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17573-71080 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST LH |
1 | ||
| 17573-71070 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST RH |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17573-71080 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST LH |
1 | ||
| 17573-71070 |
L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST RH |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-15010 |
L,2L,3Y..LH5#,7#,YH61..COM,V |
2 | ||
| 17565-15010 |
L,2L,2Y,3Y,3YJ..LH60,61,YH50,52,71 |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-15010 |
L,2L,3Y..LH5#,7#,YH61..COM,V |
2 | ||
| 17565-15010 |
L,2L,2Y,3Y,3YJ..LH60,61,YH50,52,71 |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-15010 |
L,2L,3Y..LH5#,7#,YH61..COM,V |
2 | ||
| 17565-15010 |
L,2L,2Y,3Y,3YJ..LH60,61,YH50,52,71 |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-15010 |
L,2L,3Y..LH5#,7#,YH61..COM,V |
2 | ||
| 17565-15010 |
L,2L,2Y,3Y,3YJ..LH60,61,YH50,52,71 |
2 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17565-71010 |
L,2Y,3Y,3YJ..LH50,60,70,YH50,61,71..(COM,V)..ST |
1 | ||
| 17565-71010 |
2L,2Y,3Y,3YJ..LH51,61,71,YH50,52,61,71..(COM,V)..ST |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17565-71010 |
L,2Y,3Y,3YJ..LH50,60,70,YH50,61,71..(COM,V)..ST |
1 | ||
| 17565-71010 |
2L,2Y,3Y,3YJ..LH51,61,71,YH50,52,61,71..(COM,V)..ST |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17565-71010 |
L,2Y,3Y,3YJ..LH50,60,70,YH50,61,71..(COM,V)..ST |
1 | ||
| 17565-71010 |
2L,2Y,3Y,3YJ..LH51,61,71,YH50,52,61,71..(COM,V)..ST |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17566-71030 |
L,2Y,3Y,3YJ..LH50,70,YH50,61,71..(COM,V)..ST |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17566-71030 |
L,2Y,3Y,3YJ..LH50,70,YH50,61,71..(COM,V)..ST |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17566-71030 |
L,2Y,3Y,3YJ..LH50,70,YH50,61,71..(COM,V)..ST |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90917-08004 |
L,2Y,3Y,3YJ..LH50,70,YH50,61,71..COM,V |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
L,2L,2Y,3Y..LH5#,6#,7#,YH50,51,61,71 |
1 | ||
| 90917-06012 |
3YJ..YH52,62,71 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
L,2L,2Y,3Y..LH5#,6#,7#,YH50,51,61,71 |
1 | ||
| 90917-06012 |
3YJ..YH52,62,71 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
L,2L,2Y,3Y..LH5#,6#,7#,YH50,51,61,71 |
1 | ||
| 90917-06012 |
3YJ..YH52,62,71 |
1 | ||
| Common parts | ||||
| 91511-61035 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91651-40816 | ||||
| 91651-60830 | ||||
| 91651-60835 | ||||
| 91659-61230 | ||||
| 91659-61260 | ||||
| 94110-40800 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||
(8708-8808)2Y,3Y,3YJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91511-61035 | ||||
| 91511-61070 | ||||
| 91611-40820 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91621-60825 | ||||
| 91651-40816 | ||||
| 91651-60835 | ||||
| 91661-40840 | ||||
| 94110-40800 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||
