YH62V-QB (1987)
Toyota Hiace Van,Wagon

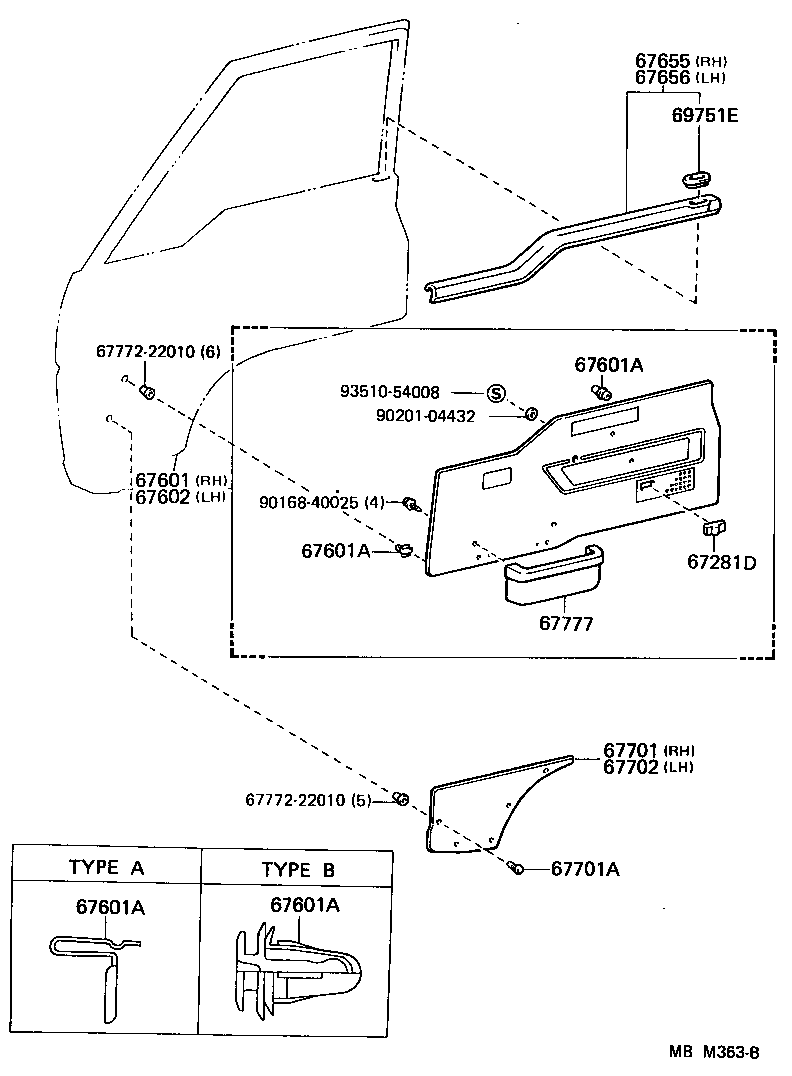

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67281D - KNOB, FRONT DOOR VENTILATING HOLE COVER | ||||
| 67282-95J0016 |
LH71..5H;LH5#,6#,YH50,52,6#,71..(COM,V)..(CD,DX) BROWN,TRIM4#,左側 |
1 | ||
| 67281-95J0016 |
LH71..5H;LH5#,6#,YH50,52,6#,71..(COM,V)..(CD,DX) BROWN,TRIM4#,右側 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-95J4706 |
LH5#,6#,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ A |
3 | ||
| 67771-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL ﾀｲﾌﾟ B |
8 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ A |
3 | ||
| 67771-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL ﾀｲﾌﾟ B |
8 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ A |
3 | ||
| 67771-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL ﾀｲﾌﾟ B |
8 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ A |
3 | ||
| 67771-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL ﾀｲﾌﾟ B |
8 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-95J2116 |
LH5#,6#,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67778-2203016 |
LH71;LH5#,6#,YH5#,6#,71..CD,DX,SCM BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 67772-22010 | ||||
| 90168-40025 | ||||
| 90201-04432 | ||||
| 93510-54008 | ||||

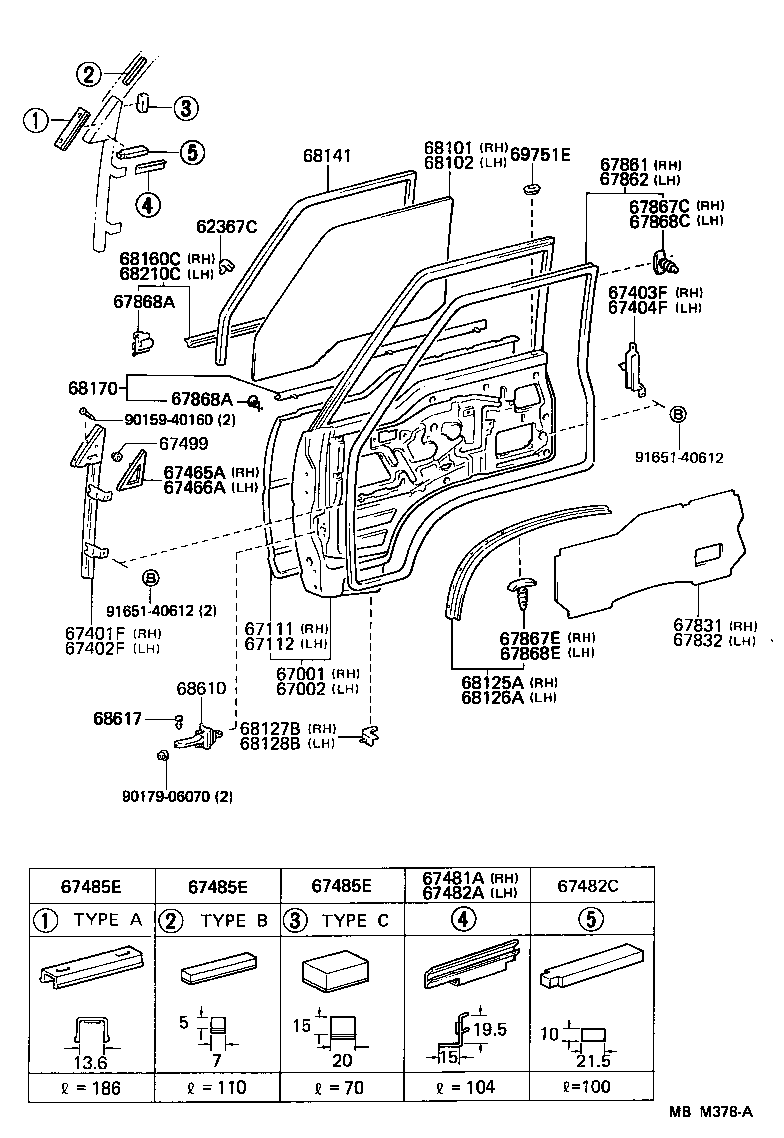

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62367C - CLIP, DOOR WINDOW GLASS | ||||
| 62367-10010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
2 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-95J27 |
LH71..V,WG;LH5#,6#,YH50,51,52,6#,71..CD,DX |
1 | ||
| 67001-95J19 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-95J15 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX |
1 | ||
| 67002-95J26 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-95J01 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-95J00 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 67482C - PACKING, FRONT DOOR FRONT LOWER FRAME | ||||
| 67482-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
2 | ||
| 67485E - SEAL, FRONT DOOR BRACKET | ||||
| 67485-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ A |
2 | ||
| 67485-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ C |
2 | ||
| 67485-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ B |
2 | ||
| 67485E - SEAL, FRONT DOOR BRACKET | ||||
| 67485-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ A |
2 | ||
| 67485-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ C |
2 | ||
| 67485-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ B |
2 | ||
| 67485E - SEAL, FRONT DOOR BRACKET | ||||
| 67485-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ A |
2 | ||
| 67485-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ C |
2 | ||
| 67485-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 ﾀｲﾌﾟ B |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-95J00 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S) |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-95J00 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S) |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S) |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S) |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-95401 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S) |
27 | ||
| 67867E - RETAINER, FRONT DOOR LOWER PROTECTOR, RH | ||||
| 67868-30040 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
11 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 68212-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 外側 |
12 | ||
| 90467-08071 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 内側 |
14 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 68212-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 外側 |
12 | ||
| 90467-08071 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 内側 |
14 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-95401 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S) |
27 | ||
| 67868E - RETAINER, FRONT DOOR LOWER PROTECTOR, LH | ||||
| 67868-30040 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
11 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-95J00 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX *TEM,厚さ=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-95J00 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX *TEM,厚さ=4.0 |
1 | ||
| 68125A - PROTECTOR, FRONT DOOR, LOWER RH | ||||
| 68125-95J03 |
LH56,61,71,YH5#,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 68125-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 68125-95J03 |
LH5#,6#,71,YH5#,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 68126A - PROTECTOR, FRONT DOOR, LOWER LH | ||||
| 68126-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 68126-95J03 |
LH56,61,71,YH5#,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 68126-95J03 |
LH5#,6#,71,YH5#,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 68127B - SHUTTER, FRONT DOOR, LOWER RH | ||||
| 68127-95J02 |
LH56,61,71,YH5#,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 68127-95J02 |
LH5#,6#,71,YH5#,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 68127-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 68128B - SHUTTER, FRONT DOOR, LOWER LH | ||||
| 68128-95J02 |
LH56,61,71,YH5#,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 68128-95J02 |
LH5#,6#,71,YH5#,6#,71 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 68128-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
2 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-95J04 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 右側 |
1 | ||
| 68172-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 左側 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-95J04 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-90A00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
2 | ||
| Common parts | ||||
| 90159-40160 | ||||
| 90179-06070 | ||||
| 91651-40612 | ||||
