YH61VH-QDE (1987)
Toyota Hiace Van,Wagon
(8708- )LH71 ; (8708- )LH5#,6#,YH50,51,52,6#,71..CD,DX

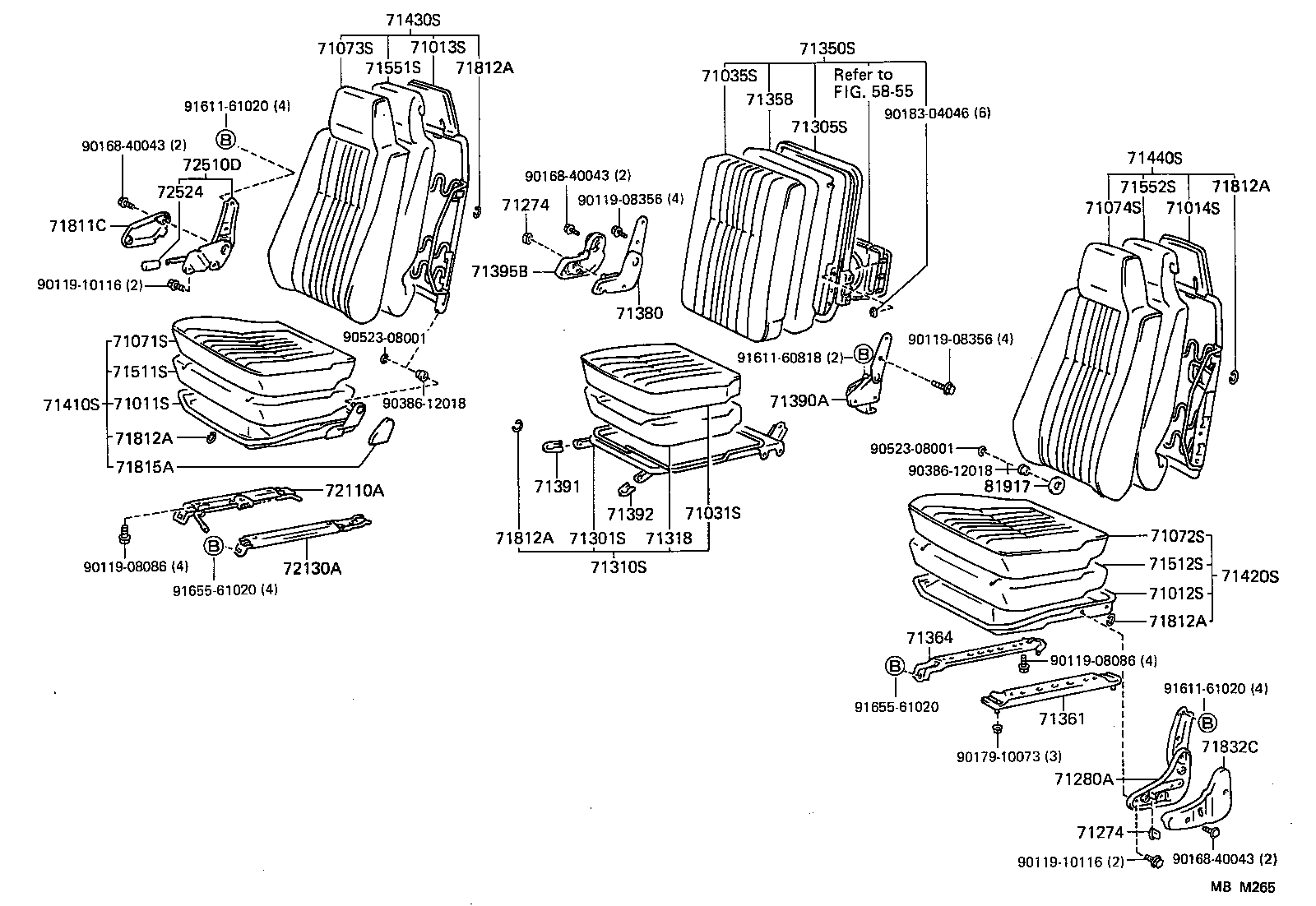

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-95J0806 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71150-95J07 |
LH5#,6#,71,YH50,52,6#,71..V..(CD,DX) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71160-95J10 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX |
1 | ||
| 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71031-95J1306 |
LH51,61,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71035-95J1706 |
LH51,61,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J5906 |
LH5#,6#,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J6506 |
LH5#,6#,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N0406 |
LH5#,6#,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95N1906 |
LH5#,6#,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J0016 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
1 | ||
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J0016 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
1 | ||
| 71280A - HINGE ASSY, FRONT SEAT BACK, LH | ||||
| 71280-95J00 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX |
1 | ||
| 71301S - FRAME SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71301-95J03 |
LH51,61,71,YH50,51,52,6#,71..4HC,5H |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-95J00 |
LH51,61,71,YH50,51,52,6#,71..(4HC,5H)..(CD,DX,GL) |
1 | ||
| 71310S - CUSHION ASSY, FRONT SEAT, CENTER | ||||
| 71310-95J1406 |
LH51,61,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| 71318 - PAD, CENTER SEAT CUSHION | ||||
| 71318-95J03 |
LH51,61,71,YH50,51,52,6#,71..4HC,5H |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-95J1406 |
LH51,61,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71358-95J04 |
LH51,61,71,YH50,51,52,6#,71..4HC,5H |
1 | ||
| 71361 - BRACKET, FRONT SEAT SET, NO.1 | ||||
| 71361-95J01 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| 71364 - BRACKET, FRONT SEAT SET, NO.4 | ||||
| 71364-95J00 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-95J03 |
LH51,61,71,YH50,51,52,6#,71..4HC,5H |
1 | ||
| 71390A - HINGE ASSY, CENTER SEAT, LH | ||||
| 71390-95J0206 |
LH51,61,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| 71391 - COVER, CENTER SEAT CUSHION BRACKET, RH | ||||
| 71391-95J0206 |
LH61,YH61..(4HC,5H)..(CD,DX);LH51,71,YH50,51,52,62,71..(4HC,5H)..(CD,DX,GL) BROWN,TRIM4# |
1 | ||
| 71392 - COVER, CENTER SEAT CUSHION BRACKET, LH | ||||
| 71392-95J0206 |
LH61,YH61..(4HC,5H)..(CD,DX);LH51,71,YH50,51,52,62,71..(4HC,5H)..(CD,DX,GL) BROWN,TRIM4# |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-95J0016 |
LH61,YH61..(4HC,5H)..(CD,DX);LH51,71,YH50,51,52,62,71..(4HC,5H)..(CD,DX,GL) BROWN,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J6006 |
LH5#,6#,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J6606 |
LH5#,6#,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95J8806 |
LH5#,6#,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N0306 |
LH5#,6#,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-95J02 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J00 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J03 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0106 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH51,61,71,YH50,51,52,6#,71..4HC,5H |
14 | ||
| 90468-18071 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX |
66 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH51,61,71,YH50,51,52,6#,71..4HC,5H |
14 | ||
| 90468-18071 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX |
66 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH51,61,71,YH50,51,52,6#,71..4HC,5H |
14 | ||
| 90468-18071 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX |
66 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH51,61,71,YH50,51,52,6#,71..4HC,5H |
14 | ||
| 90468-18071 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX |
66 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH51,61,71,YH50,51,52,6#,71..4HC,5H |
14 | ||
| 90468-18071 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX |
66 | ||
| 71815A - COVER, FRONT SEAT CUSHION HINGE, RH | ||||
| 71815-95J0016 |
LH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM BROWN,TRIM4# |
1 | ||
| 71832C - COVER, FRONT LH SEAT HINGE | ||||
| 71832-95J0006 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-95J0006 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0016 |
LH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM BROWN,TRIM4# |
1 | ||
| 81917 - WASHER, LEATHER | ||||
| 81917-95J0006 |
LH5#,6#,71,YH50,52,6#,71..V..(CD,DX) BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90119-08356 | ||||
| 90119-10116 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90183-04046 | ||||
| 90386-12018 | ||||
| 90523-08001 | ||||
| 91611-60818 | ||||
| 91611-61020 | ||||
| 91655-61020 | ||||
| Linked diagrams | ||||
| 5855 | ||||
(8708- )LH51,61,71,YH50,51,61,71..05S,06S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71617 - PROTECTOR, REAR SEAT BACK | ||||
| 71617-95A0306 |
LH51,6#,71,YH50,61,71..VSG..DX..(06S,08S,09S) BROWN,TRIM4# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,71,YH50,51,61,71..(DX,GL)..(05S,06S) |
9 | ||
| 90468-18071 |
LH5#,6#,71,YH50,51,61,71..05S,06S |
11 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,71,YH50,51,61,71..(DX,GL)..(05S,06S) |
9 | ||
| 90468-18071 |
LH5#,6#,71,YH50,51,61,71..05S,06S |
11 | ||
| 72630A - LOCK ASSY, REAR NO.1 SEAT | ||||
| 72630-95J01 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..(DX,GL)..(05S,06S) |
1 | ||
| 72639 - KNOB, REAR SEAT LOCK | ||||
| 72639-95J00C0 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..(DX,GL)..(05S,06S) BLACK |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95J3406 |
LH51,61,71,YH50,61,71..06S BROWN,TRIM4# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95J2706 |
LH51,6#,71,YH50,61,71..VSG..DX..(06S,08S,09S) BROWN,TRIM4# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95J3506 |
LH51,61,71,YH50,61,71..06S BROWN,TRIM4# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J03 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..VSG..(DX,GL)..(05S,06S,09S) |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95J3306 |
LH51,61,71,YH50,61,71..06S BROWN,TRIM4# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J12 |
LH51,61,71,YH50,61,71..06S |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J02 |
LH5#,6#,71,YH50,61,71..DX..(05S,06S) |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-95J03 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..VSG..(DX,GL)..(05S,06S,09S) |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 79189-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..VSG..(05S,06S,09S) |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..VSG..(05S,06S,09S) |
2 | ||
| 79670 - HINGE ASSY, NO.1 SEAT, RH | ||||
| 79670-95J0406 |
LH51,61,71,YH50,61,71..06S BROWN,TRIM4# |
1 | ||
| 79680 - HINGE ASSY, NO.1 SEAT, LH | ||||
| 79680-95J0406 |
LH51,61,71,YH50,61,71..06S BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10049 | ||||
| 90468-03018 | ||||
| 91616-61025 | ||||
| 93530-44016 | ||||
