YH61VH-QDE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 3Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )HRF,SRF

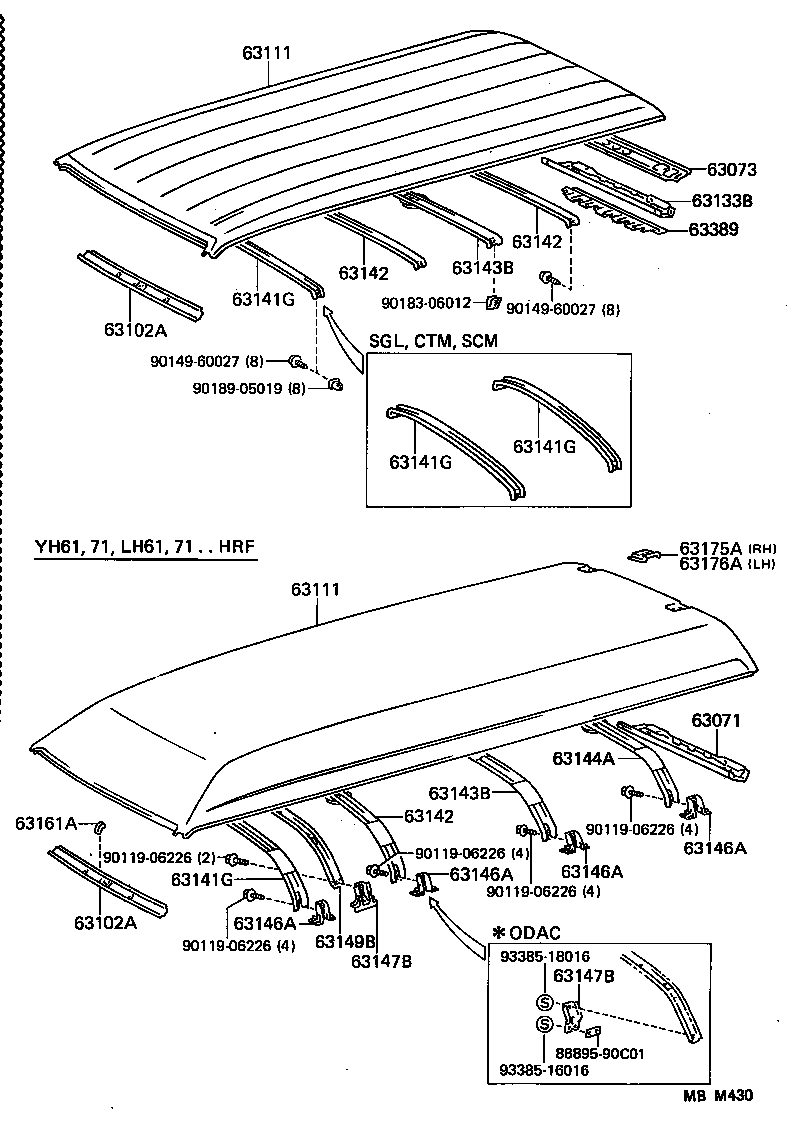

Click highlighted areas on diagram

diagram 63071 63073 63102A 63102A 63111 63111 63133B 63141G 63141G 63141G 63141G 63142 63142 63142 63143B 63143B 63144A 63146A 63146A 63146A 63146A 63147B 63147B 63149B 63161A 63175A 63176A 63389 8889590C01 9011906226 9011906226 9011906226 9011906226 9011906226 9014960027 9014960027 9018306012 9018905019 9338516016 9338518016
Part # Description Qty Price
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-90C01

LH61,71,YH61,71..HRF

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-95J00

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-95J00

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)

 1
63111 - PANEL, ROOF
63111-95J04

LH61,YH61..HRF

 1
63111 - PANEL, ROOF
63111-95J04

LH61,YH61..HRF

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63103-95J07

LH61,71,YH61,71..HRF..06S..ST

ｶﾝﾚｲﾁ ｼﾖｳ

 1
63103-95J07

LH61,71,YH61,71..HRF..06S..ST

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
63103-95J08

LH61,71,YH61,71..HRF..06S

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63103-95J07

LH61,71,YH61,71..HRF..06S..ST

ｶﾝﾚｲﾁ ｼﾖｳ

 1
63103-95J07

LH61,71,YH61,71..HRF..06S..ST

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
63103-95J08

LH61,71,YH61,71..HRF..06S

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63103-95J07

LH61,71,YH61,71..HRF..06S..ST

ｶﾝﾚｲﾁ ｼﾖｳ

 1
63103-95J07

LH61,71,YH61,71..HRF..06S..ST

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
63103-95J08

LH61,71,YH61,71..HRF..06S

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63103-95J07

LH61,71,YH61,71..HRF..06S..ST

ｶﾝﾚｲﾁ ｼﾖｳ

 1
63103-95J07

LH61,71,YH61,71..HRF..06S..ST

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
63103-95J08

LH61,71,YH61,71..HRF..06S

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63104-90C00

LH61,71,YH61,71..(V,WG)..HRF

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63104-90C00

LH61,71,YH61,71..(V,WG)..HRF

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63104-90C00

LH61,71,YH61,71..(V,WG)..HRF

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63105-90C00

LH61,71,YH61,71..HRF..VSG

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63105-90C00

LH61,71,YH61,71..HRF..VSG

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63106-90C00

LH61,71,YH61,71..HRF

 1
63146A - BRACKET, ROOF PANEL REINFORCEMENT, NO.1
63146-90C00

LH61,71,YH61,71..HRF

 4
63146A - BRACKET, ROOF PANEL REINFORCEMENT, NO.1
63146-90C00

LH61,71,YH61,71..HRF

 4
63146A - BRACKET, ROOF PANEL REINFORCEMENT, NO.1
63146-90C00

LH61,71,YH61,71..HRF

 4
63146A - BRACKET, ROOF PANEL REINFORCEMENT, NO.1
63146-90C00

LH61,71,YH61,71..HRF

 4
63161A - SPACER, WINDSHIELD HEADER
63161-95J00

LH61,YH61..HRF

 2
63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH
63175-90C00

LH61,71,YH61,71..HRF

 1
63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH
63176-90C00

LH61,71,YH61,71..HRF

 1
Common parts
88895-90C01
90119-06226
90149-60027
90183-06012
90189-05019
93385-16016
93385-18016
