YH61V-SDTFE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 3Y
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

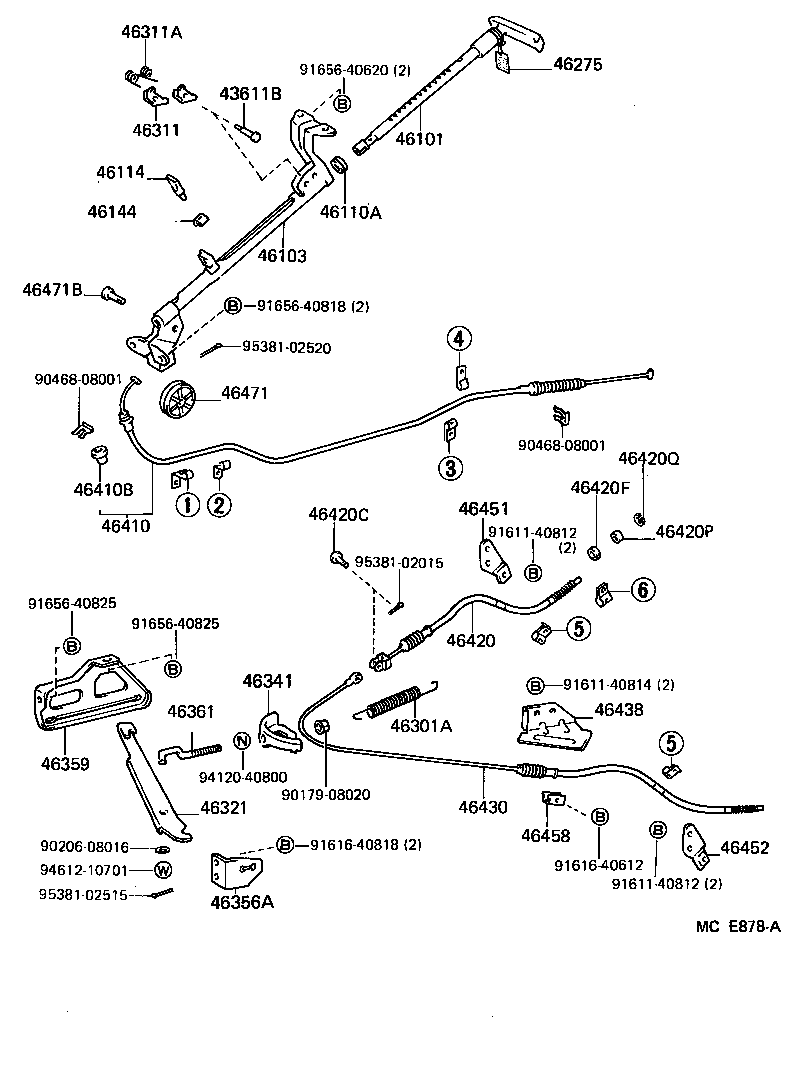

ILLUST NO. 1 OF 2(8708- )WT

Click highlighted areas on diagram

diagram 43611B 46101 46103 46110A 46114 46144 46275 46301A 46311 46311A 46321 46341 46356A 46359 46361 46410 46410B 46420 46420C 46420F 46420P 46420Q 46430 46438 46451 46452 46458 46471 46471B 9017908020 9020608016 9046808001 9046808001 9161140812 9161140812 9161140814 9161640612 9161640818 9165640620 9165640818 9165640825 9165640825 9412040800 9461210701 9538102015 9538102515 9538102520
Part # Description Qty Price
43611B - PIN, PARKING BRAKE PAWL
46313-40010

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 2
46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46120-26050

LH56,66..05S;LH61,YH61..WT;LH51,66,YH51,57..(CTM,DX,SCL,SCM,SGL)..(07S,08S,09S)

 1
46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46103-26081

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-12048

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-20010

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
46275 - PLATE, PARKING BRAKE RELEASE CAUTION
46275-26010

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER)
90506-20007

LH61,71,YH61;LH51,YH50,51,52,62,71..COM,V

 1
46311 - PAWL, PARKING BRAKE
46311-26010

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 2
46311A - SPRING(FOR PARKING BRAKE PAWL)
90508-08106

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
46321 - LEVER, PARKING BRAKE INTERMEDIATE
46321-26050

LH51,YH51..WG;LH61,YH61..WT

 1
46341 - EQUALIZER, PARKING BRAKE
46341-26010

LH61,YH61..WT

 1
46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)
46356-26050

LH61,YH61..WT

 1
46359 - GUIDE, PARKING BRAKE INTERMEDIATE LEVER
46359-26040

LH61,YH61..WT

 1
46361 - ROD, PARKING BRAKE PULL
46361-26010

LH51,YH51..WG;LH61,YH61..WT

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-26220

LH61,YH61..WT

 1
46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE)
90480-20004

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-26110

LH61,YH61..WT

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-06032

LH61,YH61..WT;LH51,YH51,57..WG

 1
46420F - SEAL, DUST(FOR PARKING BRAKE CABLE)
90303-10001

LH61,YH61..WT

 2
46420P - SPACER, PARKING BRAKE
90560-08014

LH61,YH61..WT

 2
46420Q - RING, E(FOR PARKING BRAKE CABLE)
96160-00700

LH61,YH61..WT

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-26070

LH61,YH61..WT

 1
46438 - INSULATOR, PARKING CABLE DUST COVER HEAT
46438-26030

LH61,YH61..WT

 1
46451 - BRACKET, CABLE SUPPORT
46451-26020

LH61,YH61..WT

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452-26010

LH61,YH61..WT

 1
46458 - RETAINER, CABLE
46458-28010

LH61,YH61..WT;LH51,YH51,57..WG

 2
46471 - PULLEY, WIRE
46471-20010

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08017

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
Common parts
90179-08020
90206-08016
90468-08001
91611-40812
91611-40814
91616-40612
91616-40818
91656-40620
91656-40818
91656-40825
94120-40800
94612-10701
95381-02015
95381-02515
95381-02520

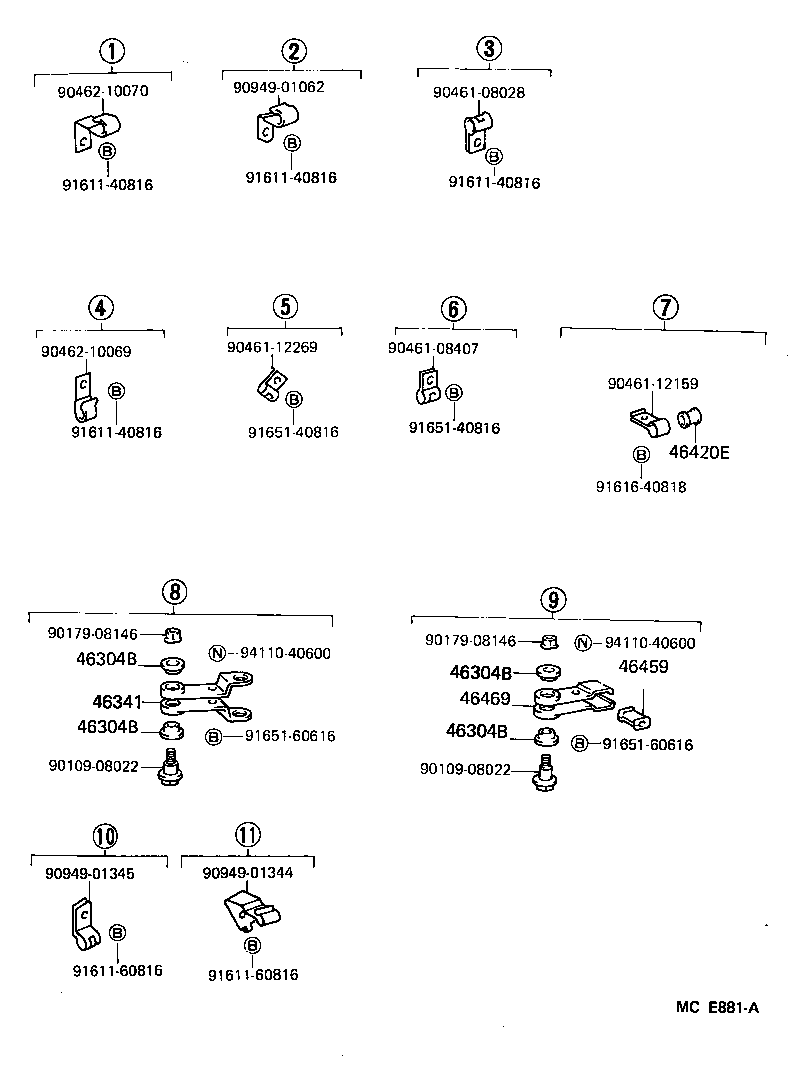

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 46304B 46304B 46304B 46304B 46341 46420E 46459 46469 9010908022 9010908022 9017908146 9017908146 9046108028 9046108407 9046112159 9046112269 9046210069 9046210070 9094901062 9094901344 9094901345 9161140816 9161140816 9161140816 9161140816 9161160816 9161160816 9161640818 9165140816 9165140816 9165160616 9165160616 9411040600 9411040600
Part # Description Qty Price
46341 - EQUALIZER, PARKING BRAKE
46341-26010

LH61,YH61..WT

 1
Common parts
90109-08022
90179-08146
90461-08028
90461-08407
90461-12159
90461-12269
90462-10069
90462-10070
90949-01062
90949-01344
90949-01345
91611-40816
91611-60816
91616-40818
91651-40816
91651-60616
94110-40600
