YH61V-QDTFE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 3Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

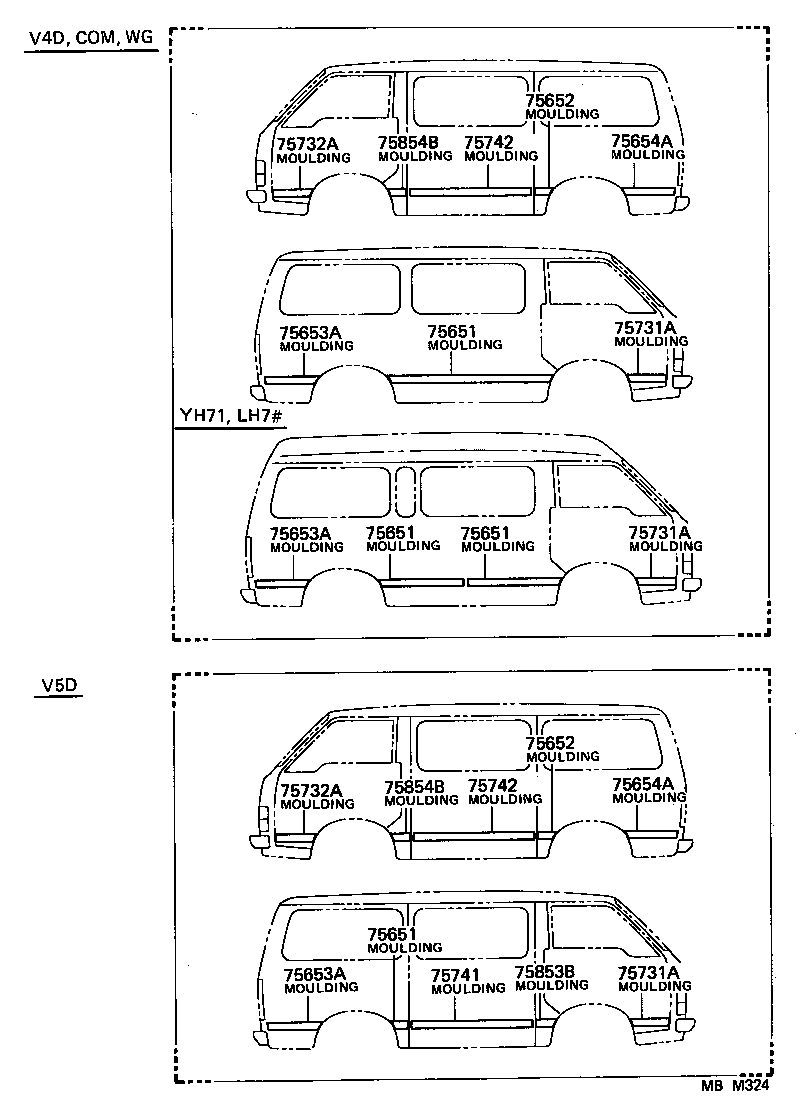

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 75651 75651 75651 75651 75652 75652 75653A 75653A 75653A 75654A 75654A 75731A 75731A 75731A 75732A 75732A 75741 75742 75742 75853B 75854B 75854B
Part # Description Qty Price
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-95J04

LH6#,YH61..V5D..(CD,DX)

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-95J04

LH6#,YH61..V5D..(CD,DX)

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-95J04

LH6#,YH61..V5D..(CD,DX)

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-95J04

LH6#,YH61..V5D..(CD,DX)

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-95J04

LH6#,YH6#..(COM,V)..(CD,DX)

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-95J04

LH6#,YH6#..(COM,V)..(CD,DX)

 1
75653A - MOULDING, QUARTER, OUTSIDE REAR RH
75653-95J04

LH6#,71,YH6#,71..(COM,V)..(CD,DX)

 1
75653A - MOULDING, QUARTER, OUTSIDE REAR RH
75653-95J04

LH6#,71,YH6#,71..(COM,V)..(CD,DX)

 1
75653A - MOULDING, QUARTER, OUTSIDE REAR RH
75653-95J04

LH6#,71,YH6#,71..(COM,V)..(CD,DX)

 1
75654A - MOULDING, QUARTER, OUTSIDE REAR LH
75654-95J04

LH6#,71,YH6#,71..(COM,V)..(CD,DX)

 1
75654A - MOULDING, QUARTER, OUTSIDE REAR LH
75654-95J04

LH6#,71,YH6#,71..(COM,V)..(CD,DX)

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75851-95J02

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75851-95J02

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75851-95J02

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75852-95J02

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75852-95J02

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75855-95J02

LH5#,6#,YH50,61..V5D..(CD,DX)

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75855-95J02

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75855-95J02

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

 1
75853B - MOULDING, CENTER PILLAR, RH
75853-95J01

LH5#,6#,YH50,61..V5D..(CD,DX)

 1
75854B - MOULDING, CENTER PILLAR, LH
75854-95J02

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

 1
75854B - MOULDING, CENTER PILLAR, LH
75854-95J02

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

 1

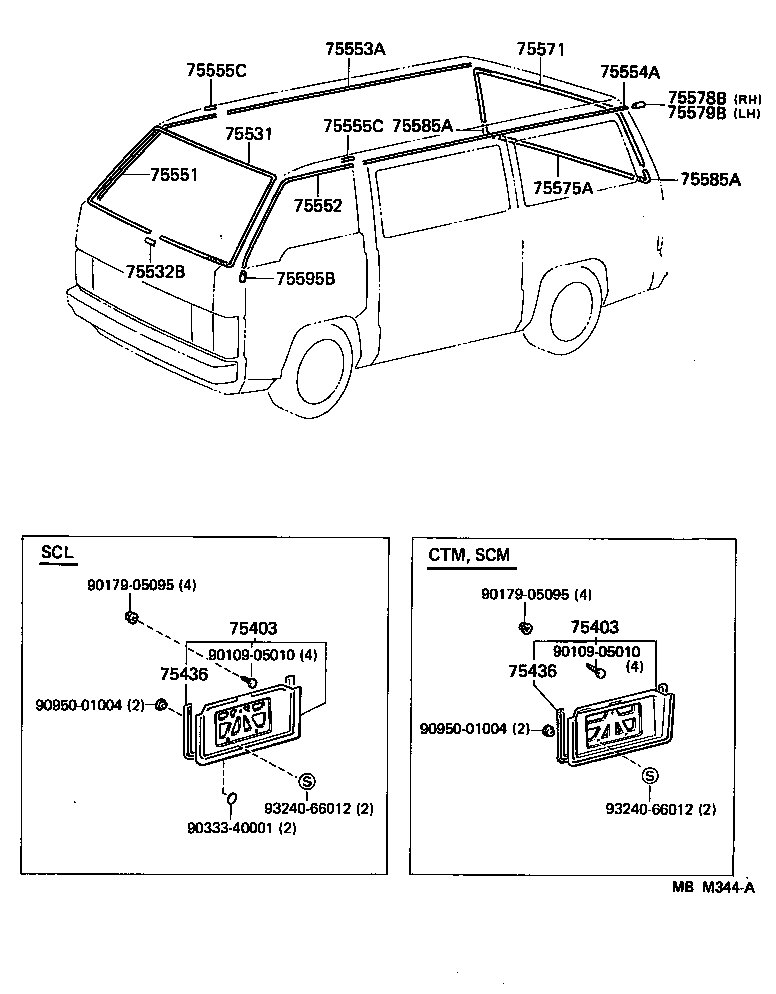

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 75403 75403 75436 75436 75531 75532B 75551 75552 75553A 75554A 75555C 75555C 75571 75575A 75578B 75579B 75585A 75585A 75595B 9010905010 9010905010 9017905095 9017905095 9033340001 9095001004 9095001004 9324066012 9324066012
Part # Description Qty Price
75578B - COVER, ROOF DRIP MOULDING END, REAR RH
75578-95J00

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

 1
75579B - COVER, ROOF DRIP MOULDING END, REAR LH
75579-95J00

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

 1
75595B - COVER, ROOF DRIP SIDE MOULDING END, FRONT
75595-95J00

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

右側

 1
75596-95J00

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

左側

 1
Common parts
90109-05010
90179-05095
90333-40001
90950-01004
93240-66012
