YH61V-QDTE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 3Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )WT

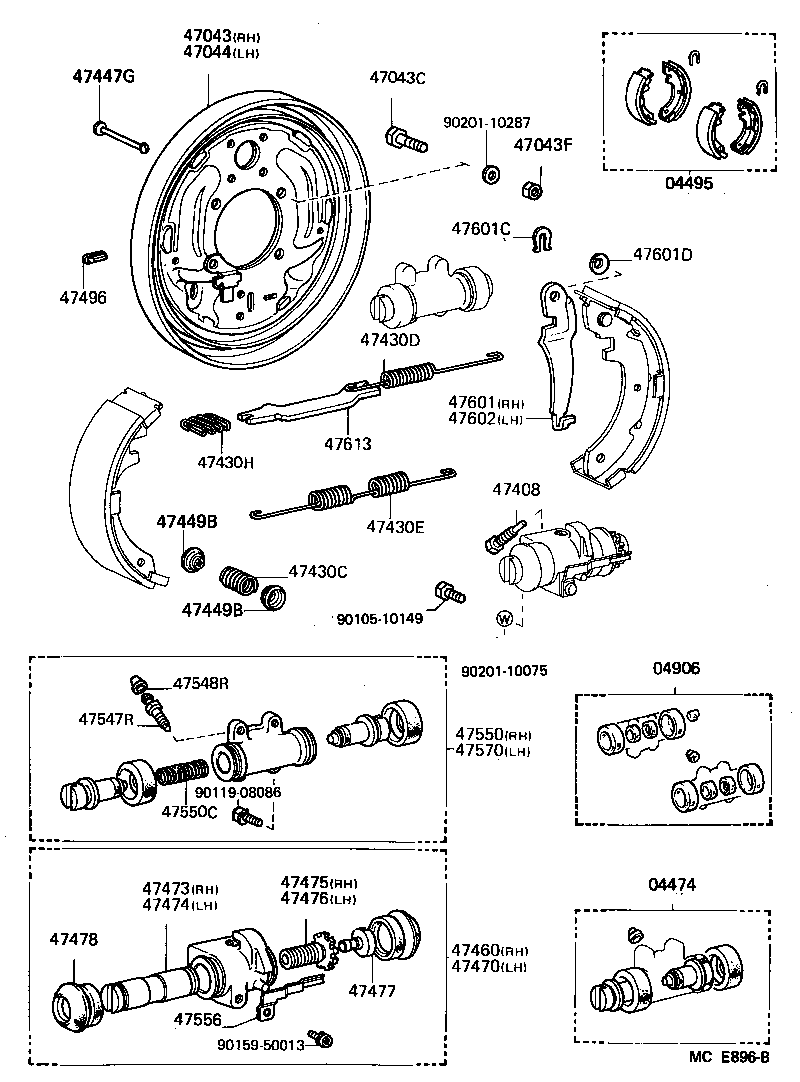

Click highlighted areas on diagram

diagram 04474 04495 04906 47043 47043C 47043F 47044 47408 47430C 47430D 47430E 47430H 47447G 47449B 47449B 47460 47470 47473 47474 47475 47476 47477 47478 47496 47547R 47548R 47550 47550C 47556 47570 47601 47601C 47601D 47602 47613 9010510149 9011908086 9015950013 9020110075 9020110287
Part # Description Qty Price
04474 - CYLINDER KIT, REAR WHEEL
04474-26020

LH61,YH61..WT

 2
04495 - SHOE KIT, REAR BRAKE
04497-26040

LH61,YH61..WT

REBUILT

 1
04495-26030

LH61,YH61..WT

 1
04495-26031

LH61,YH61..WT

 1
04497-26041

LH61,YH61..WT

REBUILT

 1
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-26040

LH61,YH61..WT

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-26031

LH61,YH61..WT

 1
47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90101-10028

LH61,YH61..WT

*10−1.25PX27−18

 8
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90170-10021

LH61,YH61..WT

 8
94110-71000

LH61,YH61..WT

 8
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-26031

LH61,YH61..WT

 1
47408 - BOLT SUB-ASSY, RETRACTING SPRING CLAMP
47408-30020

LH61,YH61..WT

 2
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90501-20756

LH61,YH61..WT;LH51,61,71,YH51,61..WG

 4
47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-23010

LH61,YH61..WT

 2
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-26159

LH61,YH61..WT

 2
47430H - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
90504-14003

LH61,YH61..WT

 1
47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-20010

LH51,61,71,YH50,51,52,6#,71..COM,V

 4
47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 8
47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 8
47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47460-28011

LH61,YH61..WT

 1
47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47470-28011

LH61,YH61..WT

 1
47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47473-28010

LH61,YH61..WT

 1
47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47474-28010

LH61,YH61..WT

 1
47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE
47475-28010

LH61,YH61..WT

 1
47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47476-28010

LH61,YH61..WT

 1
47477 - PIECE, SHOE SUPPORT (FOR REAR BRAKE)
47477-28010

LH61,YH61..WT

 1
47478 - BOOT, ADJUSTER CYLINDER(FOR REAR BRAKE)
47478-28010

LH61,YH61..WT

 2
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-36010

LH61,YH61..WT

 2
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-26010

LH51,61,71,YH50,51,52,6#,71..COM,V

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-26070

LH61,YH61..WT

 1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90501-07006

LH61,YH61..WT

 2
47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47555-28010

LH61,YH61..WT

右側

 1
47556-28010

LH61,YH61..WT

左側

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-26070

LH61,YH61..WT

 1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47611-26040

LH61,YH61..WT

 1
47601C - WASHER, C(FOR REAR BRAKE)
90213-07010

LH61,YH61..WT

厚さ=1.6

 1
47601D - WASHER, WAVE(FOR REAR BRAKE)
90206-10059

LH61,YH61..WT

 1
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47612-26040

LH61,YH61..WT

 1
47613 - STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)
47613-26010

LH61,YH61..WT

 1
Common parts
90105-10149
90119-08086
90159-50013
90201-10075
90201-10287
