YH61V-QDG (1985)
Toyota Hiace Van,Wagon
Production
Aug 1985
-
Aug 1987
Engine
3Y 3YP
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )LH51,61,71

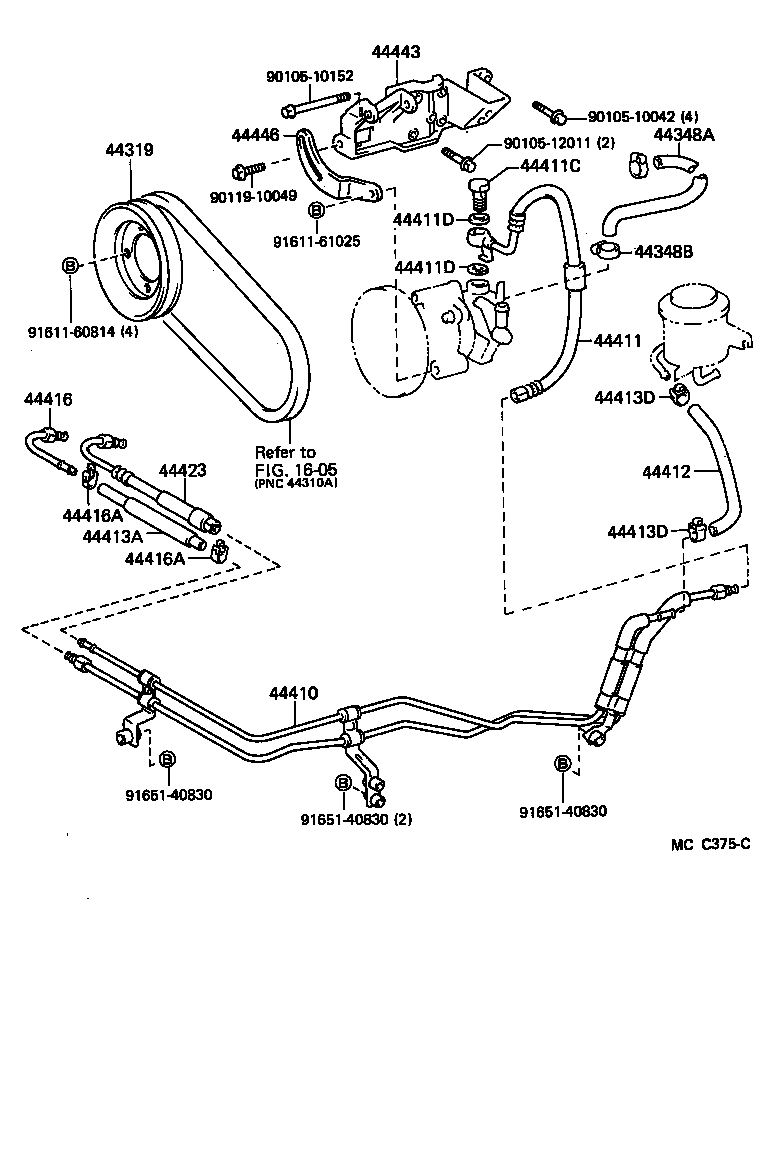

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-30020 |
LH5#,6#,7# |
1 | ||
| 44319-30030 |
LH5#,6#,71 |
1 | ||
| 44319-28013 |
YH5#,6#,71 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-26010 |
LH5#,6#,7# |
1 | ||
| 44348-26011 |
LH51,61,71 |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
LH5#,6#,7# |
2 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-26022 |
LH51,61,71 |
1 | ||
| 44410-26010 |
YH5#,61,71 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-26011 |
LH51,61,71 |
1 | ||
| 44411-26010 |
LH5#,6#,7# |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16005 |
LH5#,6#,71 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16242 |
LH51,61,71 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16242 |
LH51,61,71 |
2 | ||
| 44412 - HOSE, RETURN | ||||
| 90445-18079 |
LH50,51,60,61,7# |
1 | ||
| 44412-26010 |
YH5#,6#,71 |
1 | ||
| 44413A - HOSE(FOR RETURN TUBE OUTLET) | ||||
| 90447-18011 |
LH50,51,60,61,7# |
1 | ||
| 90447-18010 |
YH5#,6#,71 |
1 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
LH50,51,60,61,7#,YH5#,6#,71 |
2 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
LH50,51,60,61,7#,YH5#,6#,71 |
2 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-26010 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 44416A - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 44416A - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-26010 |
YH5#,6#,71 |
1 | ||
| 44423-26020 |
LH50,51,60,61,7# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-28021 |
YH51,52,6#,71 |
1 | ||
| 44443-26010 |
LH51,61,71 |
1 | ||
| 44443-22020 |
LH5#,6#,7# |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-30050 |
LH5#,6#,7# |
1 | ||
| 44446-26010 |
LH5#,6#,71 |
1 | ||
| Common parts | ||||
| 90105-10042 | ||||
| 90105-10152 | ||||
| 90105-12011 | ||||
| 90119-10049 | ||||
| 91611-60814 | ||||
| 91611-61025 | ||||
| 91651-40830 | ||||
| Linked diagrams | ||||
| 1605 | ||||
