YH61V-QDG (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 3Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

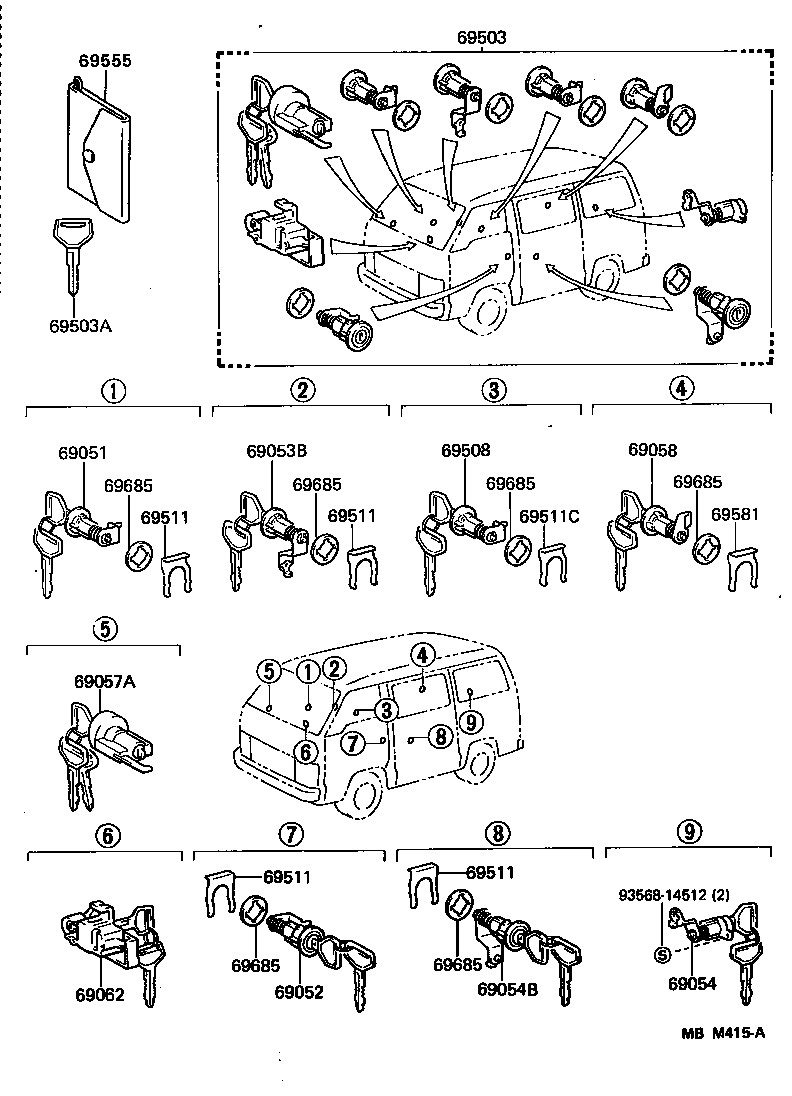

Click highlighted areas on diagram

diagram 69051 69052 69053B 69054 69054B 69057A 69058 69062 69503 69503A 69508 69511 69511 69511 69511 69511C 69555 69581 69685 69685 69685 69685 69685 69685 9356814512
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95J03

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95J03

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-95J03

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
69054B - CYLINDER & KEY SET, SLIDE DOOR LOCK, LH
69054-95J03

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95J06

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-95J00

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S)

 1
69503 - CYLINDER SET, LOCK
69503-95J20

LH66..DX..08S;LH51,61,YH61..(COM,WG)..(CTM,DX);LH71,YH51,52,62,71..(4HC,5F,5H)..(CD,CTM,DX,GL);LH5#,6#,YH50,61..V4D..(CD,DX,GL)..(03S,05S,06S,09S)

 1
69503A - KEY, BLANK
90999-00129

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00066

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

ﾏｽﾀｰｷｰ

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

LH66..(DX,SGL)..08S;LH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,10S,15S

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

LH66..(DX,SGL)..08S;LH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,10S,15S

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

LH66..(DX,SGL)..08S;LH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,10S,15S

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

LH66..(DX,SGL)..08S;LH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,10S,15S

 3
69581 - RETAINER, FUEL FILLER LID CYLINDER
69512-87001

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S)

 1
69685 - PAD, LOCK CYLINDER
69513-32010

LH66..DX..08S;LH51,61,YH61..(COM,WG)..(CTM,DX);LH71,YH51,52,62,71..(4HC,5F,5H)..(CD,CTM,DX,GL);LH5#,6#,YH50,61..V4D..(CD,DX,GL)..(03S,05S,06S,09S)

 4
69685 - PAD, LOCK CYLINDER
69513-32010

LH66..DX..08S;LH51,61,YH61..(COM,WG)..(CTM,DX);LH71,YH51,52,62,71..(4HC,5F,5H)..(CD,CTM,DX,GL);LH5#,6#,YH50,61..V4D..(CD,DX,GL)..(03S,05S,06S,09S)

 4
69685 - PAD, LOCK CYLINDER
69513-32010

LH66..DX..08S;LH51,61,YH61..(COM,WG)..(CTM,DX);LH71,YH51,52,62,71..(4HC,5F,5H)..(CD,CTM,DX,GL);LH5#,6#,YH50,61..V4D..(CD,DX,GL)..(03S,05S,06S,09S)

 4
69685 - PAD, LOCK CYLINDER
69513-32010

LH66..DX..08S;LH51,61,YH61..(COM,WG)..(CTM,DX);LH71,YH51,52,62,71..(4HC,5F,5H)..(CD,CTM,DX,GL);LH5#,6#,YH50,61..V4D..(CD,DX,GL)..(03S,05S,06S,09S)

 4
69685 - PAD, LOCK CYLINDER
69513-32010

LH66..DX..08S;LH51,61,YH61..(COM,WG)..(CTM,DX);LH71,YH51,52,62,71..(4HC,5F,5H)..(CD,CTM,DX,GL);LH5#,6#,YH50,61..V4D..(CD,DX,GL)..(03S,05S,06S,09S)

 4
69685 - PAD, LOCK CYLINDER
69513-32010

LH66..DX..08S;LH51,61,YH61..(COM,WG)..(CTM,DX);LH71,YH51,52,62,71..(4HC,5F,5H)..(CD,CTM,DX,GL);LH5#,6#,YH50,61..V4D..(CD,DX,GL)..(03S,05S,06S,09S)

 4
Common parts
93568-14512
