YH61V-QDFE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 3Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

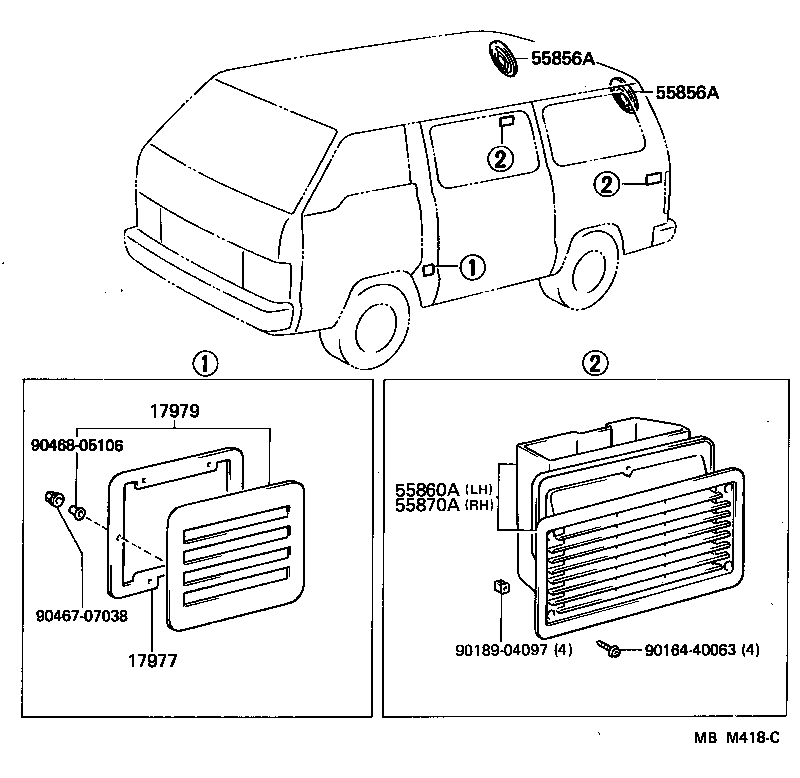

Click highlighted areas on diagram

diagram 17977 17979 55856A 55856A 55860A 55870A 9016440063 9018904097 9046707038 9046805106
Part # Description Qty Price
17979 - ORNAMENT, COOL AIR
17979-95J01

2L..LH66..05S;2L..LH66..(DX,SGL)..08S;2L#,2Y,3Y#..LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL

 1
55856A - LOUVER, REAR VENTILATOR
55856-95J00

LH66..DX..08S;LH5#,6#,YH50,51,52,6#..SRF..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)

 2
55856A - LOUVER, REAR VENTILATOR
55856-95J00

LH66..DX..08S;LH5#,6#,YH50,51,52,6#..SRF..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)

 2
55860A - DUCT ASSY, REAR VENTILATOR ORNAMENT, LH
55860-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
55870A - DUCT ASSY, REAR VENTILATOR ORNAMENT, RH
55870-95J00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
Common parts
90164-40063
90189-04097
90467-07038
90468-05106
